(14) Install the K1 (1) clutch onto the B1 clutch
(Fig. 47).
(15) Install drive shaft with clutch K2 (6) and
front gear set (1) (Fig. 47).
(16) Install front washer (5) and thrust needle
bearing (4) (Fig. 47).
(17) Install output shaft with center and rear gear
set and clutch K3 (3) (Fig. 47).
(18) Using grease, install both Teflon rings in the
groove at the rear of the output shaft so that the
joint stays together.
(19) Mount transmission housing on converter
housing.
(20) Screw in Torx socket bolts through the trans-
mission housing into the converter housing. Tighten
the bolts to 20 N·m (177 in.lbs.).
(21) Measure end-play between park pawl gear
and grooved ball bearing in order to select the proper
geartrain end-play shim.

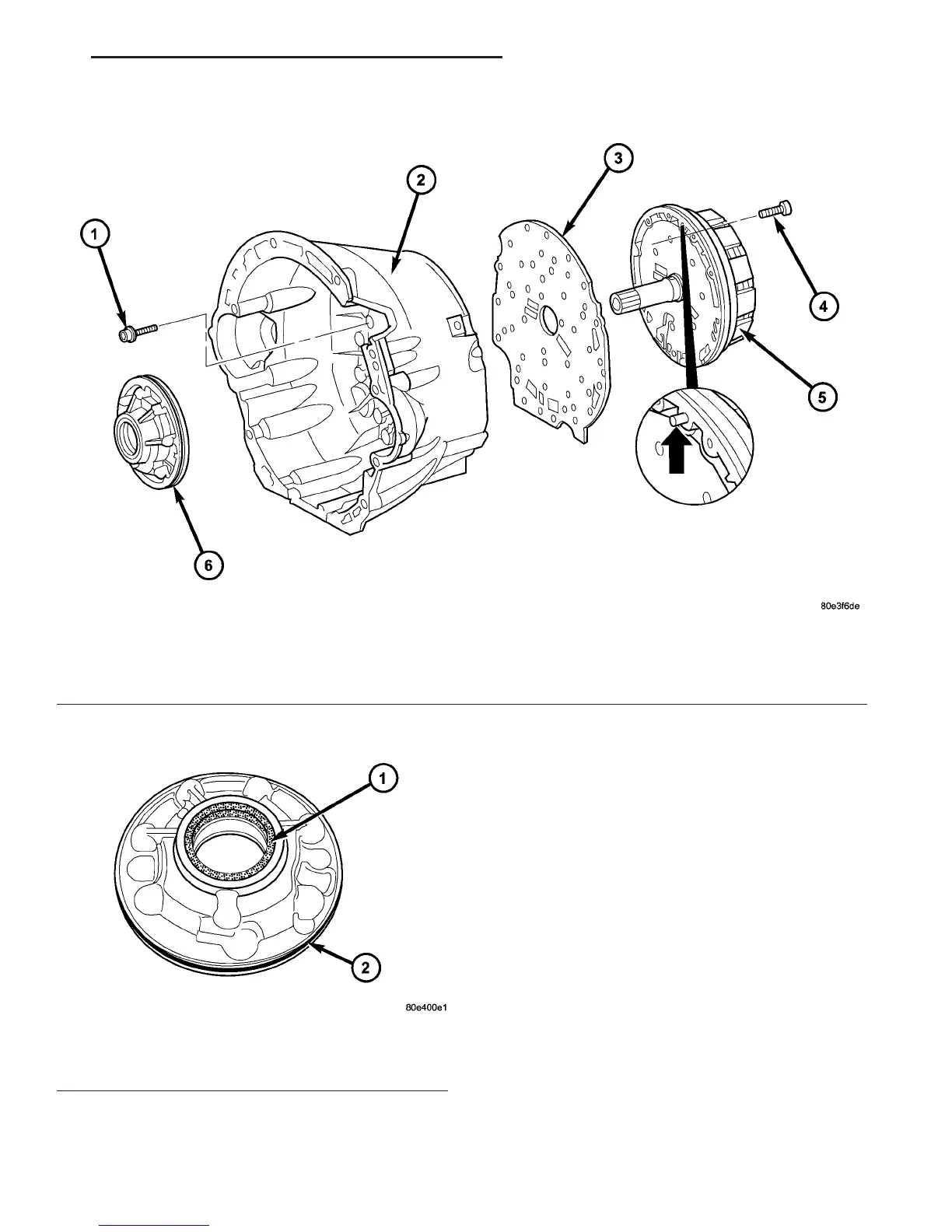

Fig. 45 Install Holding Clutch B1 and Oil Pump
1 - BOLTS - M6X32 4 - BOLTS - M8X35
2 - CONVERTER HOUSING 5 - HOLDING CLUTCH B1
3 - INTERMEDIATE PLATE 6 - OIL PUMP
Fig. 46 Install New Oil Pump Seals
1 - INNER OIL SEAL
2 - OUTER OIL SEAL
VA AUTOMATIC TRANSMISSION - NAG1 21 - 37
AUTOMATIC TRANSMISSION - NAG1 (Continued)
