393
Practical hints
Replacing SmartKey batteries
SmartKey
Replacement batteries: Lithium, type
CR 2025 or equivalent.
왘 Remove the mechanical key
(
컄 page 386).

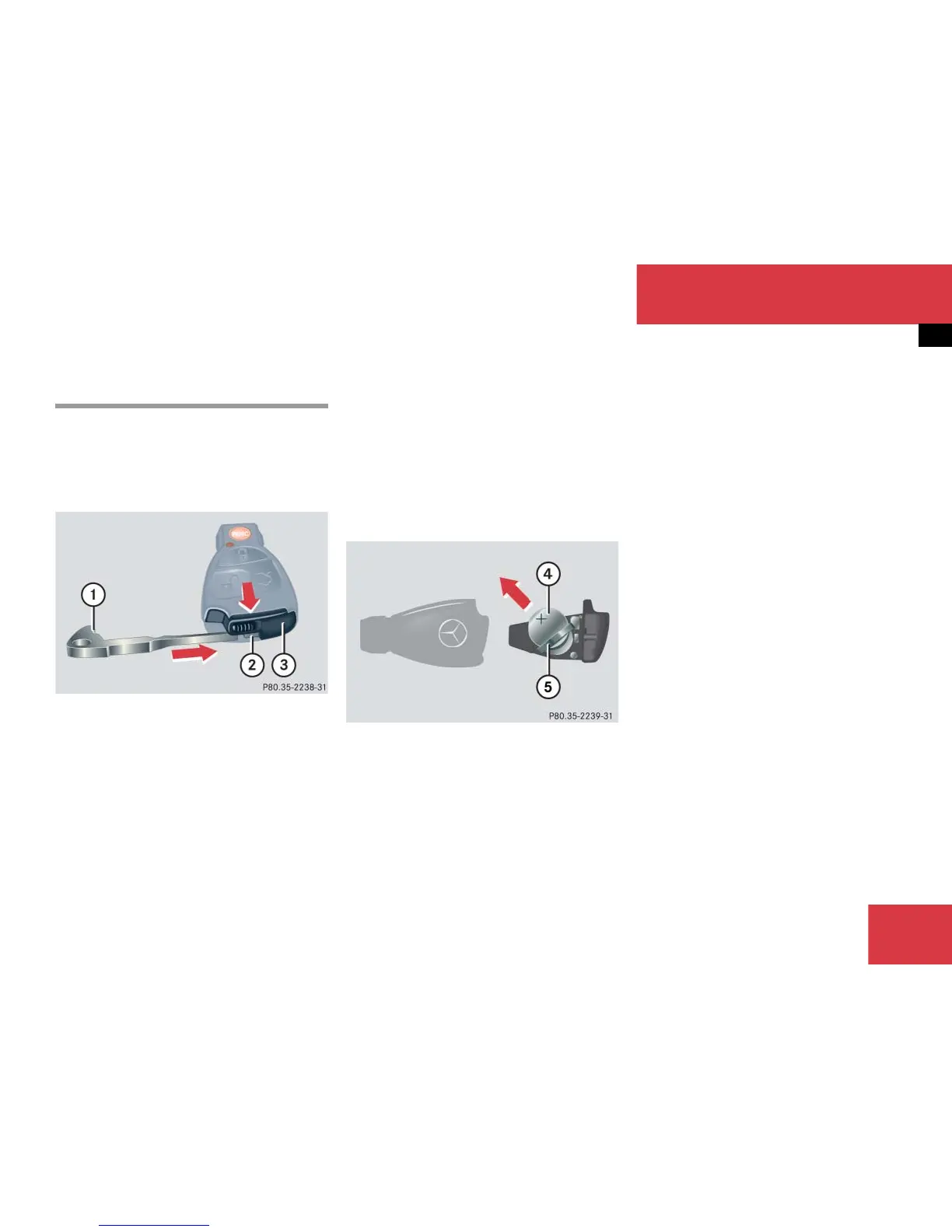

1 Mechanical key
2 Slide
3 Battery compartment
왘 Insert the mechanical key 1 in direc-
tion of arrow in side opening.
왘 Using mechanical key 1, push gray
slide 2 to unlatch battery compart-
ment 3.
왘 Pull battery compartment 3 out of the
housing in direction of arrow.
4 Battery
5 Contact spring
왘 Remove the batteries 4 in direction of
arrow.
왘 Using a lint-free cloth, insert new
batteries 4 under the contact
spring 5 with the positive terminal (+)
side facing up.
왘 Return battery compartment 3 into
housing until it locks into place.
왘 Slide mechanical key 1 back into the
SmartKey.
왘 Check the operation of the SmartKey.
