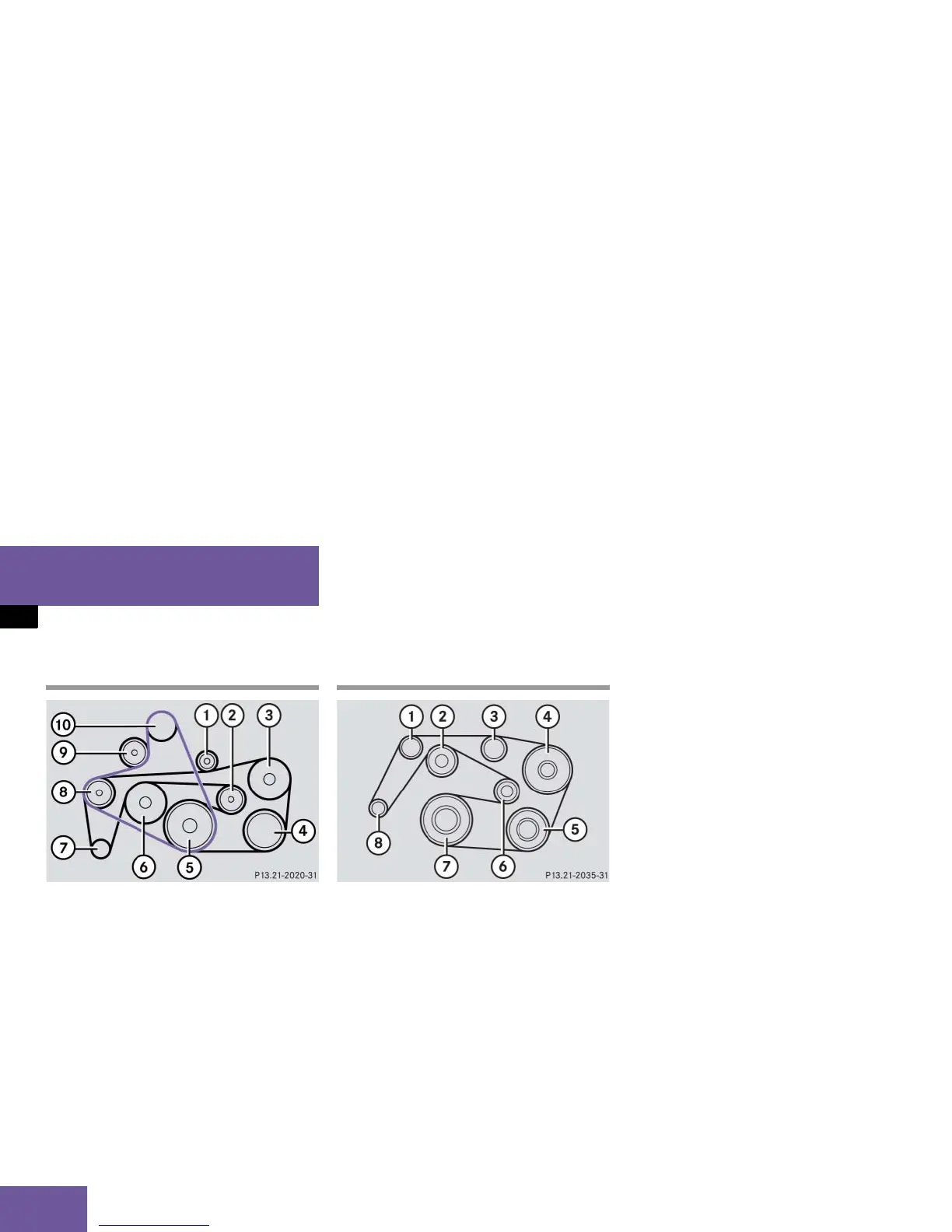

Layout of poly-V-belt drive
E55AMG
The E 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black).
1 Idler pulley
2 Automatic belt tensioner
3 Power steering pump
4 Air conditioning compressor
5 Crankshaft
6 Coolant pump
7 Generator (alternator)
8 Idler pulley
9 Automatic belt tensioner
a Super charger
E320 CDI
1 Idler pulley
2 Coolant pump
3 Idler pulley
4 Power steering pump
5 Air conditioning compressor
6 Automatic belt tensioner
7 Crankshaft
8 Generator (alternator)
