Fuses
Notes on changing fuses
The fuses in your vehicle serve to close down
faulty circuits. If a fuse blows, all the compo-
nents on the circuit and their functions will
fail.
Blown fuses must be replaced with fuses of
the same rating, which you can recognise by
the colour and value. The fuse ratings are lis-
ted in the fuse allocation chart. A Mercedes-
Benz Service Centre will be happy to advise
you.
G
Risk of fire
Only use fuses that have been approved for
Mercedes-Benz vehicles and which have
the correct fuse rating for the systems con-
cerned. Do not attempt to repair or bridge
faulty fuses. Otherwise, a circuit overload
could cause a fire. Have the cause traced
and rectified at a qualified specialist work-
shop, e.g. a Mercedes-Benz Service Centre.
If the newly inserted fuse also blows, have the
cause traced and rectified at a qualified spe-
cialist workshop, e.g. a Mercedes-Benz
Service Centre.
!
Only use fuses that have been approved
for Mercedes-Benz vehicles and which
have the correct fuse rating for the system
concerned. Otherwise, components or sys-
tems could be damaged.
The fuses are located in the main fuse box in
the front-passenger footwell.
Fuse allocation chart
The fuse allocation chart is in the main fuse
box in the front-passenger footwell.
Before changing a fuse
X
Park the vehicle.
X
Switch off all electrical consumers.
X
Remove the key from the ignition lock.

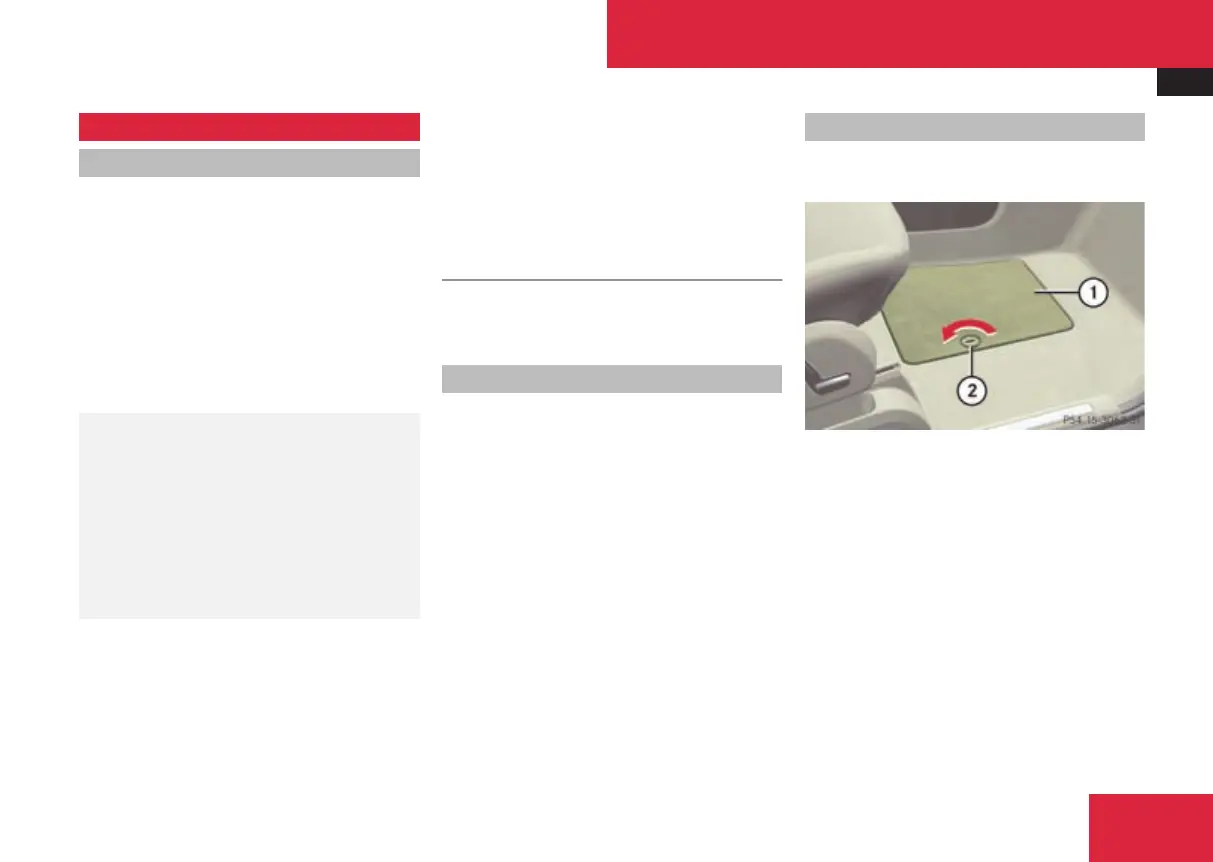

Main fuse box
The main fuse box is in the front-passenger
footwell in front of the seat.
1
Cover
2
Retaining screw
X
Remove the footmats*.
X
Turn retaining screw 2 anti-clockwise, e.g.
with a coin.
X
Lift up cover 1.
X
Remove the cover mat from the battery.
Practical advice
* optional
