Attachment and mounting areas

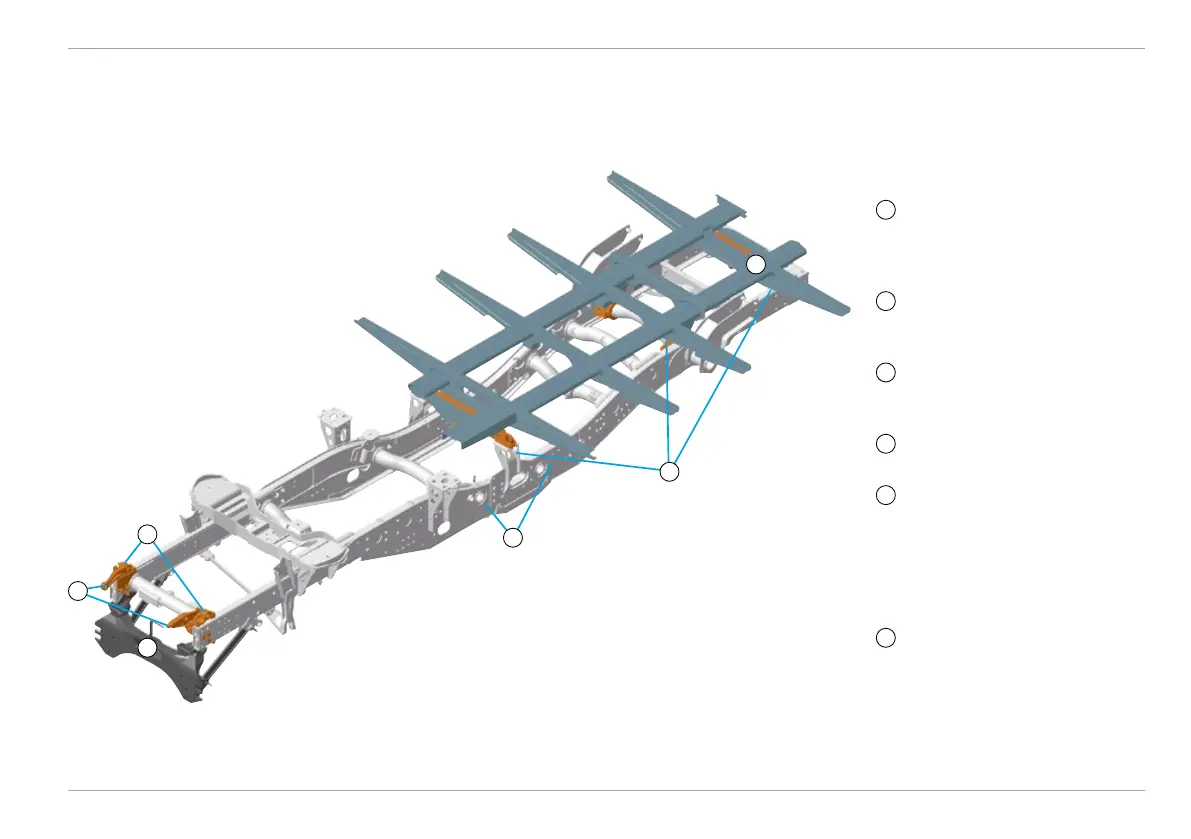

Locations of attachment and mounting areas
Attachment and mounting via:
1
Standardised front mounting
plate, size 3 [CP3], e.g. for
earth mover, snow plough,
front-mounted sweeper
2
Front mounting brackets [CA2],
e.g. compressor, emergency
power generator
3
Cable winch bracket
[CA2]+[CH5], e.g. front cable
winch
4
Frame mounting brackets, e.g.
frame trussing of slope support
5
Attachment fixtures for non-MB
bodies [CD5], e.g. box, platform
Mounting brackets for heavy
attachments which can raise
the vehicle [CA9], e.g. crane,
elevating work platform
6
Floor assembly for special
bodies [P61], e.g. box, platform
1
2
3
4
5
6
Technical Manual
Mercedes-Benz Special Trucks
77
Attachment and mounting areas
