Output Module - Extension Module Type mcr R04xx. Operation and Maintenance Manual.
Strona 9 z 19
10. Wiring diagrams

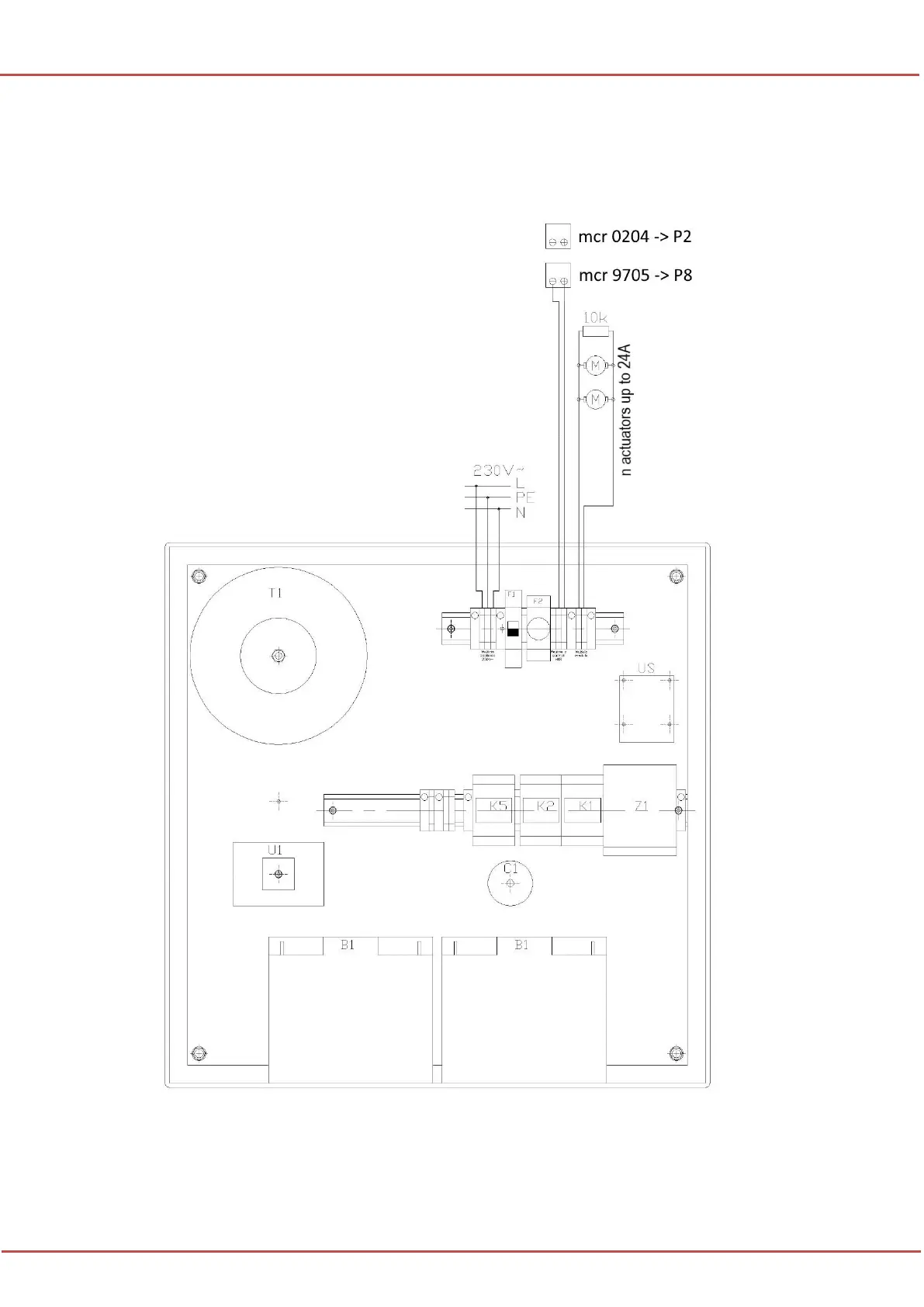

Fig. 2. Wiring diagram for mcr R0424-1 module for use with smoke vent actuators.
