7. Wiring diagrams

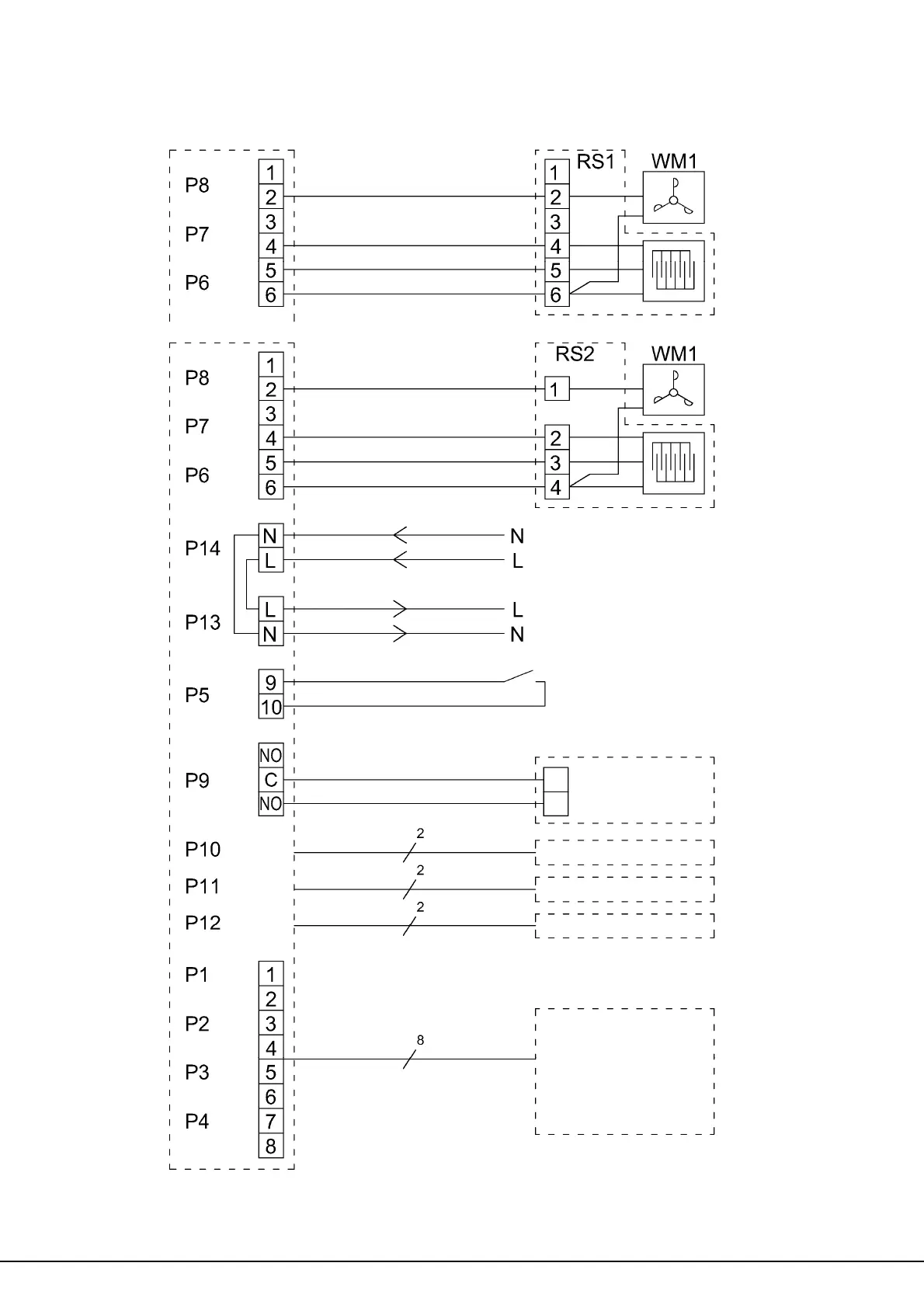

Drawing 1. Connection for the MCRP 054 weather monitoring unit with a RS2-WM1 sensor .
output 1:
MCR9705/MCR0204
wind/rain
230 V, 50 Hz
power suppy
output 230 V, 50 Hz
max 5 A
vent open sensor
remote control module
(option)
wind sensor WM
heating of the rain sensor
rain sensor
ground
wind sensor WM
heating of the rain sensor
rain sensor
ground
connection to
RS1-WM1 wind/rain
sensor unit
connection to
RS2-WM1 wind/rain
sensor unit
MCRP054
MCRP054
output 2
output 3
output 4
