Section 5 - Maintenance
Page 92 90-8M0074347 eng OCTOBER 2012
IMPORTANT: To ensure that the MerCathode reference electrode is not damaged, do not paint or pressure wash.

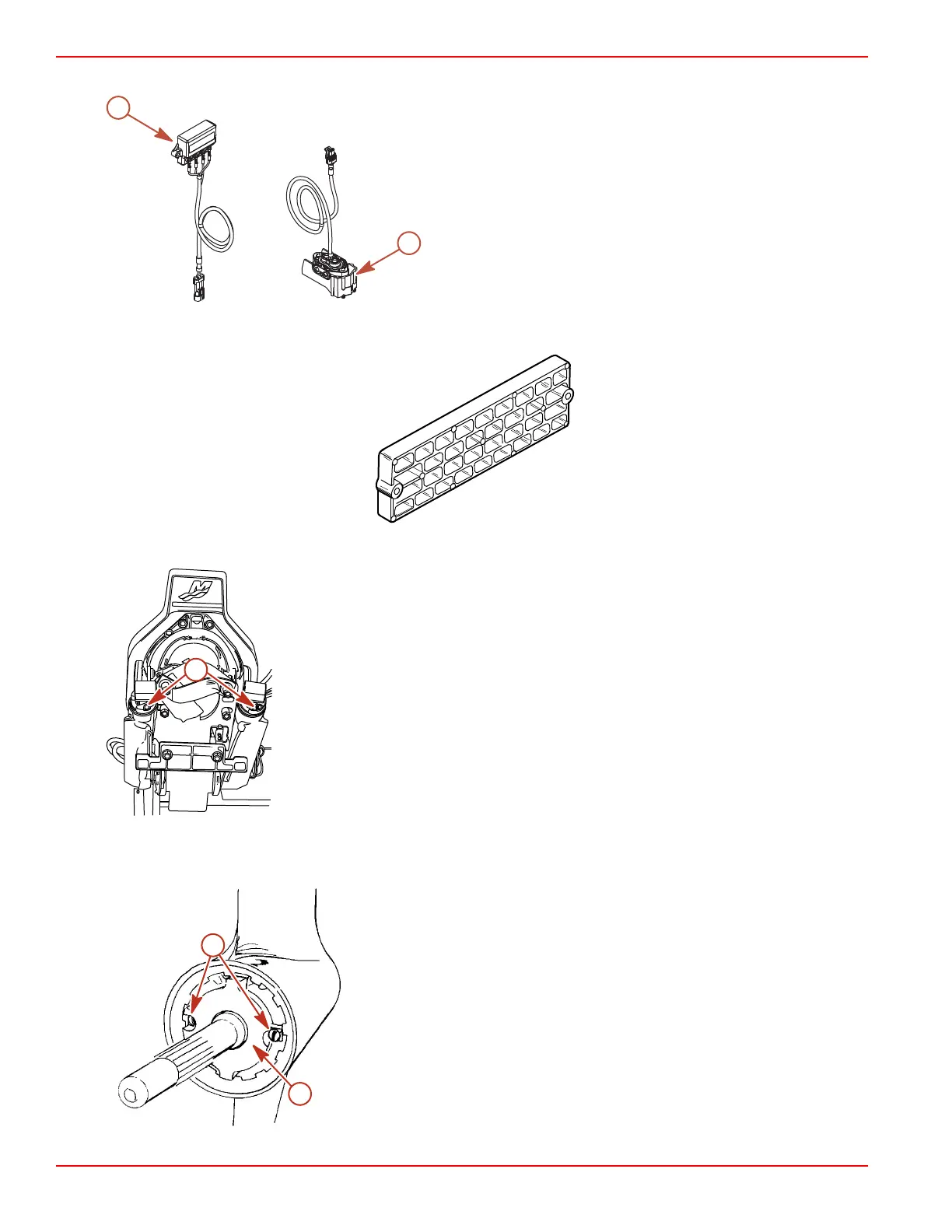

a - MerCathode controller
b - MerCathode assembly
Anode Kit (if equipped) ‑ Mounted to the boat transom.
5642
Trim Cylinder Anodes ‑ Mounted on each trim cylinder.
a - Trim cylinder anodes
Bearing Carrier Anode (Alpha) ‑ Located in front of the propeller, between the front side of the propeller and the gear
housing.
a - Bearing carrier anode
b - Screws
6206
a
b
a
7460
a
b
7461
