Section 5 - Maintenance
90-8M0074347 eng OCTOBER 2012 Page 81

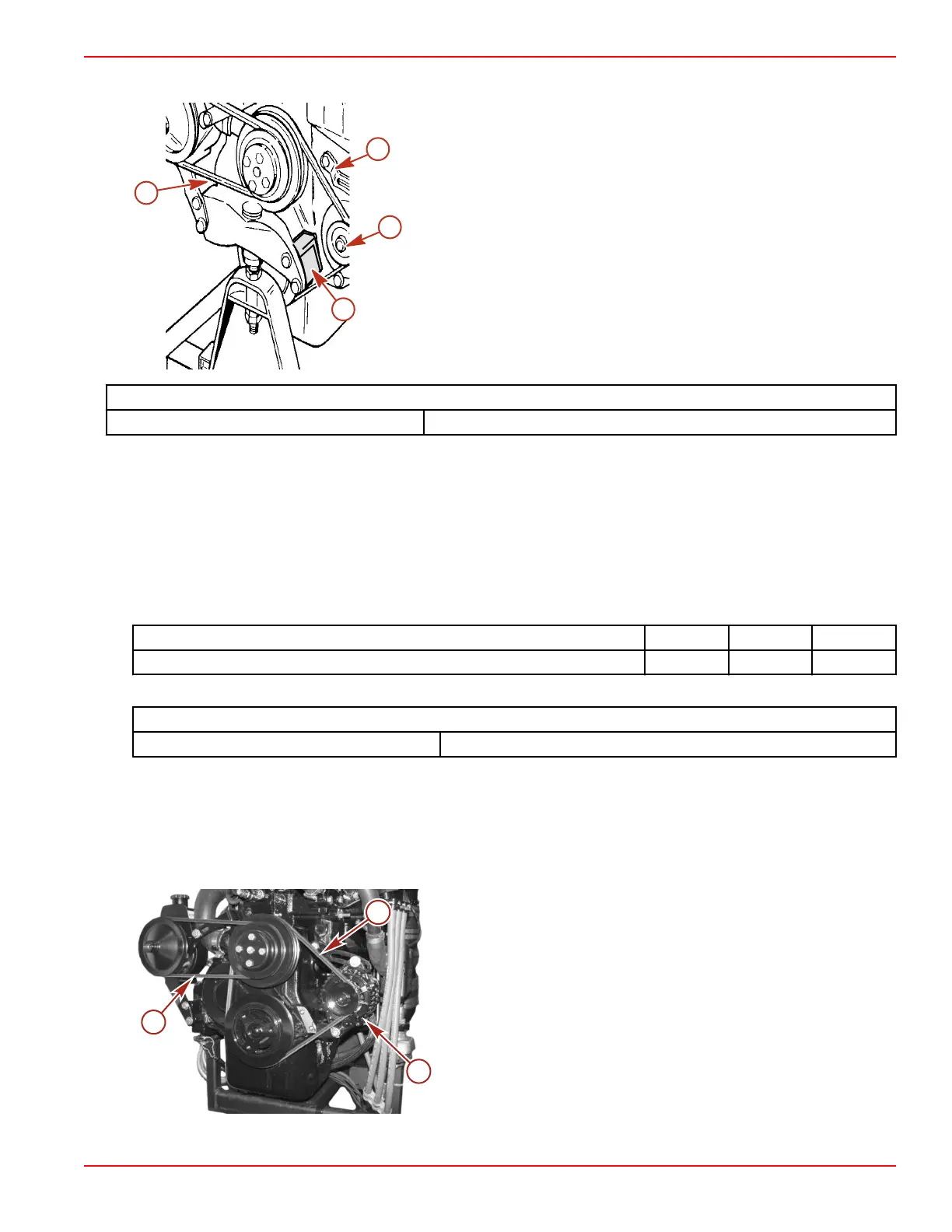

3. Install new drive belt on pulleys. Adjust tension.
a - Power steering belt
b - Spacer block
c - Alternator
d - Alternator belt
Description
Deflection 6 mm ( 1/4 inches)
Alternator Belt
1. Remove the power steering belt, if equipped.
2. Remove the two port side, front engine mount bracket assembly screws and washers.
3. Remove the spacer block between the bracket assembly and the engine block. It may be necessary to tape gently on the
spacer to allow removal.
4. Loosen the alternator. Remove and replace the alternator belt.
5. Replace the spacer block between the bracket assembly and the engine block. Install the two screws using the flat and
lockwashers removed previously. Torque the two spacer block screws.
Description
Nm lb. in. lb. ft.
Spacer block screws 28 21
6. Install power steering belt, if equipped. Adjust tension of both drive belts.
Description
Deflection 6 mm ( 1/4 inches)
Replacing - Side Mount Models
Power Steering Pump Drive Belt, if equipped
1. Loosen power steering pump attaching bolts and mounting bolts.
2. Pivot power steering pump toward engine, as required, until belt can be removed.
3. Install new drive belt on pulleys. Adjust the tension to the specification following.
a - Power steering belt
b - Alternator belt
c - Alternator
a
d
c
b
7172
