Section 2 - Getting to Know Your Power Package
Page 32 90-8M0074347 eng OCTOBER 2012

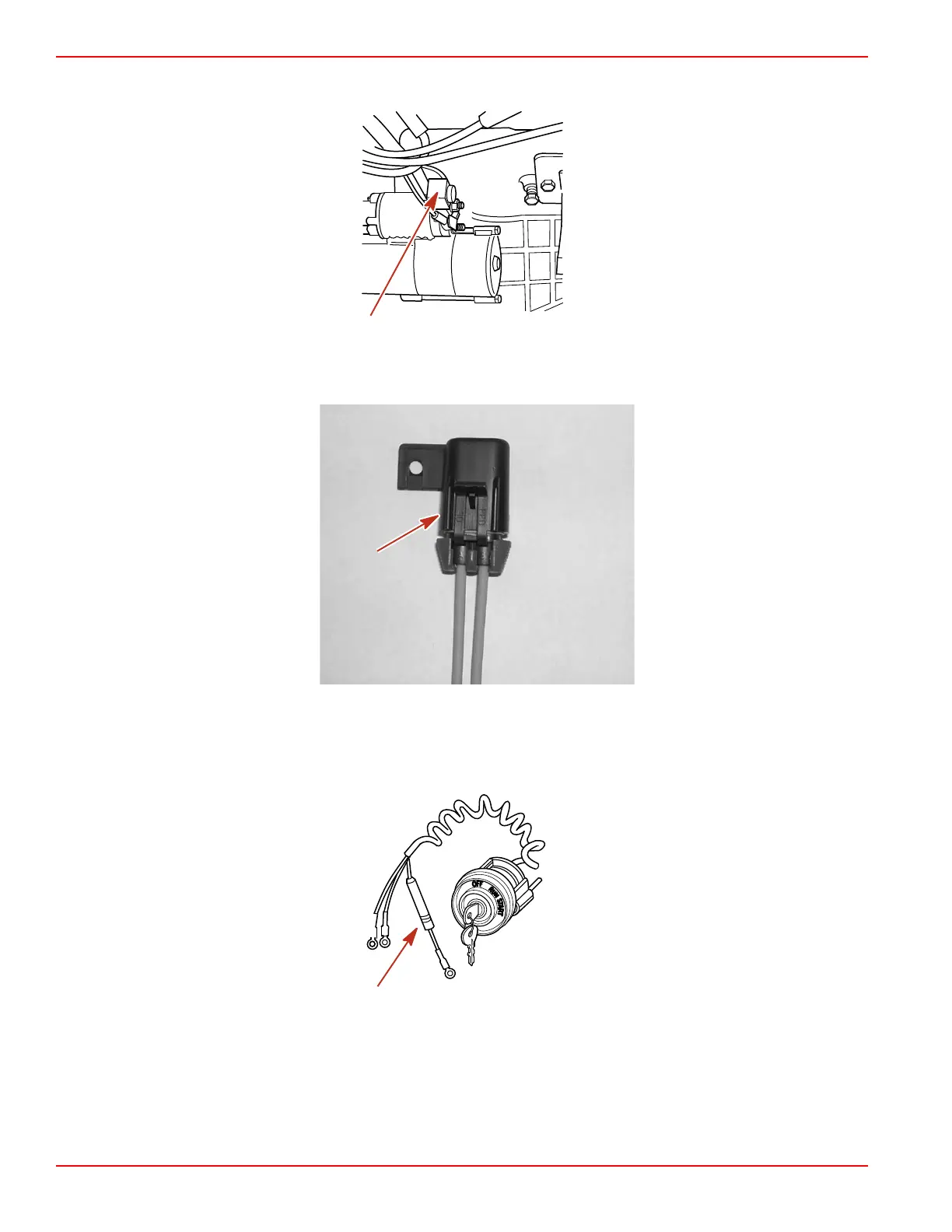

A 90‑amp fuse, located on the large post of the starter solenoid, protects the engine wiring harness if an electrical overload
occurs.
mc74907-1
Engine wiring harness fuse
A 15‑amp accessory fuse is located on the rear of the engine. This fuse protects the accessory circuits. A 20‑amp fuse is
located on the top of the engine to protect the TKS circuit.
7524
Accessory fuse
A 20‑amp fuse may be located in the ignition switch "I" terminal lead to protect the electrical system. Check for an open fuse or
open circuit breaker if the ignition key is turned to the start position and nothing happens.
mc70525-1
Ignition switch fuse—typical
