5. Remove and discard the filter element and the O-rings.
6. Coat the new O-rings with transmission fluid.
7. Install the new O-rings and filter element.
27662
50975
a
b
c
b
a

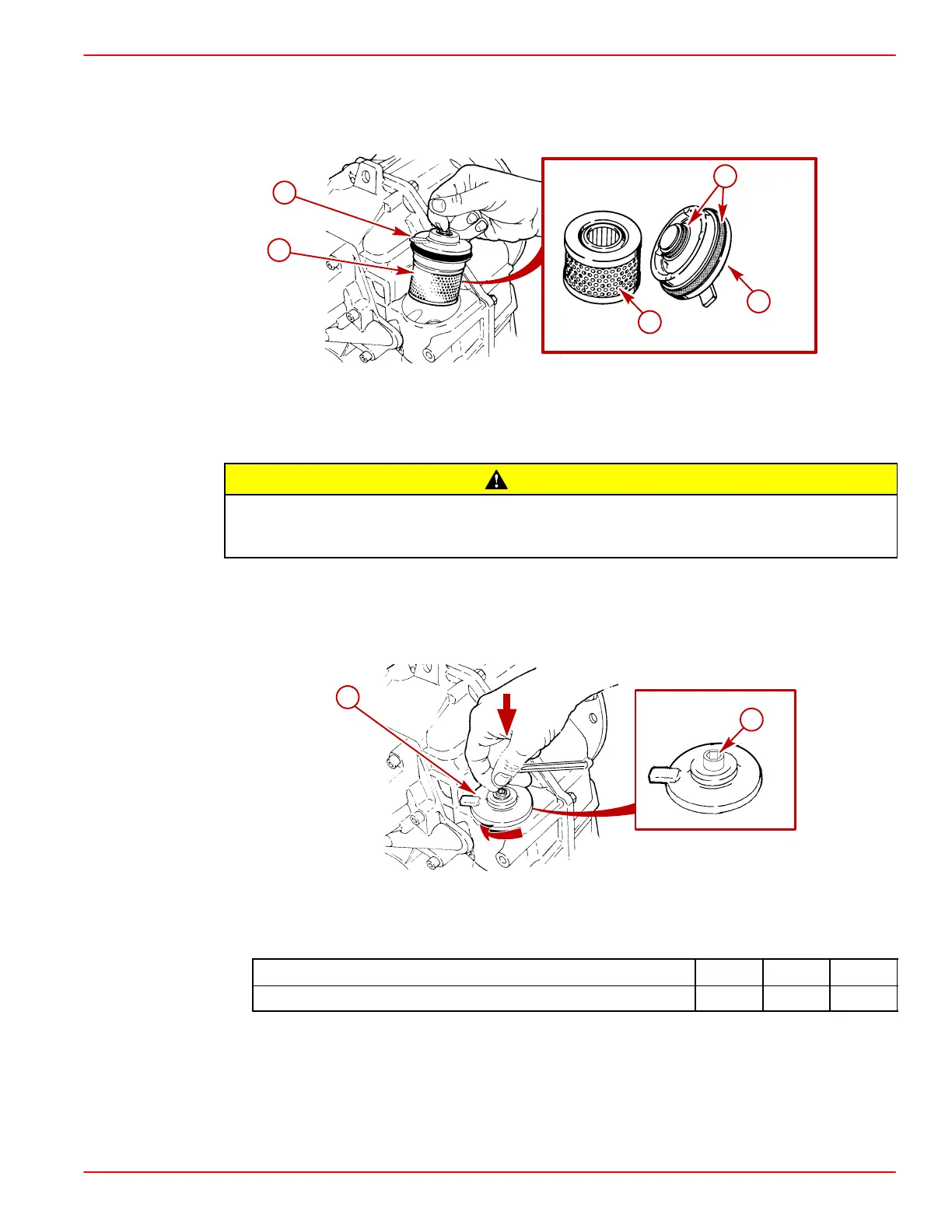

a-Filter Element
b-Cover
c-O-rings
CAUTION
Transmission fluid filter assembly must be properly seated to avoid fluid foaming
and/or loss of fluid resulting in decreased efficiency and/or damage to
transmission.
8. Install the fluid filter assembly in the transmission cavity by turning clockwise and
pushing at the same time.
9. Using a 6 mm allen wrench turn the filter assembly nut clockwise to tighten. Torque the
nut.
a
b
79800
a-Fluid filter assembly
b-Assembly nut
Description
Nm lb-in. lb-ft
Filter assembly nut 5-8 4-6
10. Refer to Transmission Fluid - Filling, and fill the transmission with specified fluid to the
proper level.
