RIGHT HAND NON-RATCHETING
Page 6A-48 90-883728 JULY 2001
Speedometer Tube Installation
1. Route speedometer tube from gearcase around lower yoke and push into junction.
Junction should be secured to yoke with sta-strap.
2. Route speedometer tube from swivel tube around lower yoke and push into junction.
After insertion of speedometer tubes into junction, pull on each tube to verify that they
are locked into junction. If tube pulls out, reinsert into junction.
57735
57736
a
d
a
c
b
d

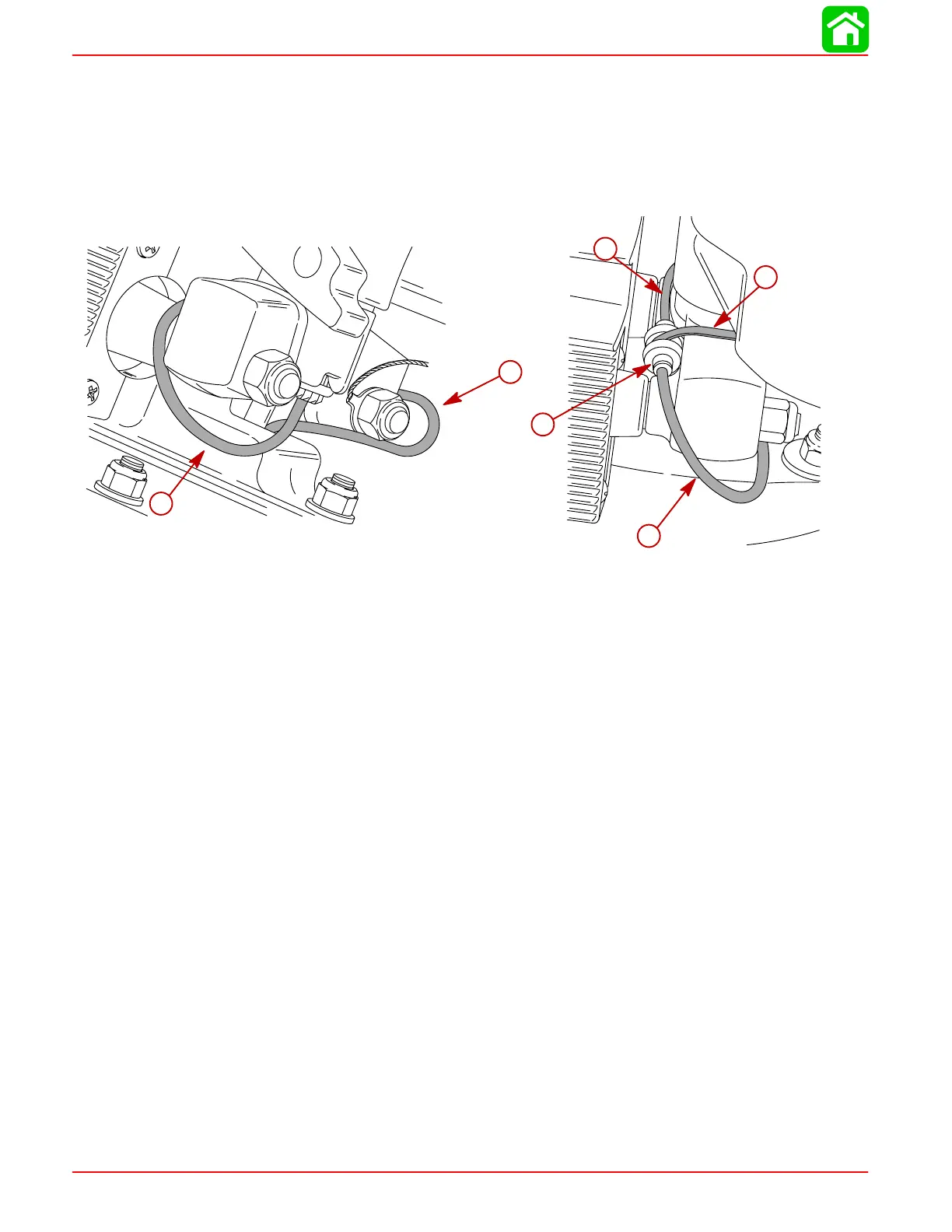

a-Speedometer Tube from Gearcase
b-Junction
c-Sta-strap
d-Speedometer Tube from Swivel Tube
