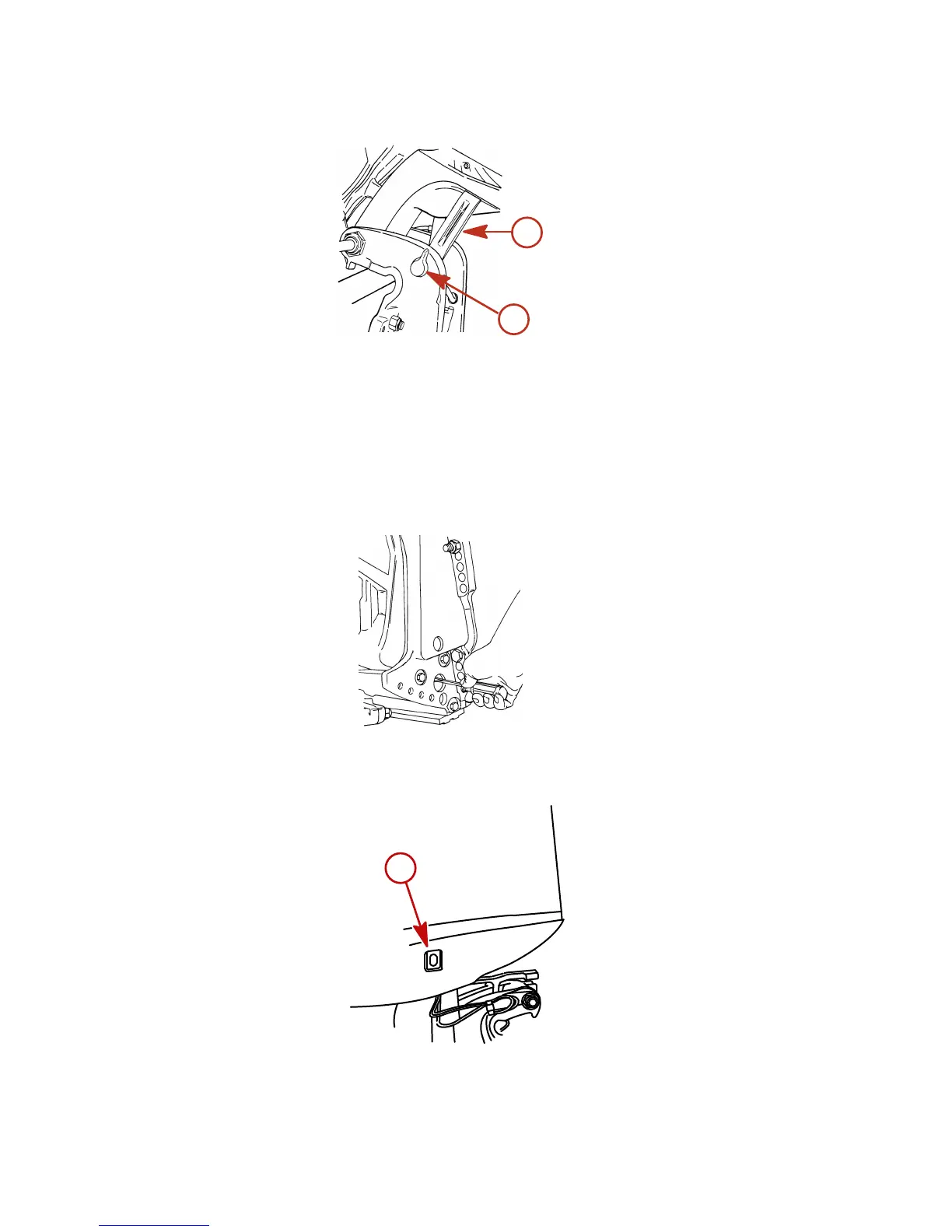

3. Disengage the tilt support lever, by raising the outboard off the support lever and rotating the tilt support
lever down. Lower the outboard.
a
b
ob00664
a - Tilt support lever b - Knob
MANUAL TILTING
If the outboard cannot be tilted using the power trim/tilt switch, the outboard can be manually tilted.
NOTE: The manual tilt release valve must be tightened before operating the outboard to prevent the outboard from
tilting up during reverse operation.
1. Turn out the manual tilt release valve 3 turns counterclockwise. This allows manual tilting of the outboard.
Tilt the outboard to the desired position and tighten the manual tilt release valve.
ob00665
AUXILIARY TILT SWITCH
This switch can be used to tilt the outboard up or down using the power trim system.
or54-1
a
a - Auxiliary tilt switch
