Mercury 200 OptiMax DTS Owner's Manual

MAINTENANCE
64

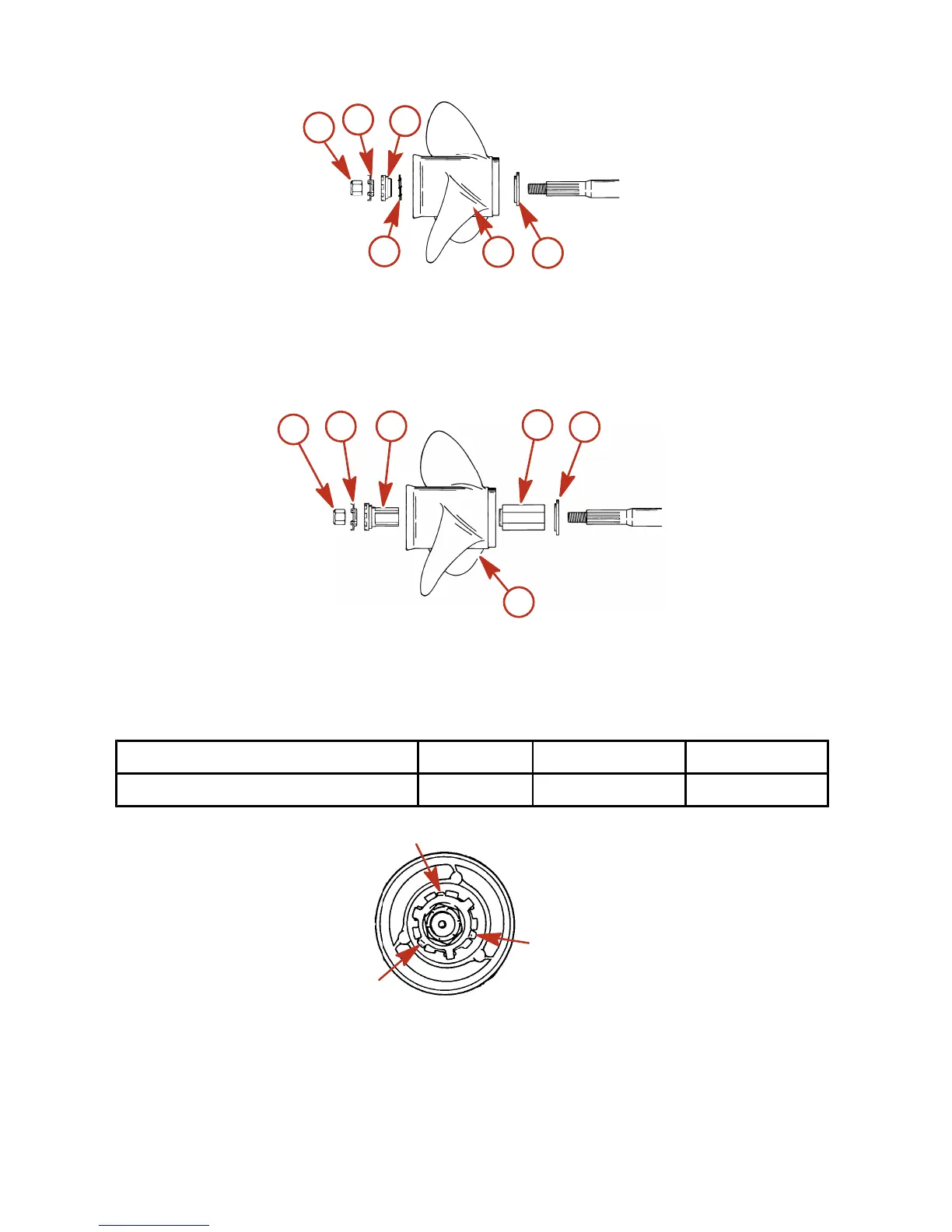

ob00382
a
b c
d
e
f
a - Propeller nut
b - Propeller nut retainer
c - Rear thrust hub
d - Continuity washer
e - Propeller
f - Forward thrust hub
8. Flo‑Torq II Drive Hub Propellers ‑ Install forward thrust hub, replaceable drive sleeve, propeller, thrust hub,
propeller nut retainer and propeller nut onto the shaft.
b
c
a
d
f
e
ob00421
a - Propeller nut
b - Propeller nut retainer
c - Rear thrust hub
d - Propeller
e - Replaceable drive sleeve
f - Forward thrust hub
9. Place a block of wood between gearcase and propeller and torque to specifications.
Description Nm lb. in. lb. ft.
Propeller nut 75 55
10. Secure propeller nut by bending three of the tabs into the thrust hub grooves.
ob00422
