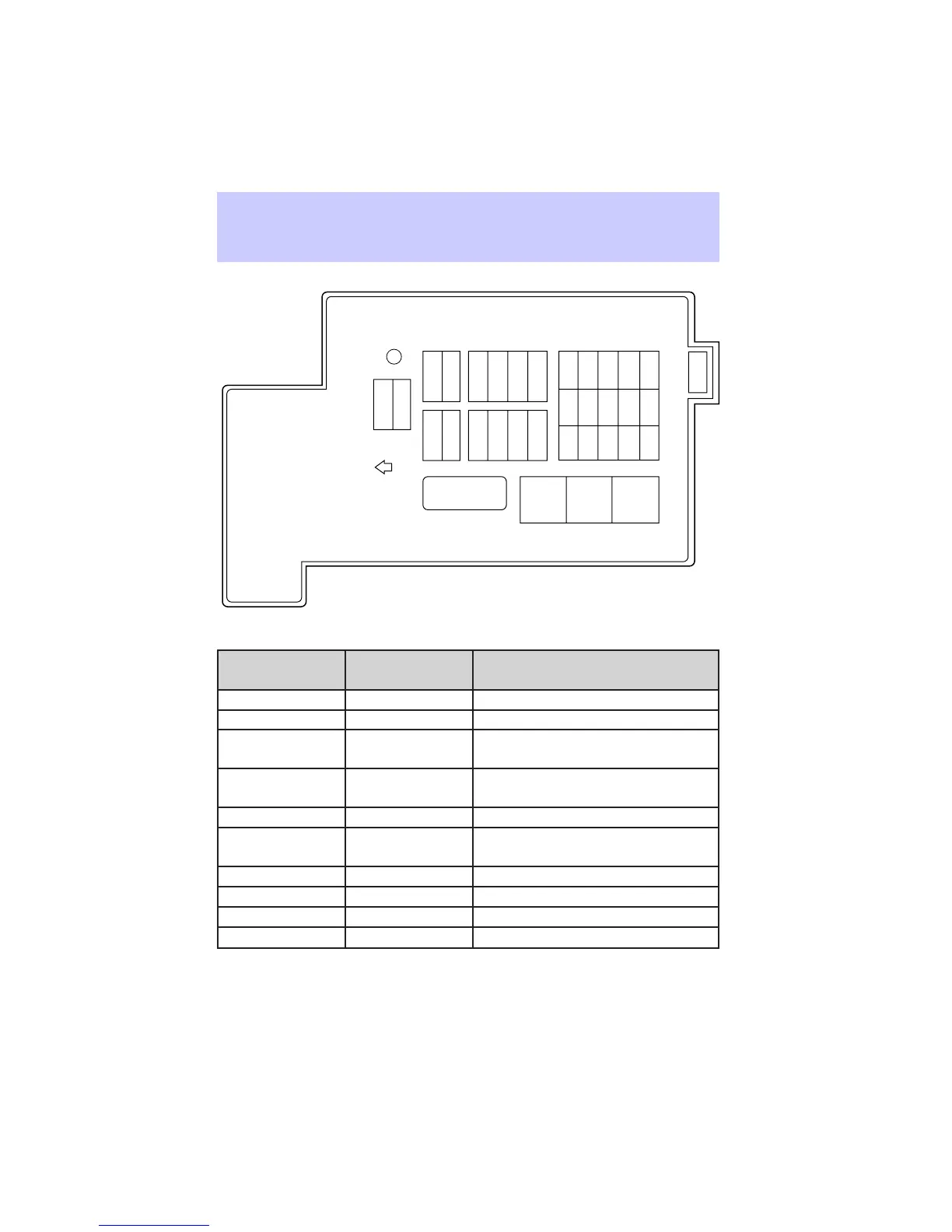

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
Fog Lamp 7.5A* Fog Lamps
FUEL PUMP 15A* Fuel Pump Relay
INJ 10A* Powertrain Control Module
(PCM), Injectors
SEC 7.5A* Anti-Theft Relay, Smart Entry
Control (SEC)/Timer Module
RAD 7.5A* Radiator Fan Sensing
ECCS 10A* Data Link Connector (DLC) #1,
PCM Power Relay
——Not Used
——Not Used
ALT 10A* Generator
ABS 20A* ABS Control Module
USE SPECIFIED FUSES OR FUSIBLE LINKS ONLY
ALT
100A
MAIN
140A
ALT
65A
FR
BLW
45A
RR
DEF
75A
RAD
FAN
JOINT CONN. RAD FAN
H1
RAD FAN
H2
RAD FAN
LO
30A
IGN
SW
20A
RAD
FAN
LO
30A
PWR
WND
40A
ABS
20A
ABS
15A
HORN
7.5A
SEC
7.5A
LAMP
15A
H/L
LH
15A
H/L
RH
10A
ALT
10A
ECCS
10A
INJ
15A
FUEL
PUMP
7.5A
RAD
FRONT
FOG
