Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
66 20A* 2nd row seat power point
67 20A* Ignition switch #2 feed
70 — Not used
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 Diode PCM
76 Diode A/C clutch
* Mini Fuse ** Cartridge Fuse

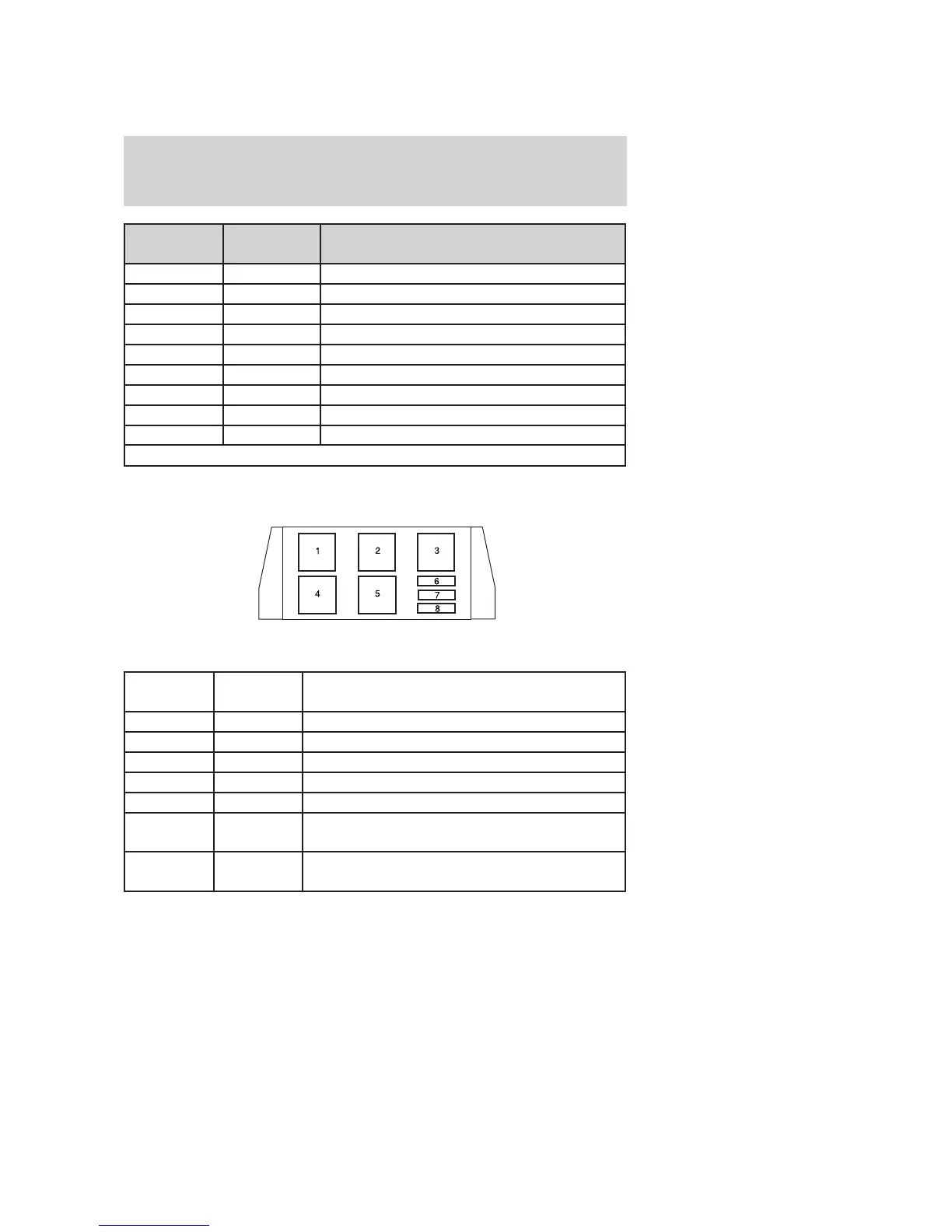

Auxiliary relay box (cooling fans)
The relay box is located in the engine compartment by the radiator.
Fuse/Relay
location
Fuse amp
rating
Description
1 — Cooling fan relay #1
2 — Cooling fan relay #2
3 — Cooling fan relay #3
4 — Cooling fan relay #4
5 — Cooling fan relay #5
6 40A* Right-hand cooling fan motor (Vehicles with
trailer tow package only)
7 15A** Low-speed cooling fan circuit breaker
(Vehicles with trailer tow package only)
2004 Monterey (mty)
Owners Guide (post-2002-fmt)
USA English (fus)
