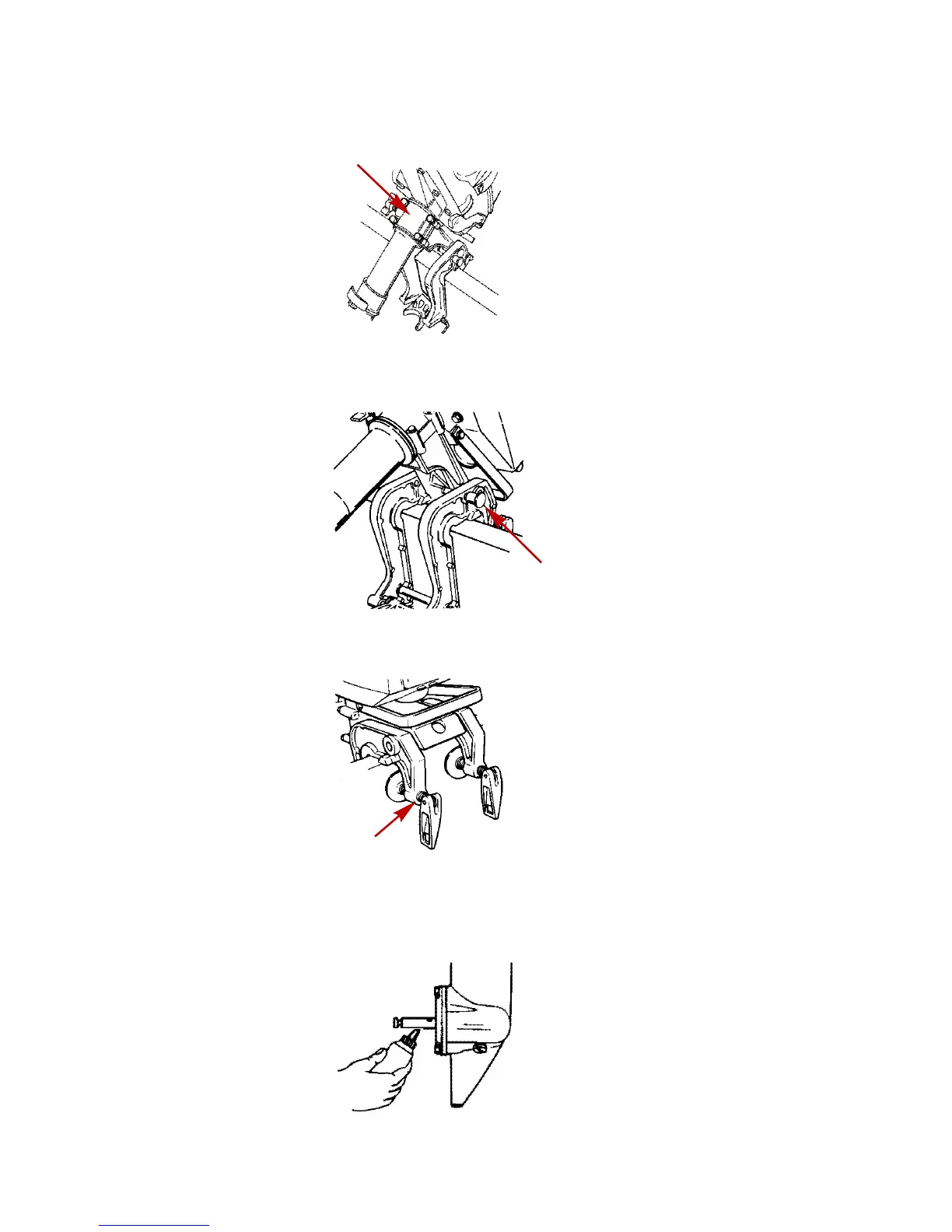

Swivel bracket ‑ Remove four (4) bolts and rear cover and lubricate
the inner nylon bushings.
28714
Tilt support pin.
28387
Transom clamp screw threads.
28715
Propeller shaft ‑ Refer to Propeller Replacement for removal and
installation of the propeller. Apply 2‑4‑C with PTFE to the entire
propeller shaft to prevent the propeller hub from corroding to the shaft.
28707
MAINTENANCE
38 eng
