Mercury 300 XS OptiMax User Manual

OUTBOARD INSTALLATION
eng 113
IMPORTANT: The recommended mounting height is based on performance
testing with a single‑engine application on a hull with no stepped or notched
transoms. Your performance results may vary, depending on hull design.
For best overall performance on boats with Sport Master gearcases, try to
mount the outboard so the propeller shaft centerline is even with the bottom of
the boat, as this gearcase is designed for surfacing applications.

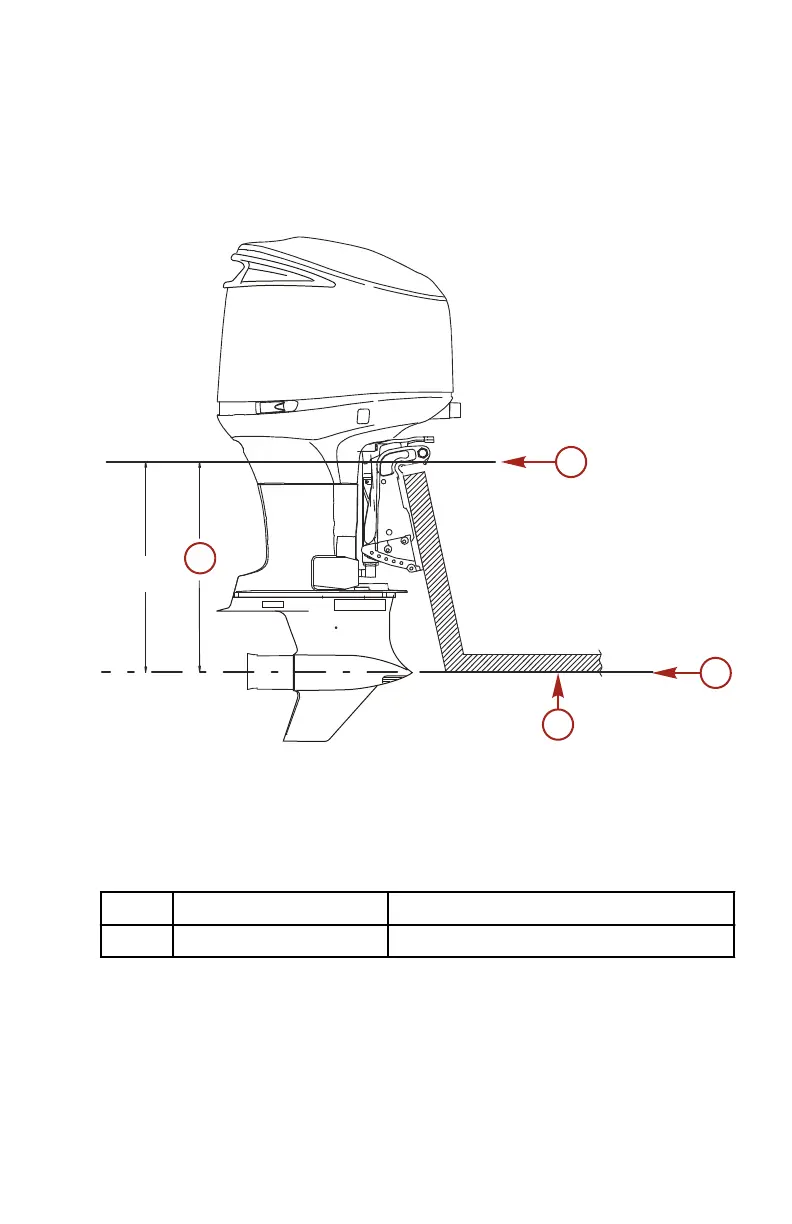

a - Underside of transom bracket hooks
b - Bottom of the boat
c - Distance between "a" and "b"
d - Propeller shaft centerline
Item
Model
1.
Recommended Mounting Height Range
c
20 in. driveshaft models 685–732 mm (27–30 in.)
(28.45 in.)
722.6 mm
a
d
14313
c
b
1. Some models may not be available with this outboard.
