OUTBOARD INSTALLATION
eng 135
• Within easy access to the filler cap.

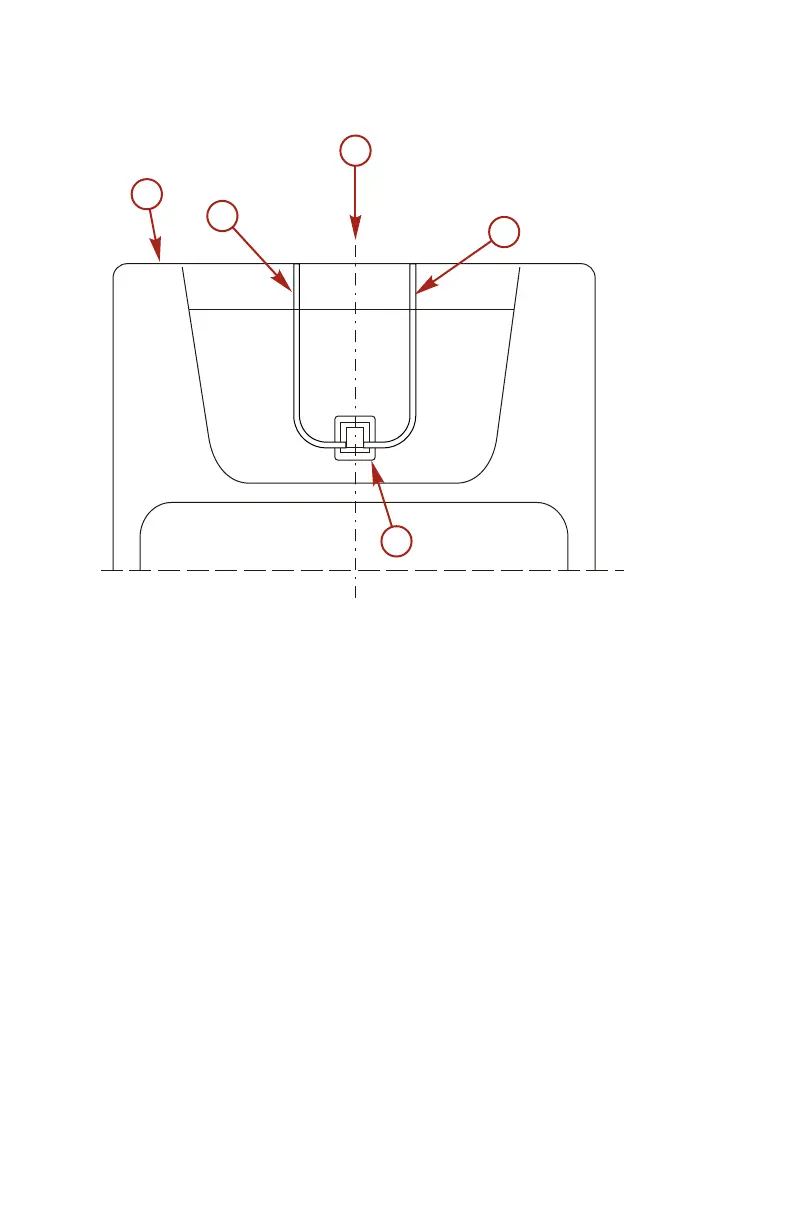

a - Transom
b - Trim lines
c - Engine centerline
d - Engine well cover
IMPORTANT: The power trim hoses must be able to extend to the rear edge
of the transom to connect to the engine.
2. Make hydraulic connections to the remote pump assembly according to
the instructions included with the pump.
3. Using the inlet cover gasket as a template, mark and drill four 3/16 in.
mounting holes.
a
c
b
b
d
15870
