Mercury 5 4-Stroke User Manual

INSTALLATION
14
Installing Outboard

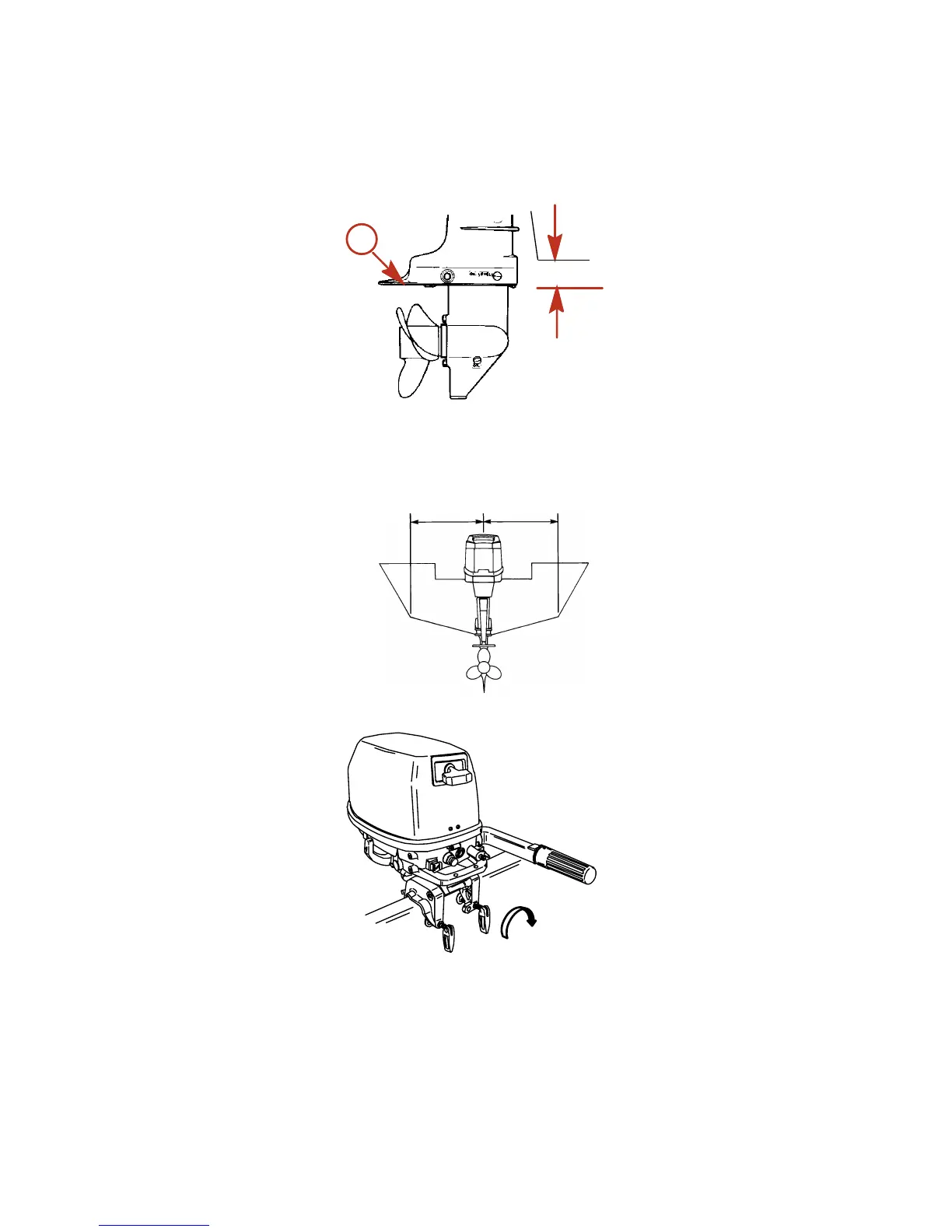

BOAT TRANSOM HEIGHT REQUIREMENT
1. Measure the transom height of your boat. The anti-ventilation plate should be 25 - 50 mm (1 - 2 in.) below
the bottom of the boat.
ob00445
a
a - Anti-ventilation plate
INSTALLING OUTBOARD ON TRANSOM
1. Place outboard on center line of transom.
ob00446
2. Tighten transom clamp handles.
ob00447

Mercury 5 4-Stroke Specifications

General

Engine Type	4-Stroke
Horsepower	5 HP
Cylinders	1
Starting	Manual
Fuel Type	Unleaded Gasoline (87 octane)
Full Throttle RPM Range	4500-5500 RPM
Fuel Induction System	Carburetor
Steering	Tiller
Gear Ratio	2.15:1
Gear Shift	F-N-R
Displacement	123 cc
Fuel Tank	1.1 L (External)
Shaft Length	Short / Long
