MAINTENANCE
90-827242R02 FEBRUARY 2003 Page 1B-11

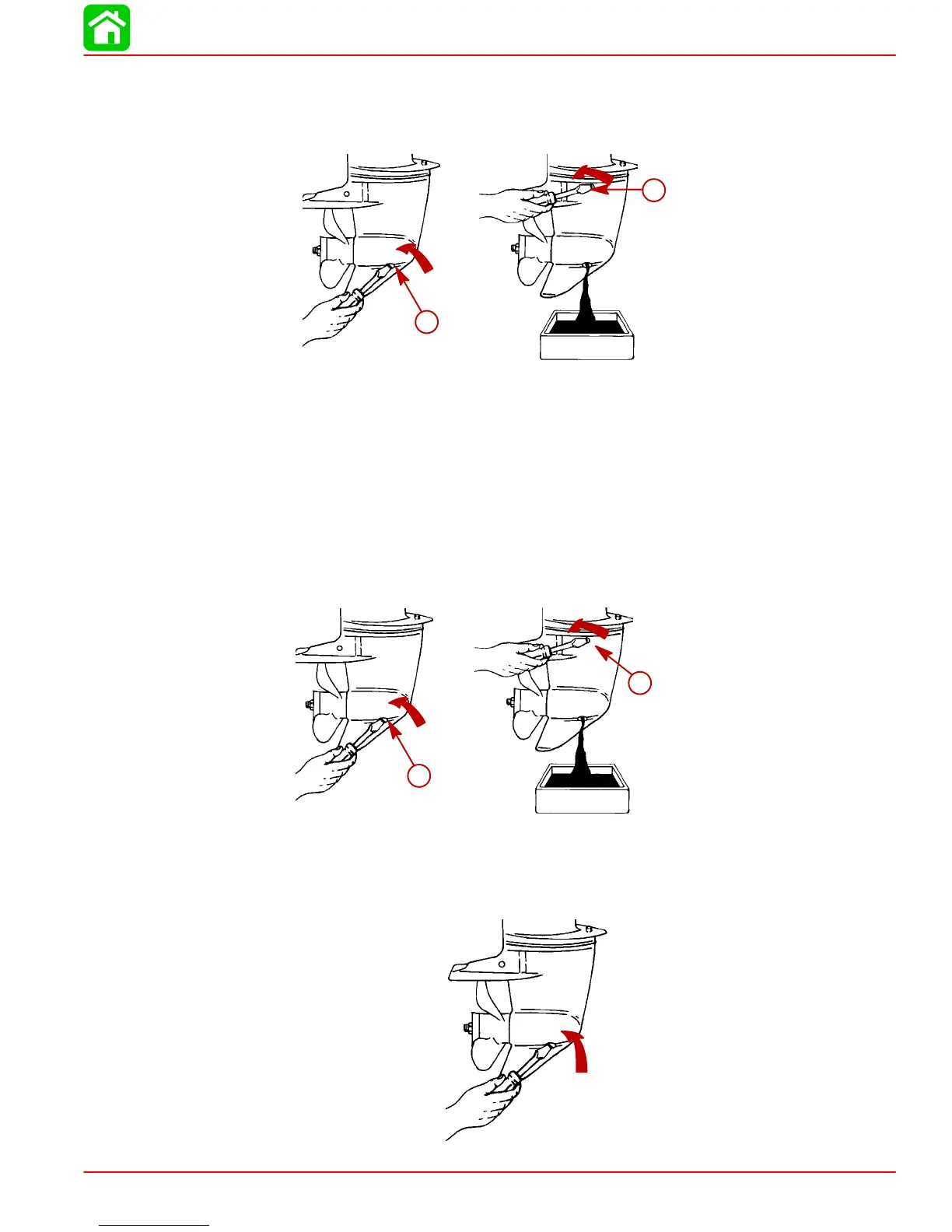

1. Place outboard in a vertical operating position.
2. Place drain pan below outboard.
3. Remove fill/drain plug and vent plug and drain lubricant.
b
a
b
a-Fill/Drain Plug
b-Vent plug
Checking Lubricant Level and Refilling Gearcase
1. Place outboard in a vertical operating position.
2. Remove vent plug from vent hole.
3. Place lubricant tube into the fill hole and add lubricant until it appears at the vent hole.
4. Stop adding lubricant. Install the vent plug and sealing washer before removing the
lubricant tube.
a
b
a-Fill/Drain plug
b-Vent plug
5. Remove lubricant tube and reinstall cleaned fill/drain plug and sealing washer.
