Mercury Boulevard Series - E-bike Tuning Instructions; Disc brake Adjusting

E L E C T R I C B I C Y C L E M A N U A L – B O U L E V A R D S E R I E S
Page 13
4. E-bike Tuning Instructions
4.1 Disc brake Adjusting:

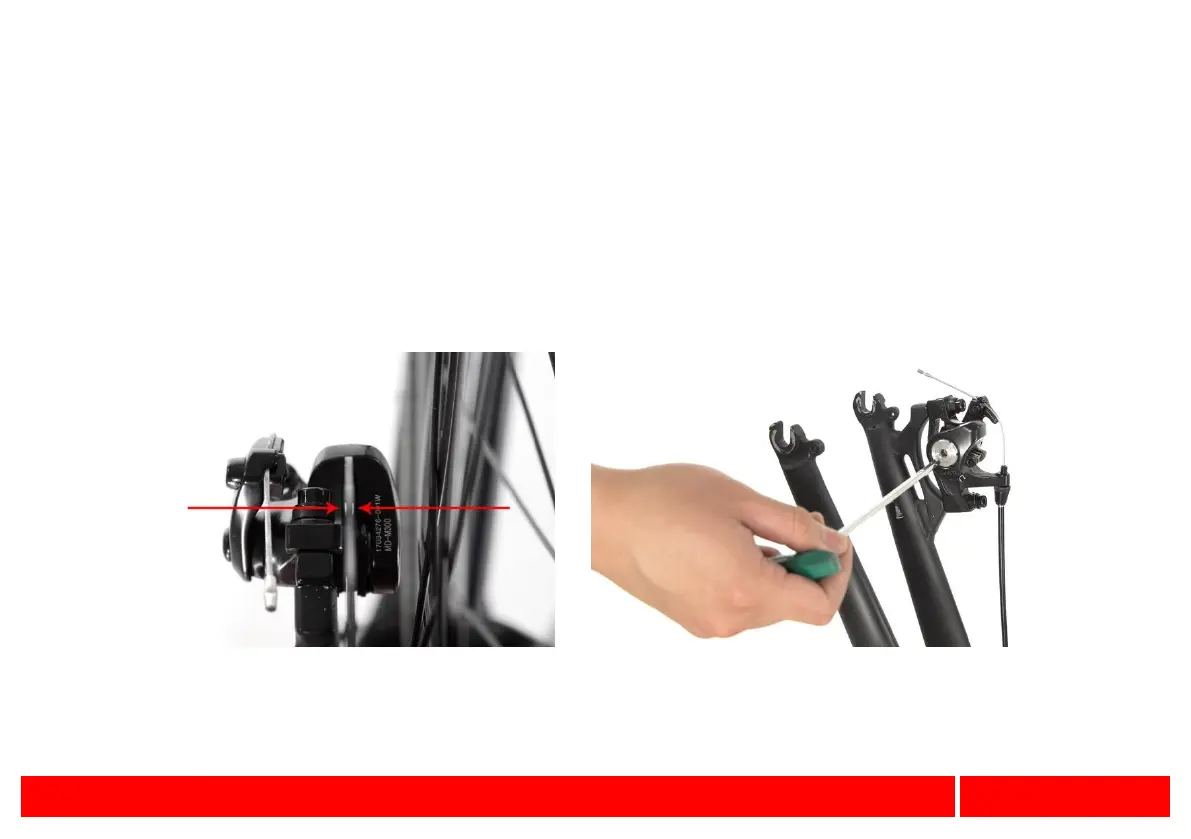

A). Adjust the amount of space to the right and left of the disc rotor so that the rotor does not rub on the brake pads. This is done
by adjusting the position of the brake on the fork/frame by loosening off the mounting bolts, making small corrections and re-
tightening them.
B). You can adjust the position of the right side brake pad by tightening or loosening the bolt on the side of the brake calliper.
A
B
