WARNING
Improper fasteners or improper installation procedures can result in
loosening or disengagement of the steering link rod. This can cause a
sudden, unexpected loss of boat control, resulting in serious injury or death
due to occupants being thrown within or out of the boat. Always use required
components and follow instructions and torque procedures.

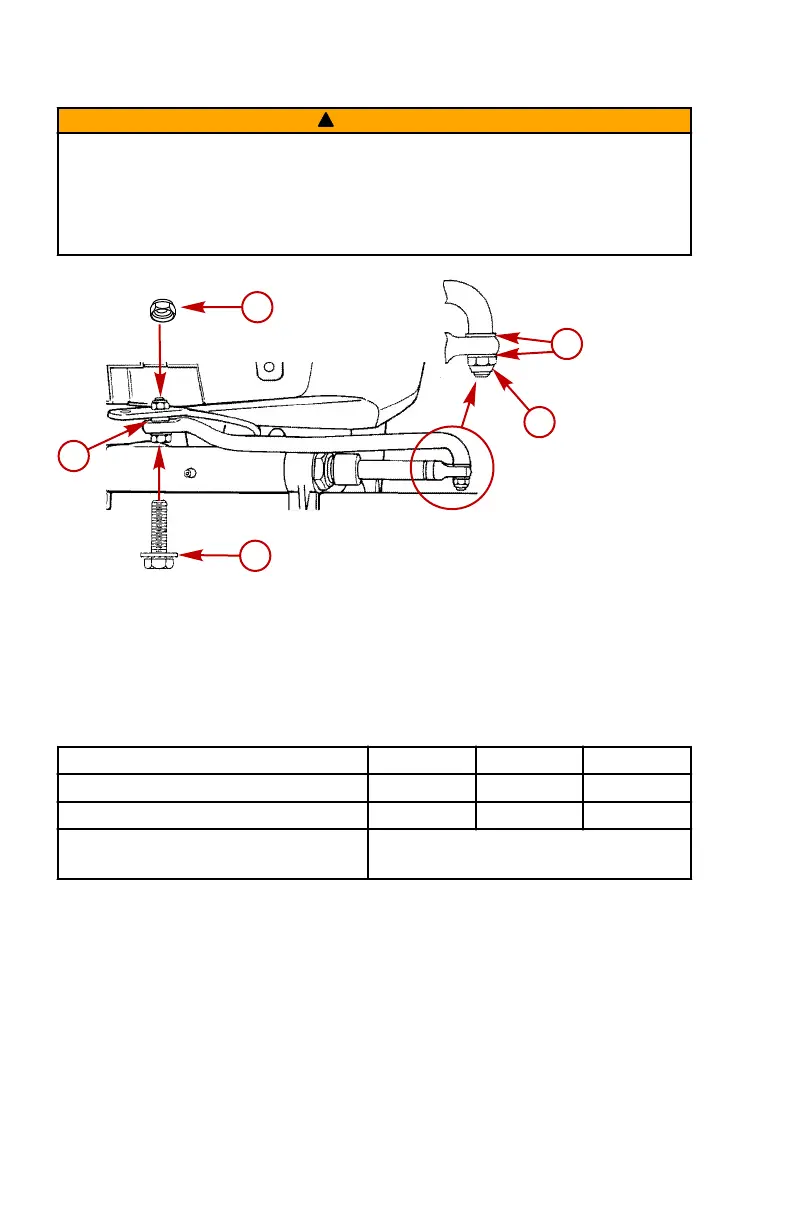

a - Nylon insert locknut (11‑826709113)
b - Flat washers
c - Nylon insert locknut (11‑826709113)
d - Special washer head bolt (10‑856680)
e - Spacer
Description Nm lb‑in. lb‑ft
Special washer head bolt 27 – 20
Nylon insert locknut "a" 27 – 20
Nylon insert locknut "c"
Tighten until seats, then back off 1/4
turn
Assemble steering link rod to steering cable with two flat washers and nylon
insert locknut. Tighten locknut until it seats, then back nut off 1/4 turn.
Assemble steering link rod to engine with special washer head bolt, locknut and
spacer. First torque special washer head bolt, then torque locknut to
specifications.
