Mercury Epiphone Valve Junior - Page 29

Epiphone Valve Jr.•Mercury Upgrade Kit 29
ThisprojectanditsdocumentationistheresultoftechnicalinvestigationsmadebytheengineeringstaffofMercury Magnetics.Thedisclosureoftheinformationhereinmaypertaintoproprietaryrightsand
thefurnishingofthesedocumentsdoesnotconstituteanexpresedorimpliedlicensetousesuchmaterials.

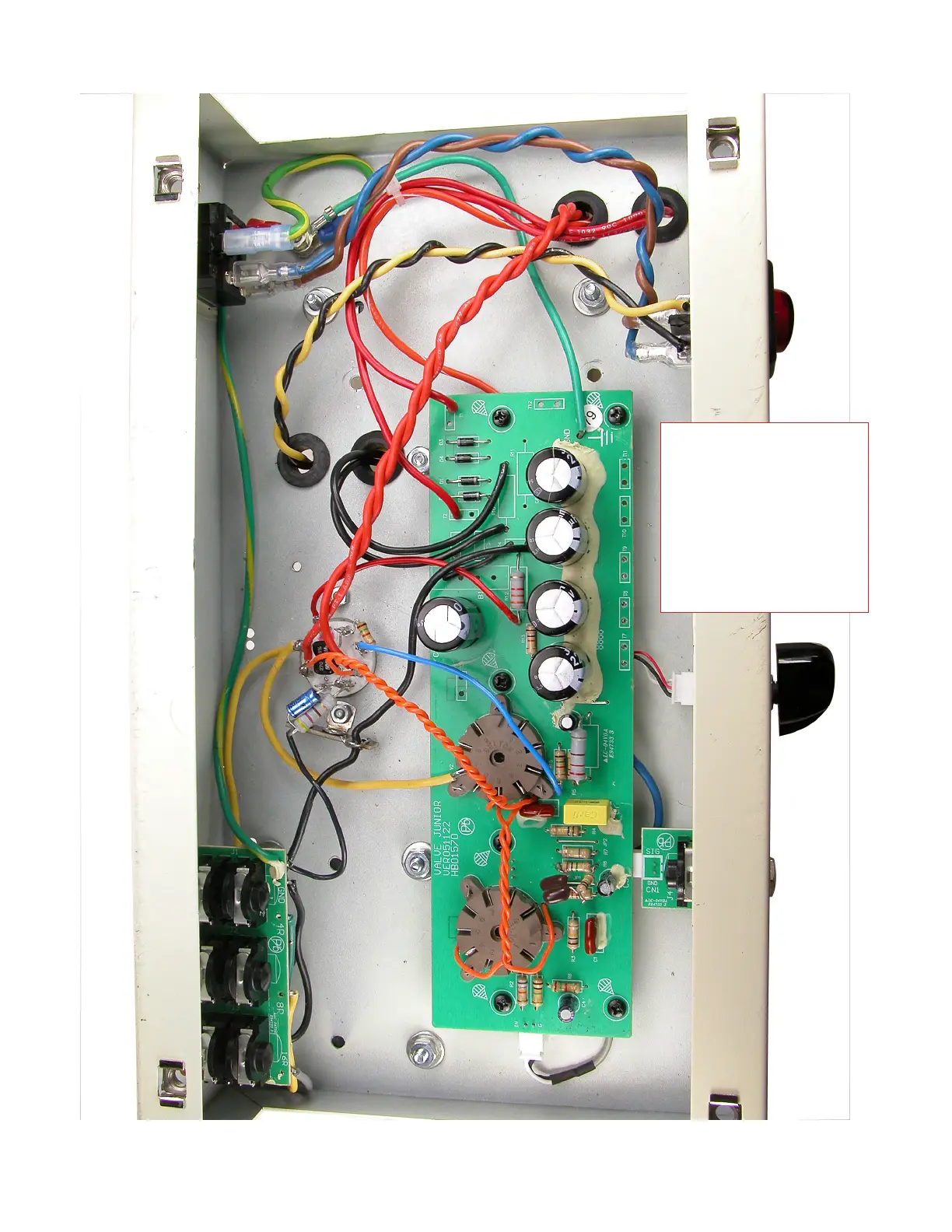

Thenext4photosshow
anUpgradedVersion2
PCBofaValve Jr. (with
the6V6option).
Note:Anerrorresultedinthe
OT’sblackprimaryleadbeingcut
short.The6V6option’sstand-off
connectorwasusedtoremedy
theproblem.
