Epiphone Valve Jr.•Mercury Upgrade Kit 11
ThisprojectanditsdocumentationistheresultoftechnicalinvestigationsmadebytheengineeringstaffofMercury Magnetics.Thedisclosureoftheinformationhereinmaypertaintoproprietaryrightsand
thefurnishingofthesedocumentsdoesnotconstituteanexpresedorimpliedlicensetousesuchmaterials.
1-5/16”
2-1/2”
4“
3“
2-1/4“
1-5/16”
ORANGE/WHITE
YELLOW
ORANGE
RED RED
ORANGE
BLACK
YELLOW
RED
3-1/2“
3/16” DIA
RED
B+
YELLOW
BLACK
RED
SECONDARY
(OUTPUT)
ORANGE
ORANGE
6.3V with CT
filament
winding
ORANGE/WHITE
PRIMARY
(INPUT)
120V
Low flux/high impedance inductance design
with primary to secondary humbucking
winding configuration.
Mercury Magnetics
9167 Independence Ave. • Chatsworth, CA 91311
(818) 998-7791 • FAX (818) 998-7835
info@MercuryMagnetics.com • www.MercuryMagnetics.com
100% of our products are designed & handmade in So. California, USA. • Established in 1954
TM
(All dimensions are nominal)
EPJR-P
EPJR-P

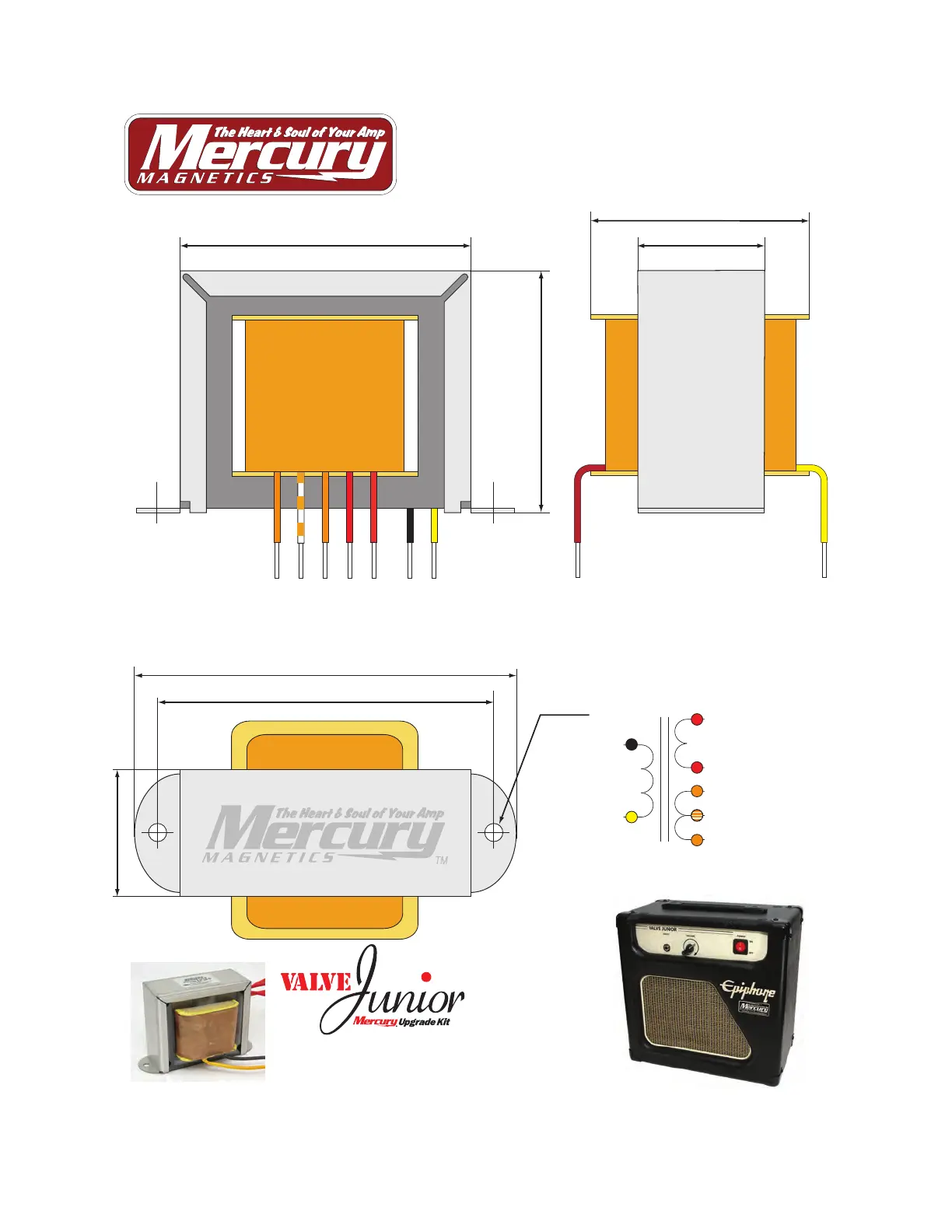

CLASS: Axiom®
TYPE: Power Transformer
PART NO.: EPJR-P
ORIGINAL EPIPHONE PART NO: TC00273
MOUNTING: Horizontal A-Frame
VA RATING: 30VA
DATE: 03-30-06
