12 Epiphone Valve Jr.•Mercury Upgrade Kit
ThisprojectanditsdocumentationistheresultoftechnicalinvestigationsmadebytheengineeringstaffofMercury Magnetics.Thedisclosureoftheinformationhereinmaypertaintoproprietaryrightsand
thefurnishingofthesedocumentsdoesnotconstituteanexpresedorimpliedlicensetousesuchmaterials.
BLACK BLACK
BLACK
1-3/8“
1-11/16“
1-1/8“
9/16”
9/16”
3/16” DIA
2-3/8“
2“
BLACK
BLACK
3.0 Henry
200ma maxium
Mercury Magnetics
9167 Independence Ave. • Chatsworth, CA 91311
(818) 998-7791 • FAX (818) 998-7835
info@MercuryMagnetics.com • www.MercuryMagnetics.com
100% of our products are designed & handmade in So. California, USA. • Established in 1954
TM
Copyright © 2006–2010 by Mercury Magnetics. All Rights Reserved. Mercury Magnetics, ToneClone, FatStack & Mercury Vintage are trademarks licensed to Mercury Magnetics. Axiom is a registered trademark
licensed to Mercury Magnetics. Epiphone is a registered trademark of Gibson Guitar Corp. or its subsidiaries. Mercury Magnetics is not affiliated with Gibson Guitar Corp.
Epiphone Valve Jr.
Origin: Stock Valve Jr. purchased in April 2005 specifically
for modification purposes.
(All dimensions are nominal)

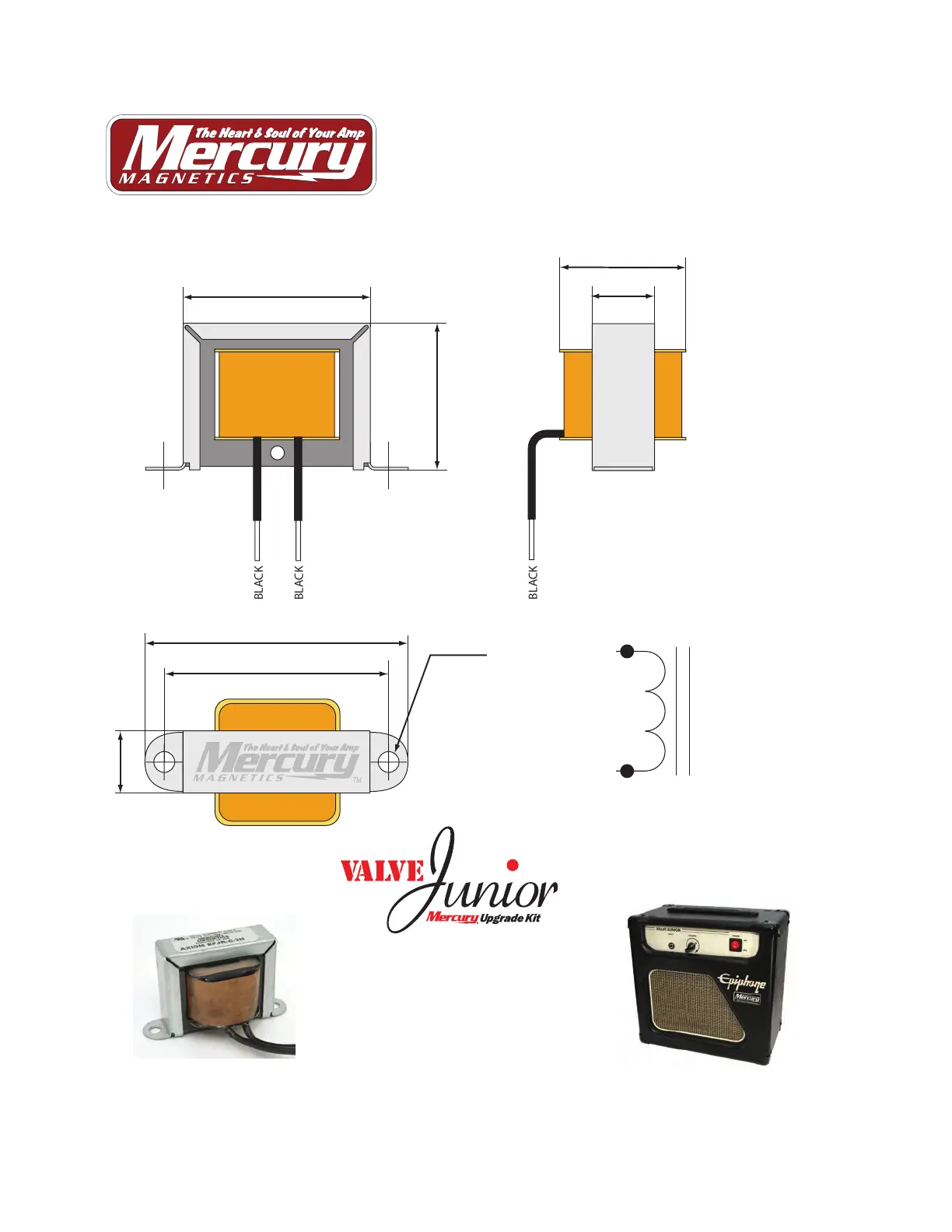

EPJR-C-3H
EPJR-C-3H
CLASS: Axiom®
TYPE: Mini-Choke™
PART NO.: EPJR-C-3H
ORIGINAL EPIPHONE PART NO.: N/A
NOTE: The introduction of the first Mini-Choke™. This choke was
specially designed by Mercury Magnetics for the Valve Jr. but may
also be used in almost any amp style. (Call for more information.)
MOUNTING: Horizontal A-Frame
POWER RANGE: 3 Henry / 200ma max.
DATE: 03-27-06
