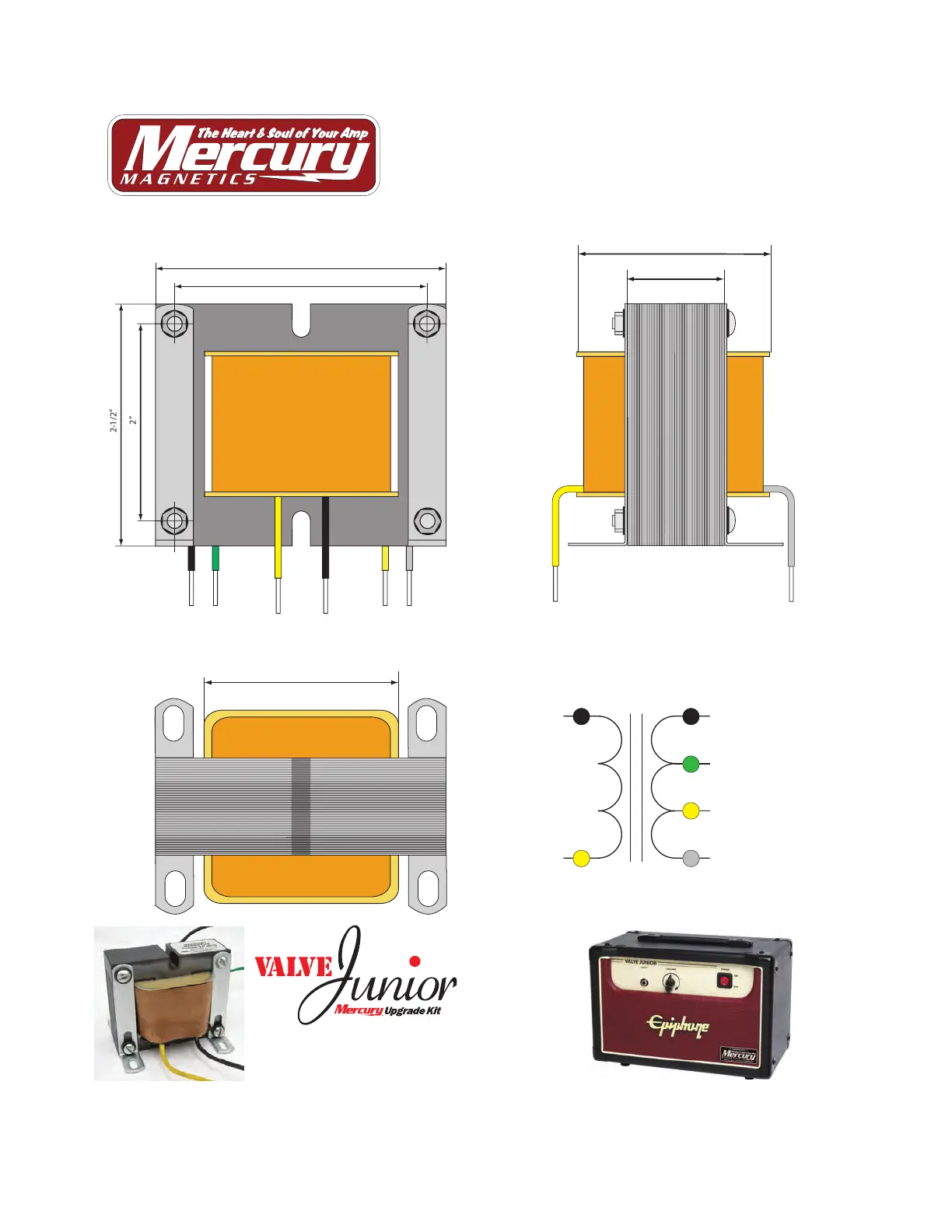

Mercury Epiphone Valve Junior User Manual

Epiphone Valve Jr.•Mercury Upgrade Kit 13
ThisprojectanditsdocumentationistheresultoftechnicalinvestigationsmadebytheengineeringstaffofMercury Magnetics.Thedisclosureoftheinformationhereinmaypertaintoproprietaryrightsand
thefurnishingofthesedocumentsdoesnotconstituteanexpresedorimpliedlicensetousesuchmaterials.
2-1/2”
2”
2“
1”
GRAY
YELLOW
BLACK
YELLOW
GRAY
BLACK
GREEN
YELLOW
2“
3”
2-1/2”
BLACK
YELLOW
BLACK
Attach to Output Jack
Module “GND” (ground)
Attach
to PCB
location “T4”
Attach to PCB
location “T3”
(left hole)
GREEN (4Ω)
YELLOW (8Ω)
GRAY (16Ω)
Attach to Output Jack
Module “4R”
Attach to Output Jack
Module “8R”
Attach to Output Jack
Module “16R”
SECONDARY
(OUTPUT)
PRIMARY
(INPUT)
Mercury Magnetics
9167 Independence Ave. • Chatsworth, CA 91311
(818) 998-7791 • FAX (818) 998-7835
info@MercuryMagnetics.com • www.MercuryMagnetics.com
100% of our products are designed & handmade in So. California, USA. • Established in 1954
TM
(All dimensions are nominal)
EPJR-OM
MULTI-TAP VERSION
EPJR-OM
CLASS: Axiom®
TYPE: Output Transformer
PART NO.: EPJR-OM
ORIGINAL EPIPHONE PART NO.:
YW TF-VALVE JUNIOR-5W
MOUNTING: Horizontal L-Bracket
POWER RANGE: Our OTs are rated
to handle up to 50% more power than
the original manufacturer spec.
DATE: 04-24-07
MULTI-TAP VERSION
Copyright © 2006–2010 by Mercury Magnetics. All Rights Reserved. Mercury Magnetics, ToneClone, FatStack & Mercury Vintage are trademarks licensed to Mercury Magnetics. Axiom is a registered trademark
licensed to Mercury Magnetics. Epiphone is a registered trademark of Gibson Guitar Corp. or its subsidiaries. Mercury Magnetics is not affiliated with Gibson Guitar Corp.
Epiphone Valve Jr.
Origin: Stock Valve Jr.
purchased in April 2005
specifically for modification
purposes.
