Tips ’n Tricks for
Alan’s “Anti-Squeal” Circuit Option

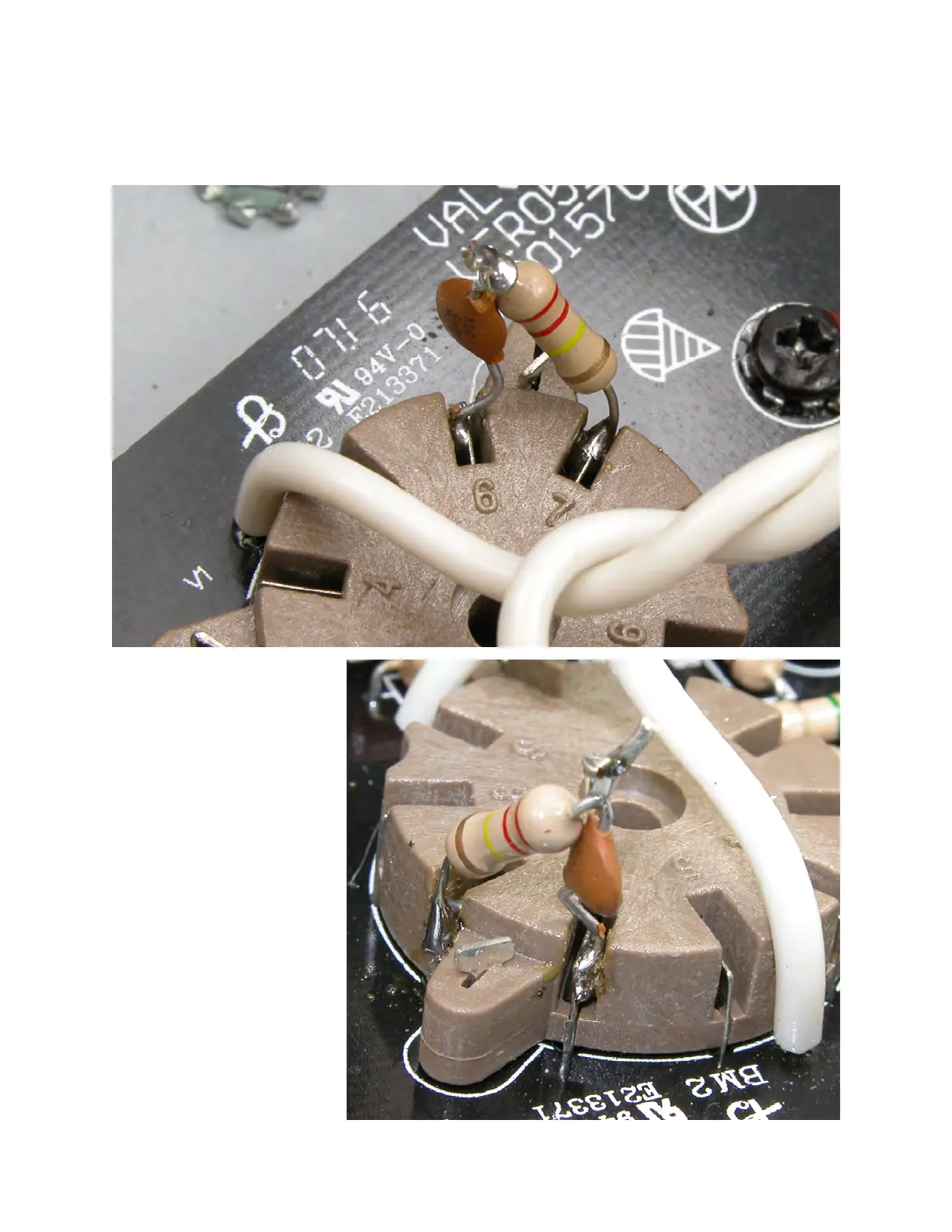

Jointheprovided47rFceramic
diskcapacitortothe220KW
resistorandjumpthemacross
pins6and7oftheV1socket
(12AX7)asshown.
Duetoqualityissueswith
someoftheChinesematerials
beingusedsome(butnotall)
Version3Valve Jr.ampswill
emita“squeal.”Ifyou’reone
oftheunluckyones,install
thisanti-squealoption.Refer
totheschematicsforspecic
connectioninformation.
