Mercury NMEA 2000 User Manual

NMEA 2000 GATEWAY MODULE ASSEMBLY
90-8M0153111 eng SEPTEMBER 2018 © 2018 Mercury Marine Page 5 / 10

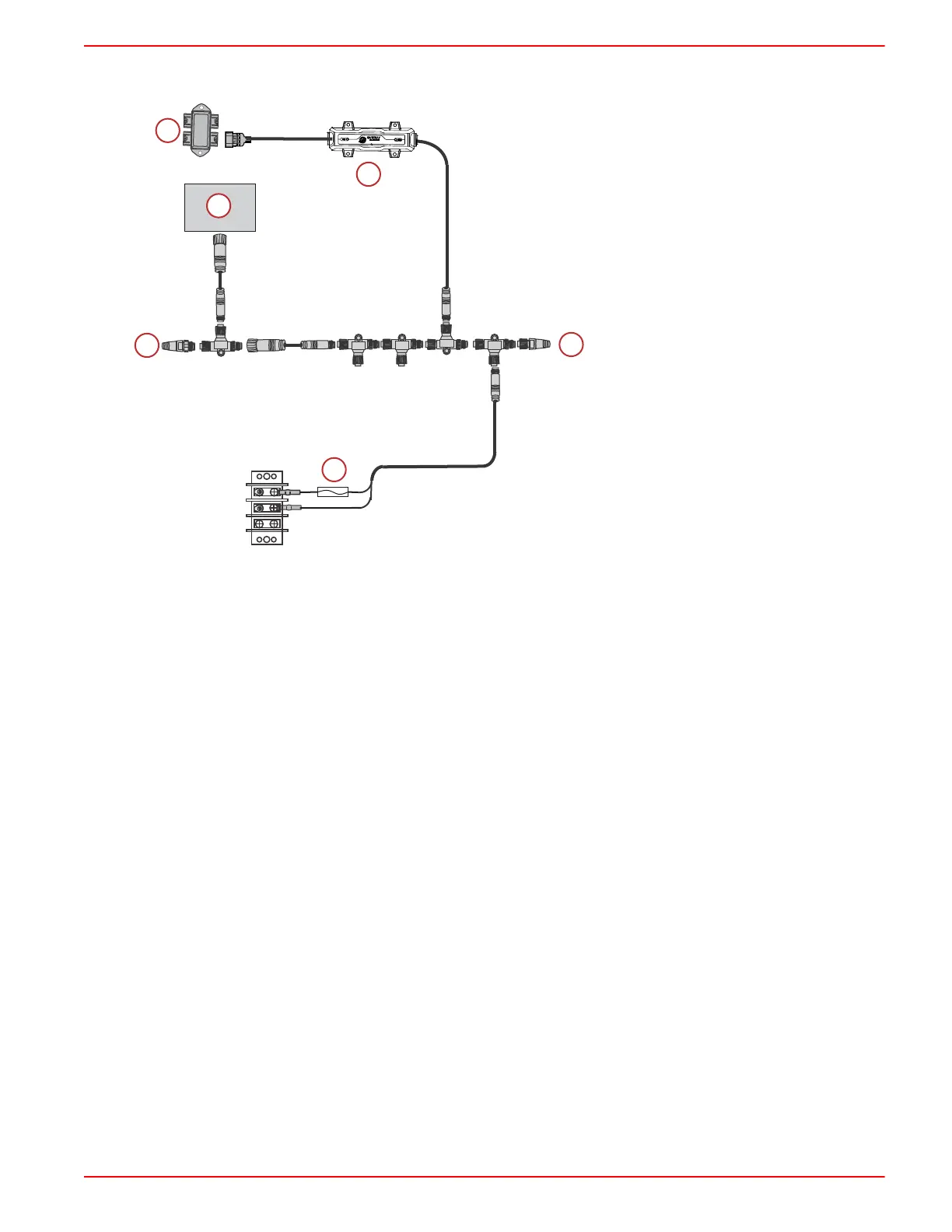

b. For DTS installations, connect the CAN 10‑pin harness connector to the multiwake SmartCraft junction box.
a - 120K ohm termination resistor
b - Chartplotter
c - Mercury CAN P Gateway
d - NMEA 2000 fused power source
e - Multiwake SmartCraft junction box.
2. Connect the multiengine Gateway module NMEA 2000 harness connector to the NMEA 2000 network.
CAN H Multiengine Helm Gateway (Autopilot)
1. Connect the CAN 10‑pin harness connector to the multiwake SmartCraft junction box.
2. Connect the Gateway module to receive chartplotter autopilot information in only one of the two following ways:
120
a
a
b
d
120
c
52718
e
