Mercury SmartCraft CONNECT User Manual

SMARTCRAFT CONNECT GATEWAY MANUAL
90-8M0174152 eng APRIL 2021 © 2021 Mercury Marine Page 3 / 5

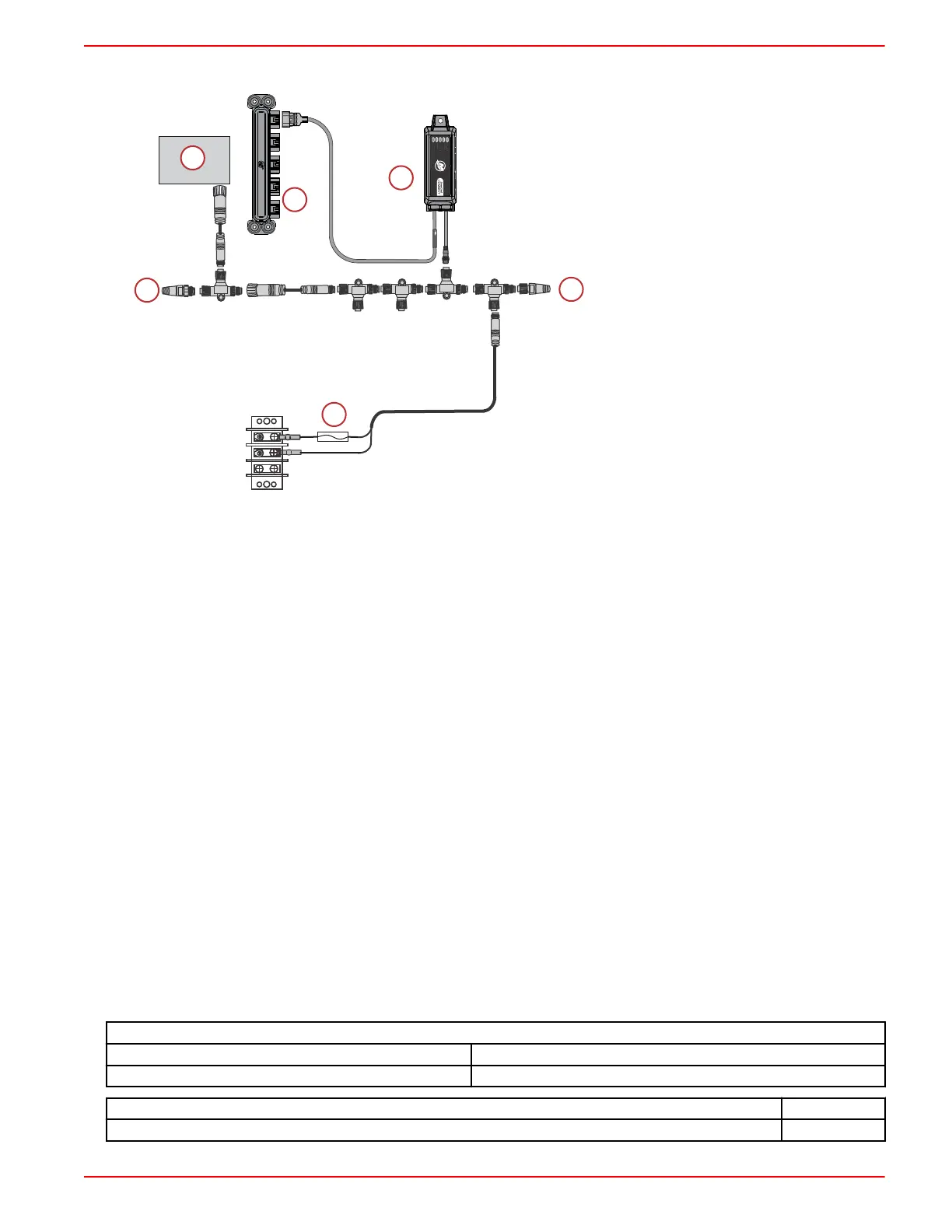

2. Connect the module NMEA 2000 harness connector to the NMEA 2000 network.
a - 120‑ohm termination resistor
b - Chartplotter
c - SmartCraft CONNECT module
d - NMEA 2000 fused power source
e - SmartCraft junction box
Troubleshooting
LED Lighting
The device contains 5 LEDs for indicating the status of CAN P, NMEA, CAN H, Wi‑Fi, and Bluetooth®.
1.
CAN P
•
Flashing: The LED will flash continuously once power is applied.
•
Solid: Once the bus communication is established, the LED will remain on.
2.
NMEA
•
Flashing: The LED will flash continuously once power is applied.
•
Solid: Once the bus communication is established, the LED will remain on.
3.
CAN H
NOTE: The CAN H LED will not function on engine mount models.
•
Flashing: The LED will flash continuously once power is applied.
•
Solid: Once the bus communication is established, the LED will remain on.
4.
Wi‑Fi
•
Off: No connection.
•
On: Wi‑Fi connection established.
5.
Bluetooth
•
Flashing: The Bluetooth LED will flash while in pairing mode, indicating it is not currently connected.
•
Solid: The Bluetooth LED will remain on continuously while connected.
SmartCraft CONNECT Module Protocol Description
The software is capable of transmitting (TX) information to, and receiving (RX) information from various parameter group
number (PGN) products.
SmartCraft CONNECT Module Modes
Transmit (TX) Receive (RX)
Transmits Mercury data to NMEA 2000 display devices. Receives data from NMEA 2000 to display on Mercury devices.
Description Value
NMEA 2000 Load Equivalency Number (LEN) 1
120
a
a
b
d
120
71914
e
c
TERMINATED
ENGINE MOUNT ONLY
