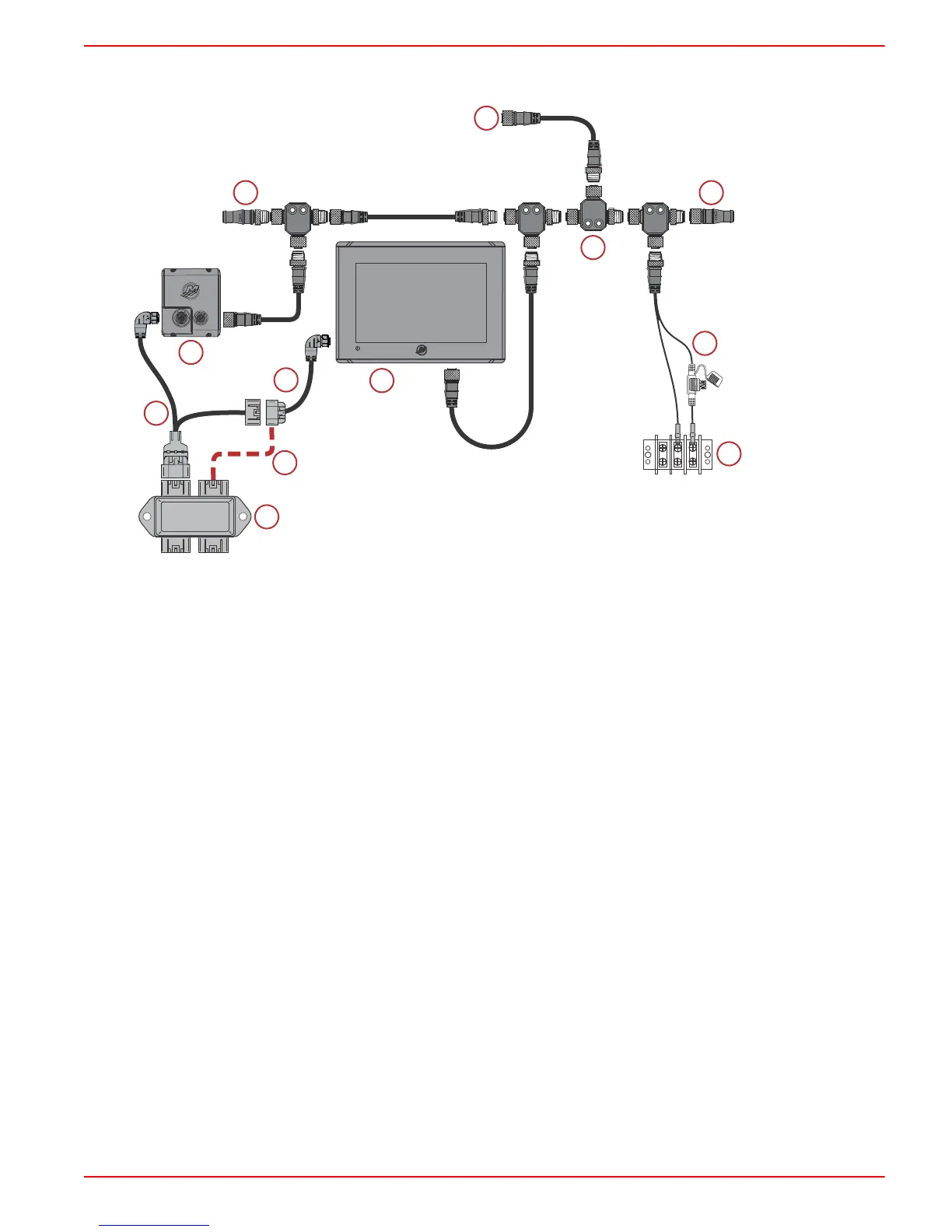

VesselView 903 Connections
a - Optional connection to a chartplotter or multifunction display
b - 120 ohm termination resistor, male
c - 120 ohm termination resistor, female
d - NMEA® 2000 fused power source
e - Power bus
f - NMEA® 2000 T‑connector
g - VesselView 903
h - VesselView Link controller
i - VesselView Link harness
j - Junction box
k - VesselView power harness
l - Optional connection; at second station or when using more than one display per helm
