Meridian DSP5000 User Guide

22
SETTING UP THE DSP
LOUDSPEAKERS

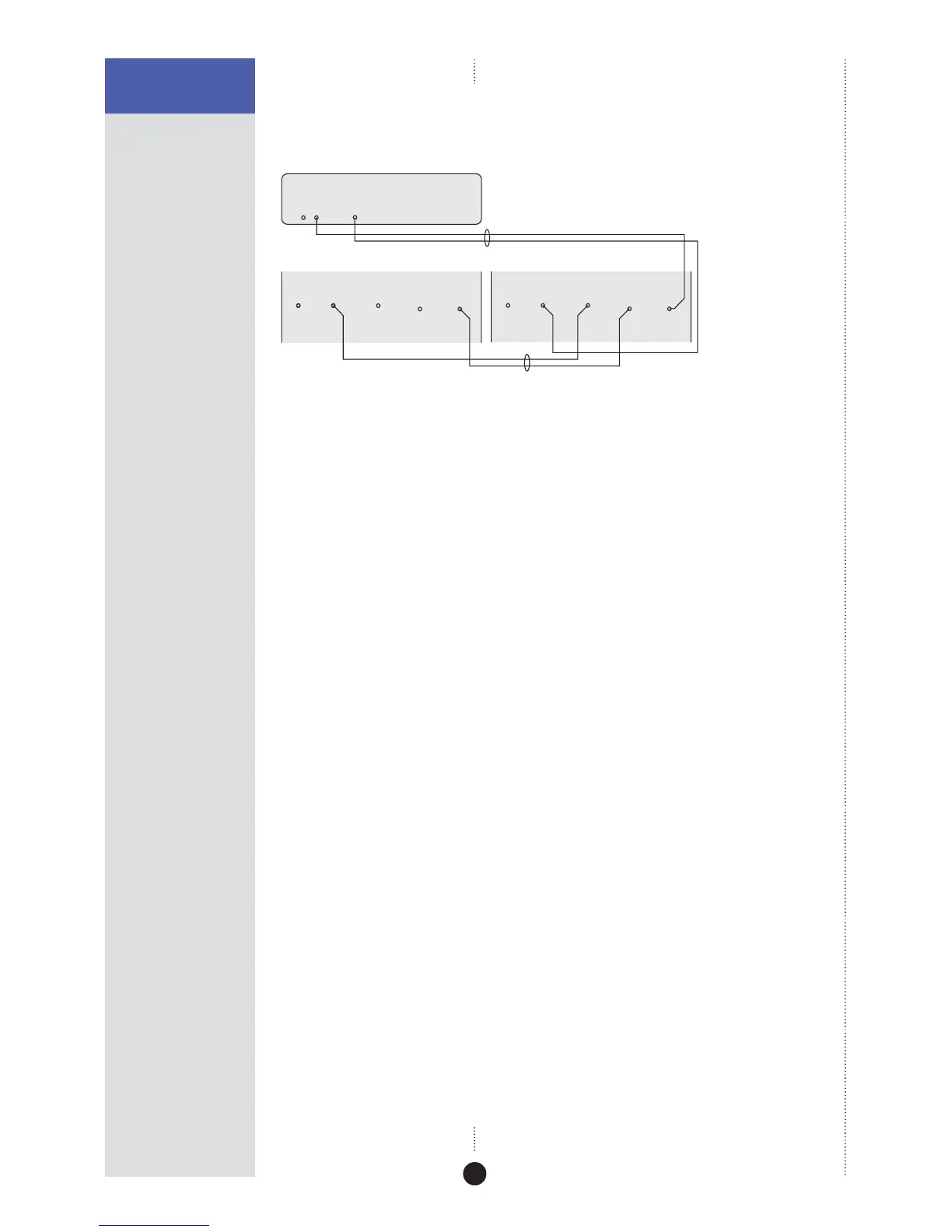

To connect two DSP loudspeakers to a Meridian CD
Player or other digital source
COMMS
OUTPUT INPUT
DIGITAL INPUT
21
DIGITAL
OUTPUT
DIGITAL
OUTPUT
COMMS
DSP loudspeaker – Main R DSP loudspeaker – Main L
M5 lead
588 CD Player
COMMS
OUTPUT INPUT
DIGITAL INPUT
21
DIGITAL
OUTPUT
S5 lead
You can create a complete system by connecting a pair of DSP loudspeakers
directly to a digital source. The DSP loudspeakers include volume, balance,
and tone controls allowing you to control the system using the Meridian
System Remote.
• Connect one of the COMMS sockets on the Meridian source, and the
digital output, to one of the DSP loudspeakers using the M5 lead.
• Link the two DSP loudspeakers together using the S5 lead, as shown in
the illustration.
You can connect another digital source to DIGITAL INPUT 2, and then
configure the appropriate source selection key on the remote to select that
input: see Configuring the sources, page 33.
See the chapter Using the DSP loudspeakers, page 23, for information
about controlling the DSP loudspeakers.
