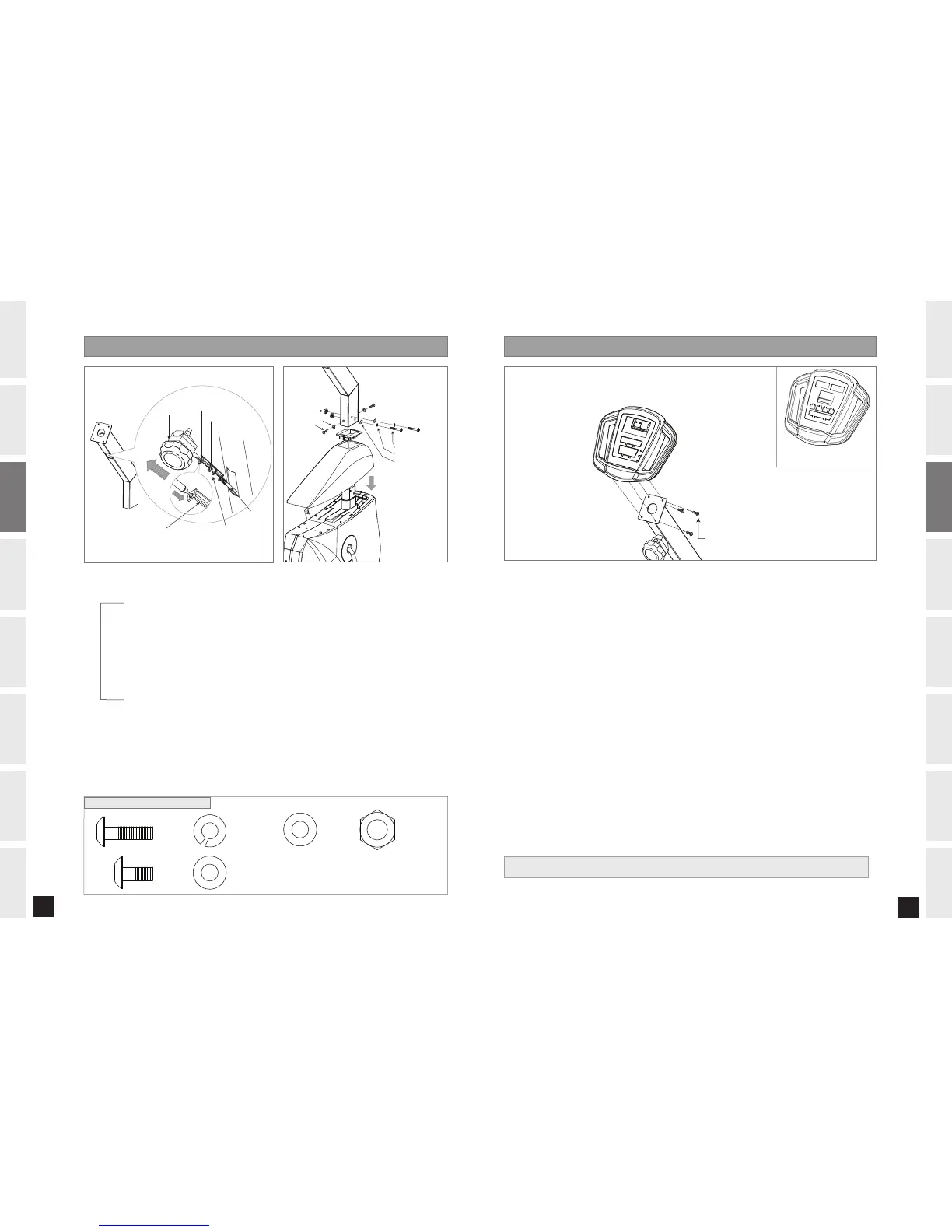

ASSEMBLY S T E P 4 ASSEMBLY S T E P 5
YOU’RE FINISHED!
NOTE: There is NO hardware bag for this step.
A) Attach CONSOLE to the CONSOLE MAST using pre-attached screws.
BOLT (A)
SPRING WASHER (B)
WASHER (C)
NUT (D)
BOLT (E)
WASHER (F)
BOLT (A)
Qty: 2
BOLT (E)
Qty: 2
SPRING WASHER (B)
Qty: 2
WASHER (F)
Qty: 2
WASHER (C)
Qty: 2
NUT (D)
Qty: 2
A) Open HARDWARE BAG FOR STEP 4.
F) Slide the TOP CAP through the MAST. Carefully pull console wires through the CONSOLE MAST. Attach the
CONSOLE WIRES to the pre-attached routing wire. Discard wire when finished.
G) Attach the CONSOLE MAST using 2 BOLTS (A), 2 SPRING WASHERS (B), 2 WASHERS (C), 2 NUTS (D), 2
BOLTS (E) and 2 WASHERS (F).
H) Snap the TOP CAP into place.
RESISTANCE
KNOB
TENSION WIRE RESISTANCE
KNOB BRACKET
TENSION
CABLE
TOP KEY HOLE
BOTTOM KEY HOLE
PRE-ATTACHED SCREWS
920B CONSOLE
A) Pull TENSION CABLE out from square hole in console mast.
B) Turn RESISTANCE KNOB to highest resistance setting. Place the TENSION WIRE into the
BOTTOM KEY HOLE on the RESISTANCE KNOB BRACKET.
C) While holding the RESISTANCE KNOB BRACKET, pull the RESISTANCE KNOB up to slide it
into the TOP KEY HOLE position on the RESISTANCE KNOB BRACKET.
D) Once the TENSION WIRE is in position, turn the RESISTANCE KNOB to the lowest
resistance setting.
E) Slide RESISTANCE KNOB & BRACKET into the CONSOLE MAST and attach using PRE-INSTALLED
BOLT & WASHER.
910B ONLY
RESISTANCE
KNOB
TENSION WIRE RESISTANCE
KNOB BRACKET
TENSION
CABLE
TOP KEY HOLE
BOTTOM KEY HOLE
PRE-ATTACHED SCREWS
720B CONSOLE
HARDWARE BAG FOR STEP 4 CONTENTS :
