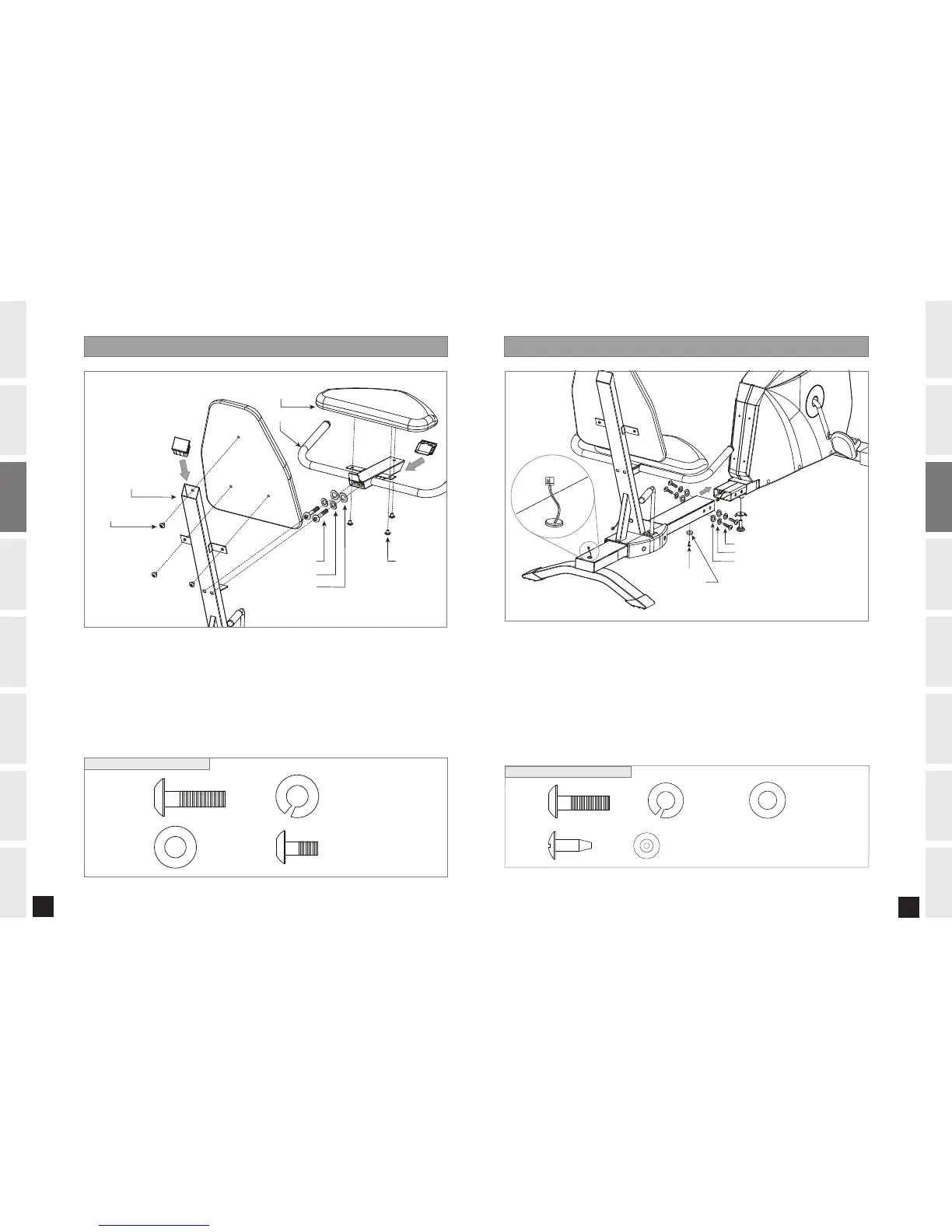

ASSEMBLY S T E P 3ASSEMBLY S T E P 2
A) Open HARDWARE BAG FOR STEP 2.
B) Attach the SEAT BASE to the SEAT BASE SUPPORT using 3 BOLTS (D).
C) Attach the SEAT BASE ASSEMBLY to the REAR SEAT SUPPORT TUBE using 2 BOLTS (A),
2 SPRING WASHERS (B) and 2 WASHERS (C).
D) Attach the SEAT BACK to the REAR SEAT SUPPORT TUBE using 3 BOLTS (D).
E) Insert caps into tube ends.
BOLT (A)
Qty: 2
SPRING WASHER (B)
Qty: 2
WASHER (C)
Qty: 2
BOLT (D)
Qty: 6
HARDWARE BAG FOR STEP 2 CONTENTS :
quantity: 2
25
<C> washer
<Z02> L Wrench
Quantity: 1
quantity: 2
10 .2
<B> spring washer
quantity: 2
<A> M10X1.5PX65L bolt
10.2 x
<D> M8X1.25PX15L bolt
quantity: 6
BOLTS (A)
SPRING WASHERS (B)
WASHERS (C)
BOLTS (D)
SEAT BASE
SEAT BASE SUPPORT
REAR SEAT SUPPORT TUBE
BOLTS (D)
BOLTS (A)
SPRING WASHER (B)
WASHER (C)
720B ONLY
BOLT (E)
SLIDE TUBE STOPPER (F)
BOLT (A)
Qty: 4
SPRING WASHER (B)
Qty: 4
WASHER (C)
Qty: 4
SLIDE TUBE STOPPER (F)
Qty: 1
BOLT (E)
Qty: 1
HARDWARE BAG FOR STEP 3 CONTENTS :
A) Open HARDWARE BAG FOR STEP 3.
B) Attach SLIDE TUBE STOPPER (F) to the SEAT SLIDE TUBE using 1 BOLT (E).
C) Slide the SEAT SUPPORT TUBE through the BASE FRAME.
(920B ONLY) Connect wires from MAST into BASE FRAME and connect to back of SEAT SUPPORT TUBE.
DO NOT PINCH WIRES.
D) Attach the BASE FRAME to the MAIN FRAME using 4 BOLTS (A),4 SPRING WASHERS (B) and
4 WASHERS (C).
