NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
PRE-ASSEM BLY

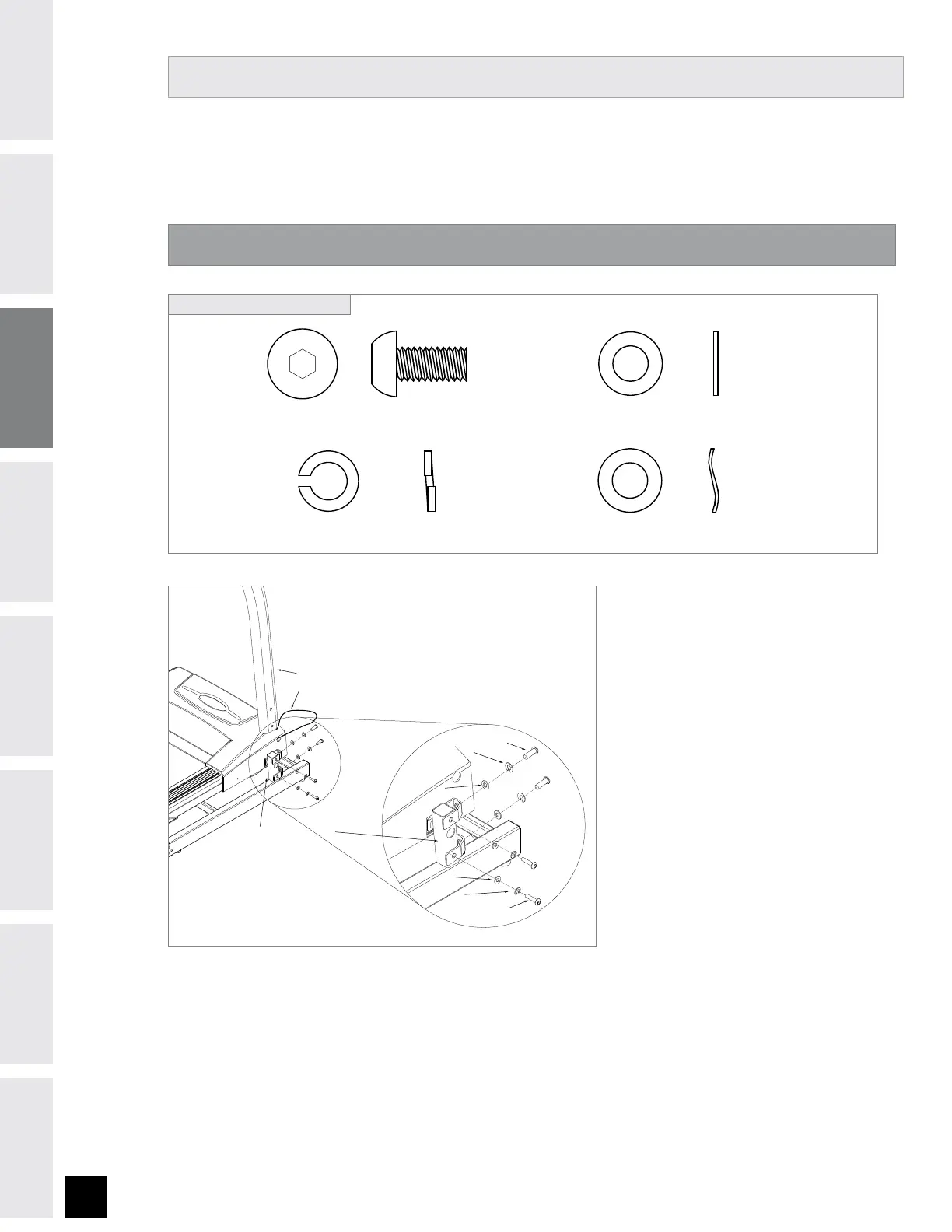

ASSEMBLY STE P 1
Open HARDWARE BAG 1.
Slide the right CONSOLE MAST
down on to the CONSOLE MAST
SUPPORT TUBE. On the front
of the CONSOLE MAST, bolt
in place using 2 BOLTS (A), 2
SPRING WASHERS (B), and 2
ARC WASHERS (D). On the side of
the CONSOLE MAST, bolt in place
using 2 BOLTS (A), 2 SPRING
WASHERS (B), and 2 FLAT
WASHERS (C).
Repeat on other side.
On right side thread CONSOLE
MAST WIRE through CONSOLE
MAST.
A
B
C
D
BOLT (A) 15 mm Qty: 8 FLAT WASHER (C) 15.5 mm Qty: 4
ARC WASHER (D) 17 mm Qty: 4SPRING WASHER (B) 15.4 mm Qty: 8
HARDWARE BAG 1 CONTENTS :
BOLT (A)
BOLT (A)
SPRING WASHER (B)
ARC WASHER (D)
SPRING WASHER (B)
FLAT WASHER (C)
CONSOLE MAST
CONSOLE MAST SUPPORT TUBE
CONSOLE WIRE
