Merit TR3 - Assembly Step 1; Attaching Left Console Mast

10

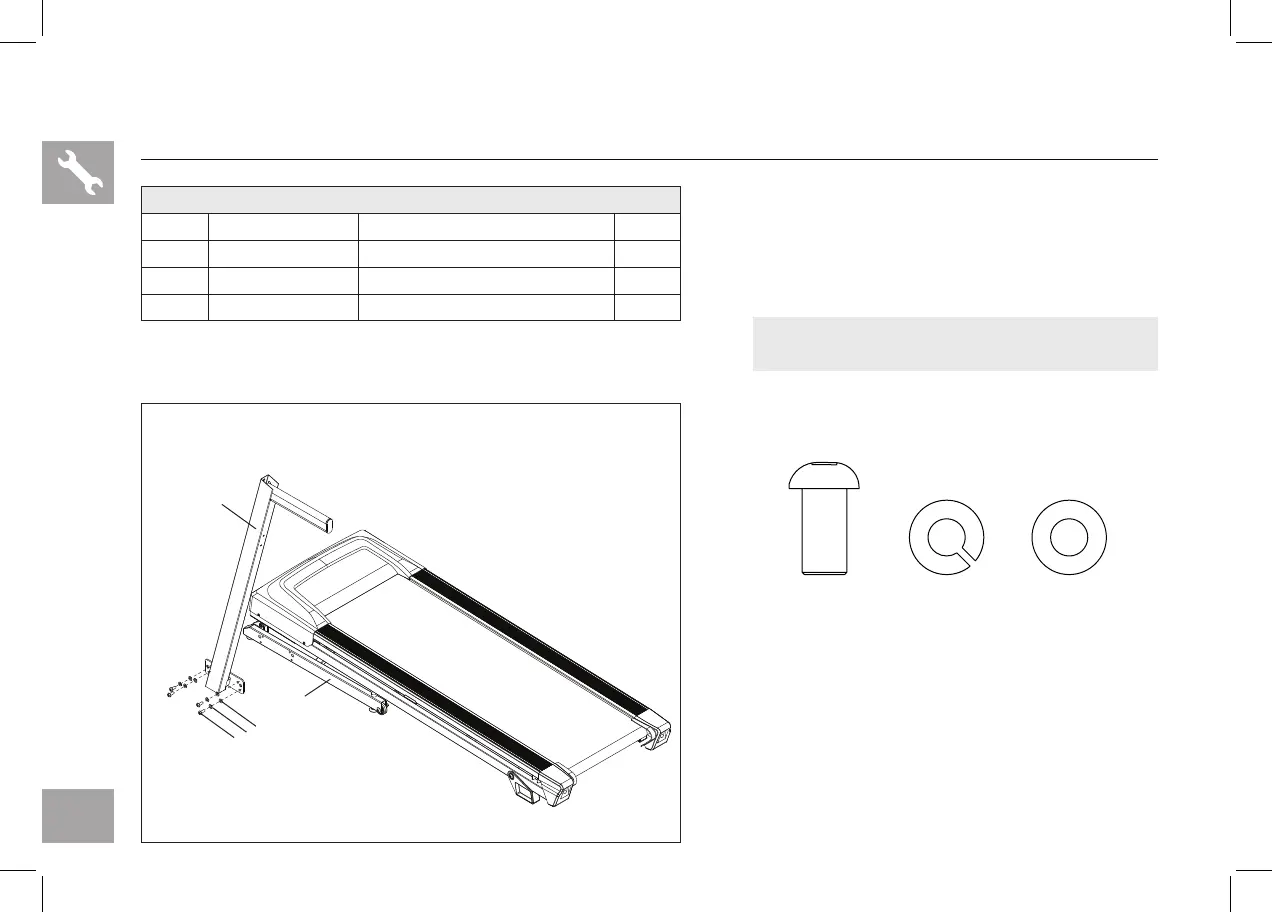

ASSEMBLY STEP 1
A Open HARDWARE FOR STEP 1.
B Attach the LEFT CONSOLE MAST (1) to the
BASE FRAME (3) using 4 BOLTS (A), 4 SPRING
WASHERS (B) and 4 FLAT WASHERS (C).
1
3
A
B
C
NOTE: Do not fully tighten bolts until STEP 4.
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 4A BOLT
8.4X15.5X1.6T
4B SPRING WASHER
8.2X15.4X2T
4C FLAT WASHER
A
B
C
