11

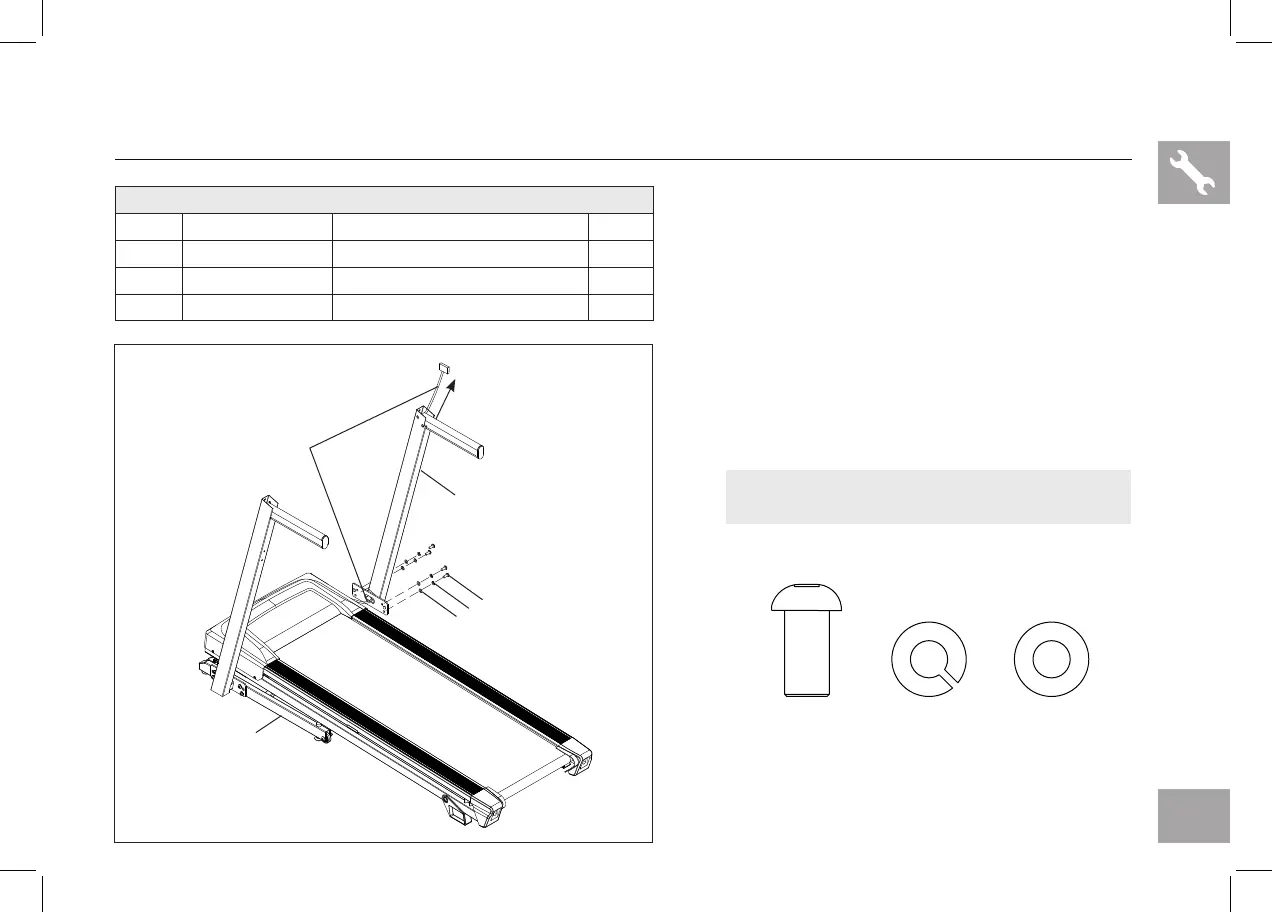

A Open HARDWARE FOR STEP 2.
B Attach LEAD WIRE to bottom end of CONSOLE
CABLE (4). Pull LEAD WIRE through RIGHT
CONSOLE MAST (2). After pulling the lead wire
through the mast, the top of the CONSOLE
CABLE (4) should be located at the top of the
mast.
C Attach the RIGHT CONSOLE MAST (2) to the
BASE FRAME (3) using 4 BOLTS (A), 4 SPRING
WASHERS (B) and 4 FLAT WASHERS (C).
ASSEMBLY STEP 2
NOTE: Do not fully tighten bolts until STEP 4.
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
M8X1.25PX20L 4A BOLT
8.4X15.5X1.6T
4B SPRING WASHER
8.2X15.4X2T
4C FLAT WASHER
A
B
C
A
B
C
2
4
3
