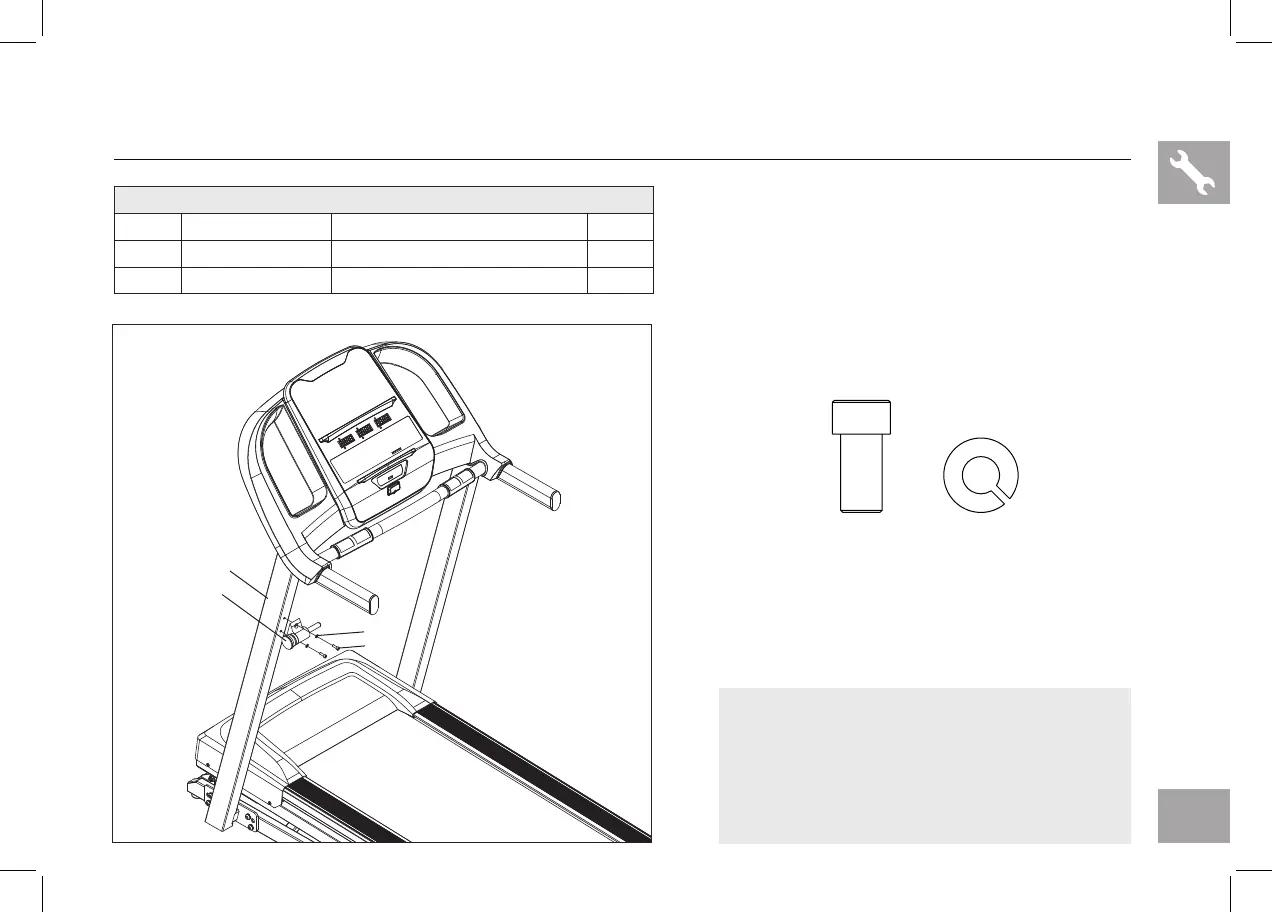

ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Attach the DECK LATCH (6) to the LEFT
CONSOLE MAST (1) using 2 BOLTS (A) and 2
SPRING WASHERS (B).
C REMEMBER to tighten ALL BOLTS & SCREWS
completely now that assembly is finished.
ASSEMBLY COMPLETE!
Before the first use, lubricate the treadmill
deck by following the instructions in the
MAINTENANCE section in the TREADMILL
GUIDE.
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
M5X.8PX15L 2A BOLT
2B SPRING WASHER
5.1X9.3X1.3T
A B
1
6
A
B
