Merlin MT600 - Installation Preparation; Door Types, Tools, and Hardware

A. One-Piece Door with Horizontal Track Only
B. One-Piece Door with Horizontal and Vertical Track –
Special door arm (E, The Chamberlain Arm™) and
The Protector System (29 (9)) are required. See
your dealer.
C. Sectional Door with Curved Track – See 20B –
connect door arm. The Protector System (29 (9) is
required for doors that are over 2.5m in height.
D. Canopy door – Special door arm (E, The
Chamberlain Arm™) and The Protector System (29
(9)) are required. See your dealer
E. The Chamberlain Arm™ for use on door types B
and D.

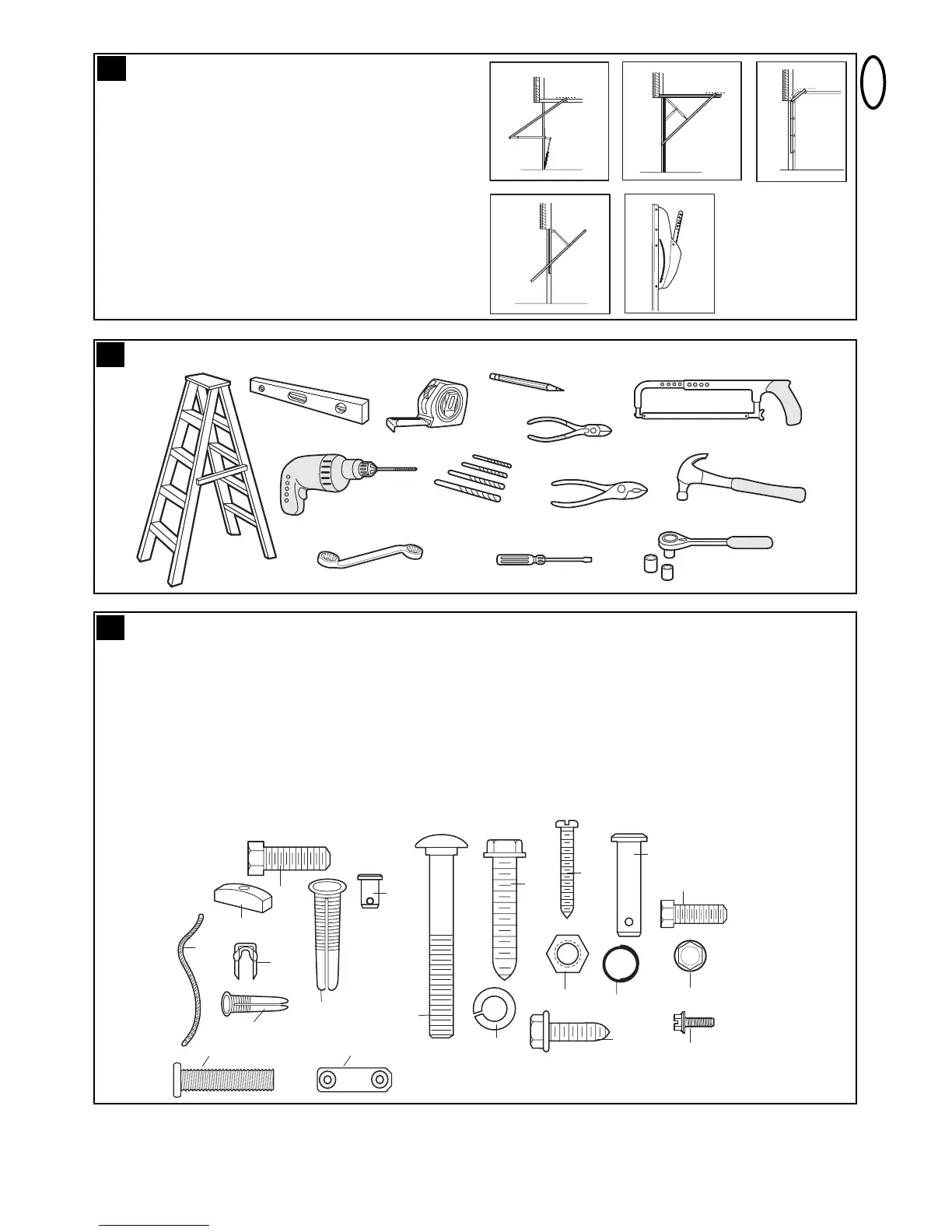

DOOR TYPES
A B
ED
C
1
TOOLS REQUIRED
HARDWARE PROVIDED
(1) Hex Bolt
(2) Clevis Pin
(3) 8mm Carriage Bolt
(4) Wood Screws
(5) Sheet Metal Screws
(6) Clevis Pin
(7) Rope
(8) Handle
(9) Insulated Staples
(10) Anchor
(11) Concrete Anchor
(12) Lock Washer
(13) Hex Nut
(14) Ring Fastener
(15) Hex Bolt
(16) Lock Nut
(17) Metric Tapping Screw
(18) Hex Screw
(19) Stop Bolt
(20) Remote Control Wall Mount Bracket (not all models)
