MERLYN 6 Series Installation Guide

7
8
8.
9
10
9.
8A
8B
4mm
A01S0102
Hex Key is
needed

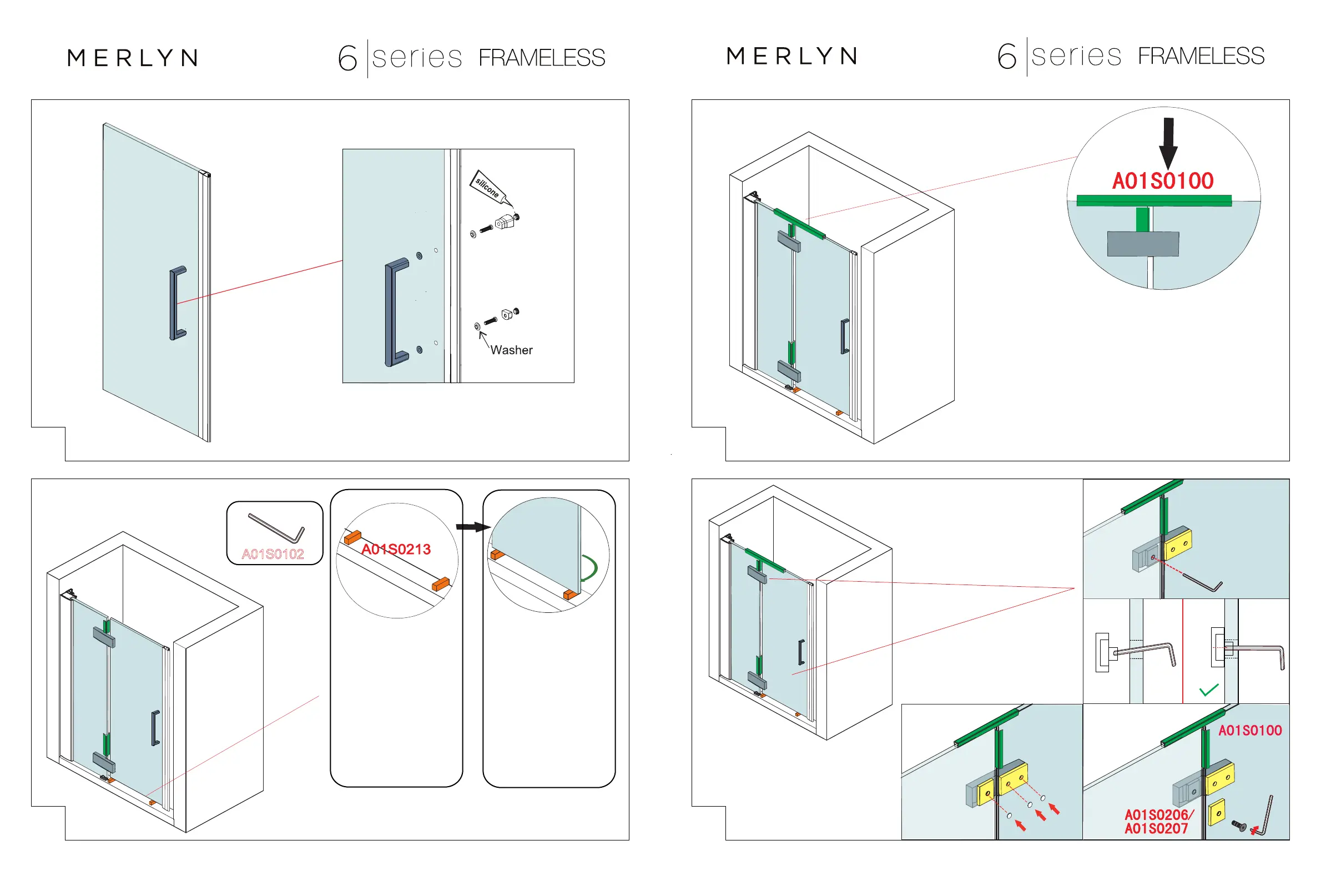

8A: Use the 20mm
spacers A01S0213
to set the height of
the moving panel.
Extra 2mm spacers
are provided to
adjust the height if
required.
8B: From inside the
enclosure place the
moving panel on the
spacers. You will
need the 4mm hex
key, holding seal
A01S0100 and
remaining hinge
parts.
10A
10B
10C
10A: Ensure there are no
gaps between
A01S0100 and the
moving panel.
10B: If needed adjust the
height of the moving
panel with the 2mm
spacers to align the
hinge.
10C: Full tighten the hinge
plate.
×
10D

MERLYN 6 Series Specifications

General

Glass Thickness	6 mm
Style	Modern
Warranty	Lifetime
Finish	Chrome
Type	Shower Enclosure
Material	Glass, Aluminium
Installation Type	Wall Mounted
