MERLYN 8 Series User Manual

8

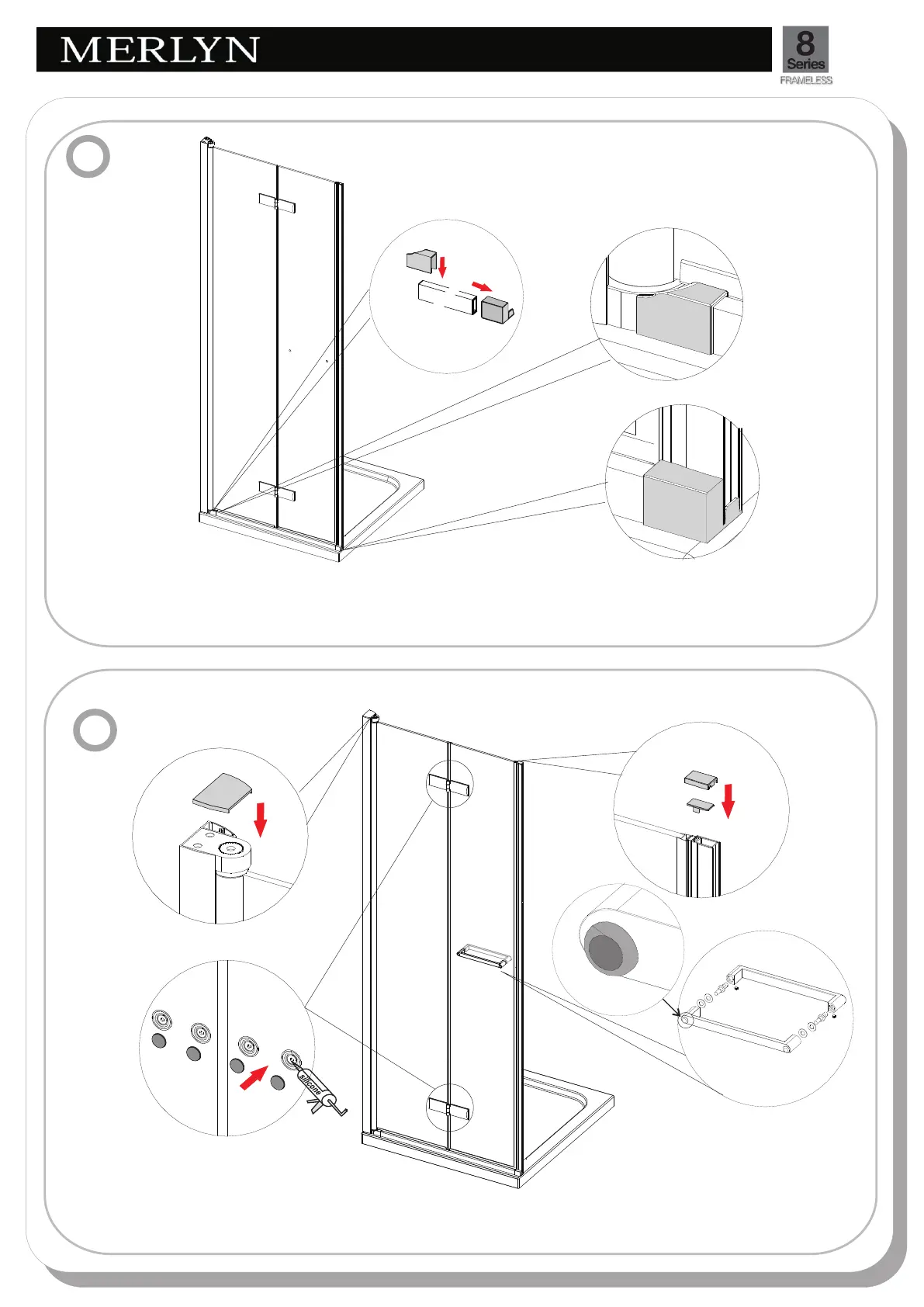

INSTALLATION GUIDE
8
1
2
Place Luna rail into
closing side (1) first,
then fit hinged side
foot plate (2).
M7118
M7119
9
NOTE: Make sure the handle is
fitted with the bump stops facing
to the outside.
M7017
M7115
M7116
M7117
M7120
M7121
WARNING - The bottom frame can only be used when the product is fitted as a Bifold in a recess or with a side
panel. It cannot be used for a showerwall or corner door situation.
The bottom profile must be used to ensure water tightness under the moving panel. We cannot guarantee
water tightness if this is not used.

MERLYN 8 Series Specifications

General

Magnetic Seals	Yes
Glass Thickness	8mm
Finish	Brushed Nickel
Reversible	Yes
Glass Finish	Clear
Frame Finish	Brushed Nickel
Material	Aluminum
Installation Type	Wall Mount
Height	1950mm
