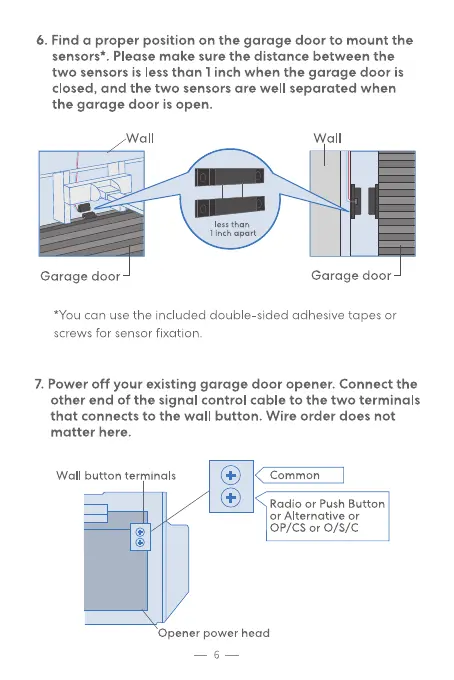

6. Find a proper position on the garage door to mount the
sensors*. Please make sure the distance between the
two sensors is less than 1 inch when the garage door is
closed, and the two sensors are well separated when
the garage door is open.
wall
Garage door
less than
I inch apart
Wall
Garage door
*You can use the included double-sided adhesive tapes or
screws for sensor fixation.
7. Power off your existing garage door opener. Connect the
other end of the signal control cable to the two terminals
that connects to the wall button. Wire order does not
matter here.
Wall button terminals
Radio or Push Button
or Alternative or
OP/CS or O/S/C
Opener power head
To Next Page
