PAGE 35
4 OHM 4 OHM 8 OHM
Partial back view of amplifier
8 Ohm Cabinet
8 Ohm Cabinet
SERIES BOX
16 Ohm
8 Ohm
8 Ohm
16 Ohm Cabinet
13
SAFE MISMATCH

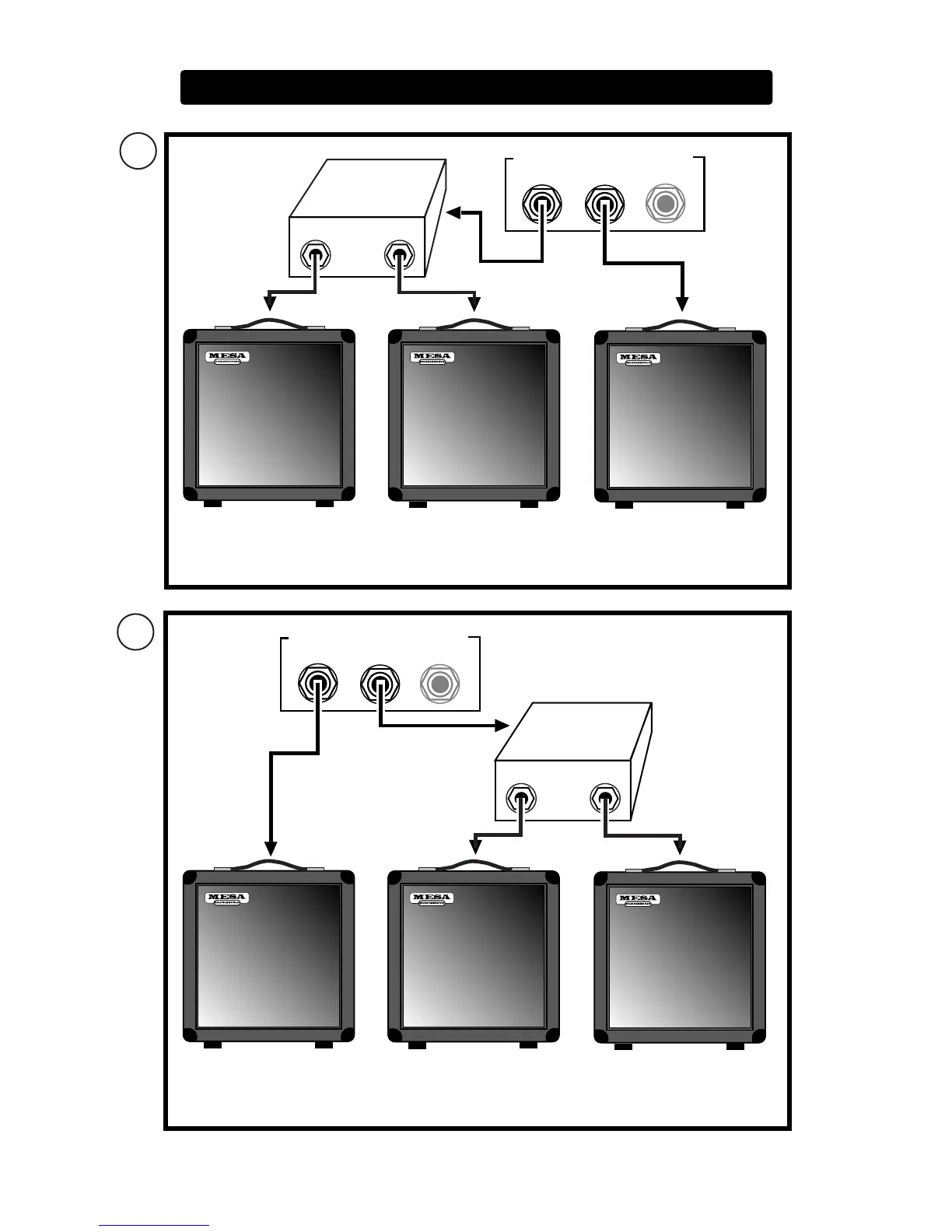

WIRING SCHEMES...Amplifier to Speaker Cabinets
4 OHM4 OHM8 OHM
Partial back view of amplifier
16 Ohm Cabinet
16 Ohm Cabinet
PARALLEL BOX
8 Ohm
16 Ohm
16 Ohm
16 Ohm Cabinet
SAFE MISMATCH
14

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mesa/Boogie DUAL & TRIPLE Rectifier and is the answer not in the manual?

Mesa/Boogie DUAL & TRIPLE Rectifier Specifications

General IconGeneral
Power Output (Dual Rectifier)100 Watts
Power Output (Triple Rectifier)150 Watts
TypeGuitar Amplifier Head
Rectifier TypeTube or Silicon Diode (switchable)
EQ3-Band (Bass, Mid, Treble) per channel
ControlsGain, Treble, Mid, Bass, Presence, Master
Effects LoopSeries (with send/return level controls)
Speaker Outputs (Dual Rectifier)2x4 Ohm, 2x8 Ohm, 1x16 Ohm
Speaker Outputs (Triple Rectifier)2x4 Ohm, 2x8 Ohm, 1x16 Ohm
Channels3 (Clean, Vintage, Modern)
Tubes (Dual Rectifier)6L6 or EL34 (power tubes), 5U4GB (rectifier tubes), 12AX7 (preamp tubes)
