Mesa/Boogie Roadster User Manual

PAGE 29
1
2
5
4
4 Ohm Cabinet
3
8 OHM 4 OHM 4 OHM
Partial back view of
some Mesa amp
8 Ohm Cabinet
SAFE MISMATCH

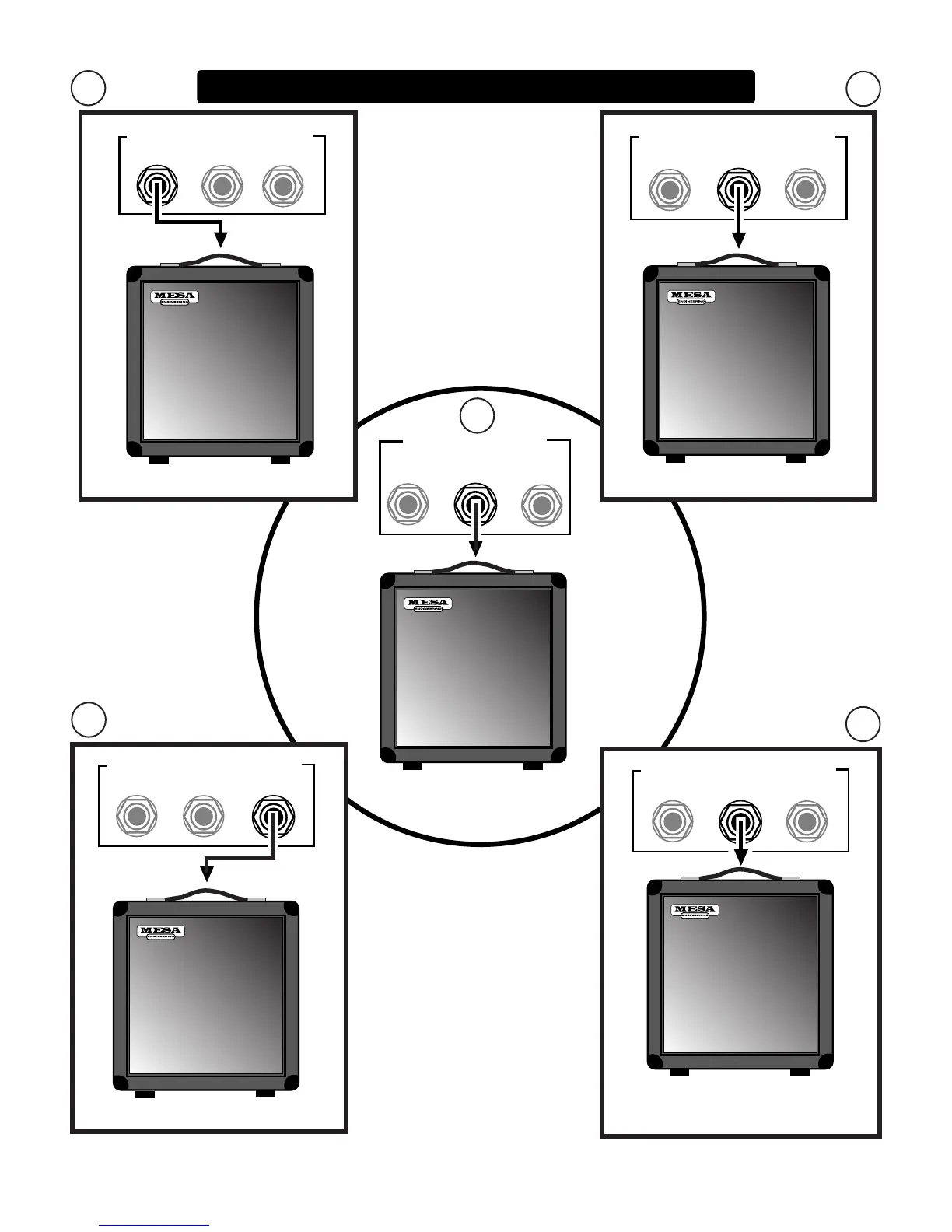

WIRING SCHEMES...Amplifier to Speaker Cabinets
4 OHM 8 OHM 16 OHM
Partial back view of amplifier
16 Ohm Cabinet
4 OHM 8 OHM 16 OHM
Partial back view of amplifier
16 Ohm Cabinet
SAFE MISMATCH
8 OHM 4 OHM 4 OHM
Partial back view of amplifier
8 OHM 4 OHM 4 OHM
Partial back view of amplifier
8 Ohm Cabinet
4 Ohm Cabinet
8 Ohm Cabinet

Mesa/Boogie Roadster Specifications

General

Channels	4
Reverb	Yes
Effects Loop	Yes
Type	Tube
EQ	Treble, Mid, Bass per channel
Footswitch	Yes
Speaker Outputs	4 Ohm, 8 Ohm, 16 Ohm
Speakers	None (head version)
Tubes	5 x 12AX7, 4 x 6L6
Wattage	50W/100W (Switchable per channel)
