PAGE 32
4 OHM 4 OHM 8 OHM
Partial back view of amplifier
8 Ohm Cabinet
8 Ohm Cabinet
SERIES BOX
16 Ohm
8 Ohm
8 Ohm
16 Ohm Cabinet
13
SAFE MISMATCH

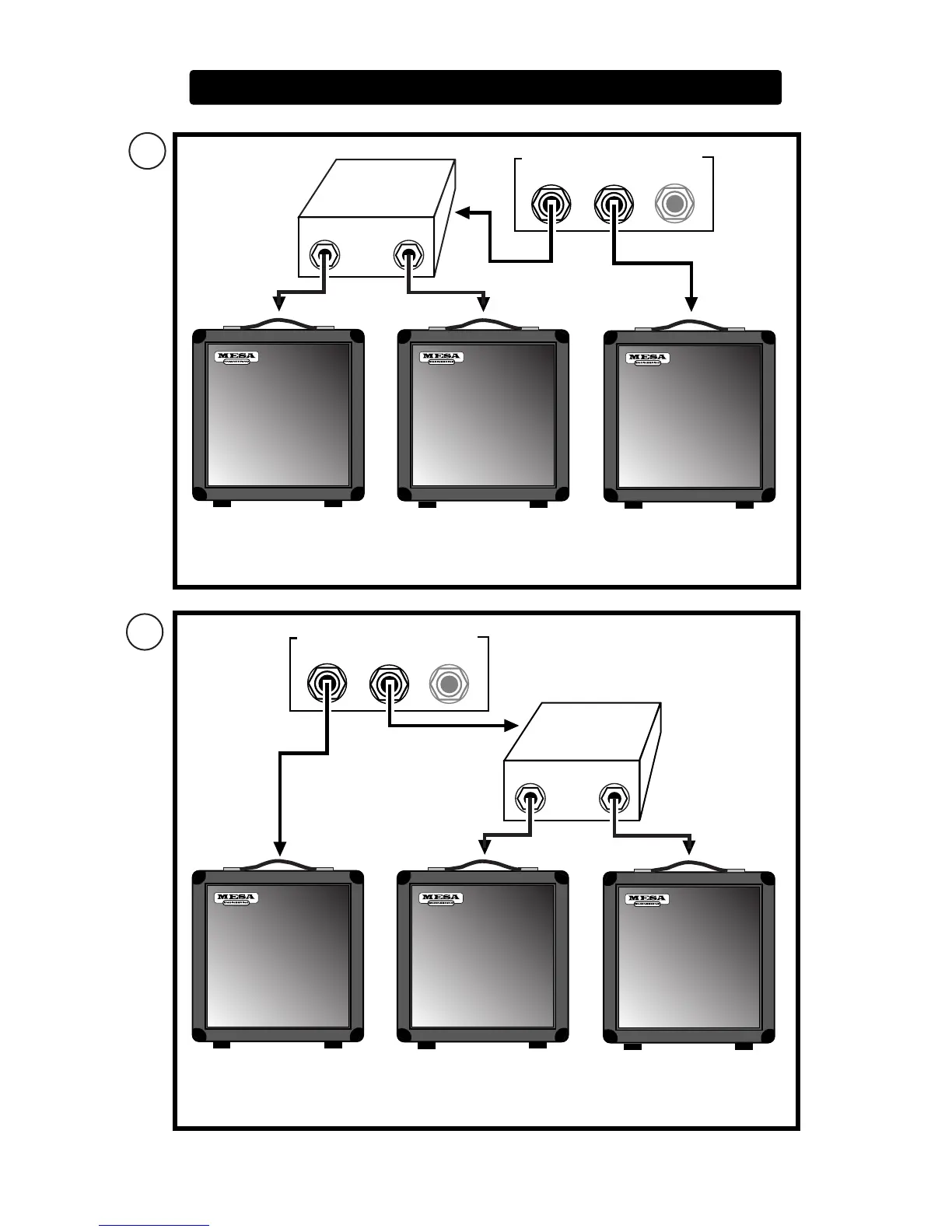

WIRING SCHEMES...Amplifier to Speaker Cabinets
4 OHM4 OHM8 OHM
Partial back view of amplifier
16 Ohm Cabinet
16 Ohm Cabinet
PARALLEL BOX
8 Ohm
16 Ohm
16 Ohm
16 Ohm Cabinet
SAFE MISMATCH
14
