Mesa/Boogie Roadster User Manual

PAGE 38
KNOB pt#408110
ROTARY POT pt# 608100
HOLDER pt# 790347 FUSE(4A) pt# 790403
POT pt#
KNOB pt#
408116
590378
JACK pt#
618356
KNOB #
LENS # 703300
408113

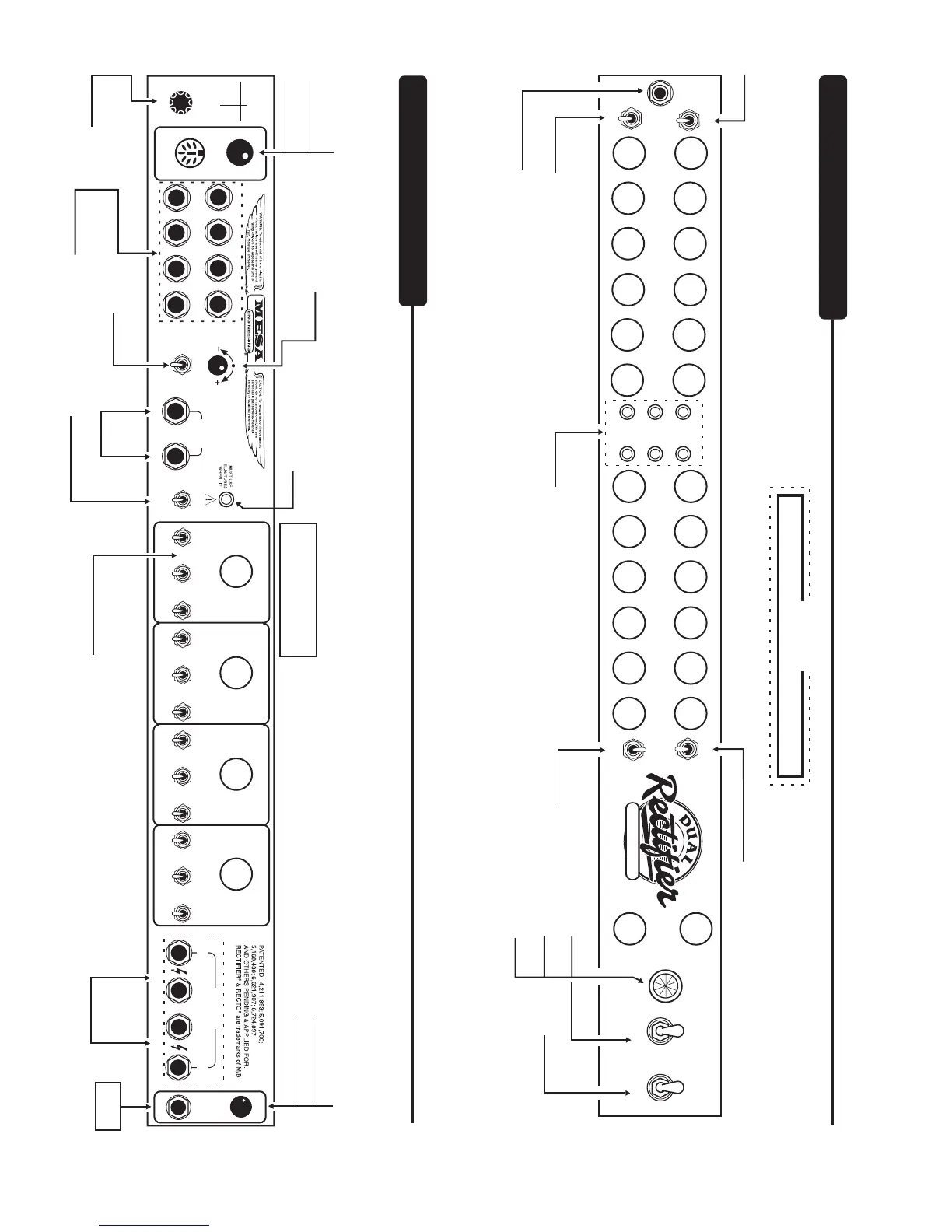

REAR PANEL: ROADSTER
FRONT PANEL: ROADSTER
OUTPUT
SOLO
CLEAN
PUSHED
FAT
CLEAN
PUSHED
FAT
GAIN TREBLE MID BASS PRESENCE MASTER
CH1 CH2 CH4
CH3
LOOP MUTE
GAIN TREBLE MID BASS PRESENCE MASTER
RAW
MODERN
VINTAGE
RAW
MODERN
VINTAGE
BOLD
SPONGY
ON
O
STANDBY
INSTRUMENT INPUT JACK pt# 610120
SWITCH pt#
607313
(6) LENS pt#
703300
SWITCH pt#
ALL KNOBS ON FRONT PANEL CHROME / KNURLED pt# 408110
SWITCH pt#
607313
SWITCH pt#
pt# 600631
pt# 600639
BULB pt# 703047
HOLDER pt# 703850
LENS pt# 703782
NOTE
607313
607313
619112
SWITCH pt# 607200
590792 590792 590792 590792
ROTARY POT #
590736
(12) CHANNEL STRIP
TOGGLE SWITCHES
pt# 607200
(4) REVERB CONTROL KNOBS
pt# 408116
590739 590148 590378
590150 590792 590792 590794 590738 590737 590739 590740 590792
590792 590792
590792
590150590739
590737590738
590794
590792590792590150
590378590148
590739
ROADSTER
FOOT
CONTROLLER
CH 2
CH 1
CH 3
FT
SW
CHANNEL
POWER FUSE
120 V~ 60 Hz 4 A
4 A SLO BLO
FUSE
HANDBUILT
IN PETALUMA
CALIFORNIA, USA
FX LOOP
CH4
CH3
EXT.
SWITCH
CH2
CH1
REVERB SOLO LOOP TUNER OUT
LOOP SYSTEM
ACTIVE
HARD BYPASS
LOOP, OUTPUT &
SOLO CONTROLS
NORMAL
SEND
LEVEL
SEND RETURN
CH 4
6L6
BIAS EL34
REVERB
DIODE
RECTO
TRACKING
100 WATTS
50
WATTS
FX ON
FX
OFF
REVERB
DIODE
RECTO
TRACKING
100 WATTS
50
WATTS
FX ON
FX
OFF
REVERB
DIODE
RECTO
TRACKING
100 WATTS
50
WATTS
FX ON
FX
OFF
REVERB
DIODE
RECTO
TRACKING
100 WATTS
50
WATTS
FX ON
FX
OFF
CH 3
CH 2
CH 1
SLAVE
LEVEL
OUT
(USE WITH TWO 8 OHM CABS)
4 OHM8 OHM
SPEAKERS
4 OHM16 OHM
SWITCH pt# 607200
4 DOUBLE JACKS pt#
619357
JACKS
pt#
(4) SPEAKER
JACKS
pt# 619112

Mesa/Boogie Roadster Specifications

General

Channels	4
Reverb	Yes
Effects Loop	Yes
Type	Tube
EQ	Treble, Mid, Bass per channel
Footswitch	Yes
Speaker Outputs	4 Ohm, 8 Ohm, 16 Ohm
Speakers	None (head version)
Tubes	5 x 12AX7, 4 x 6L6
Wattage	50W/100W (Switchable per channel)
