• Unplug the battery’s negative pole before starting anything.
• The Bluetooth control box must only be installed inside the car. We recom-
mend using Velcro or straps to secure it. Do not make holes in the bodywork
of the car.
• For the positions and connections always check and follow the instructions.
• Bind the system cables with fabric tape so as to avoid any vibrations.
• Never use any quick electrical connections.

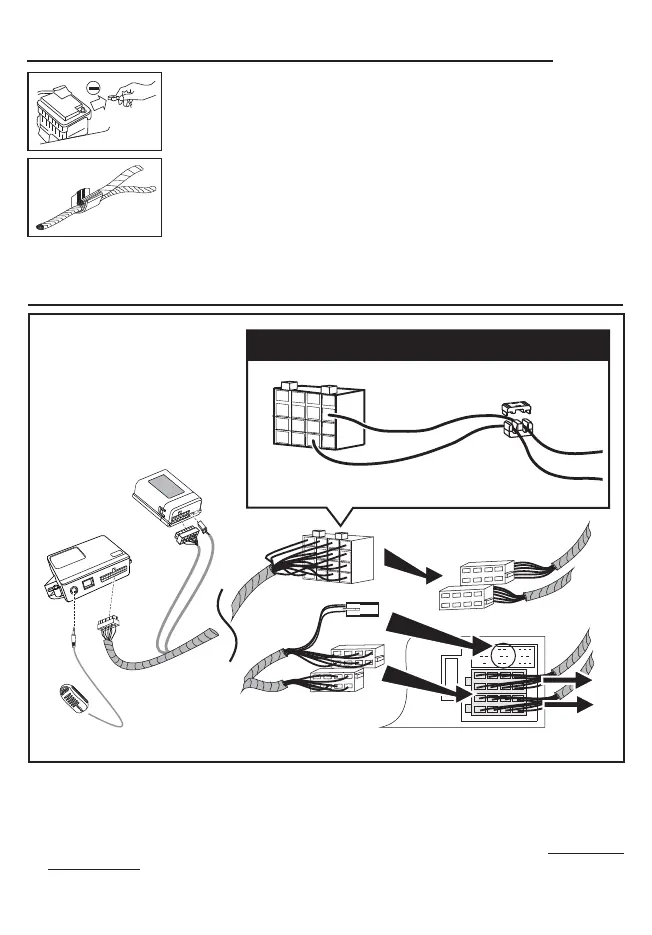

Connecting the dedicated wiring for the audio system with TEL+ and TEL- in-
puts / ISO Connection
1. Remove the original jack plug from the car radio and insert it into the Pin to Pin wiring.
2. Insert the Pin to Pin wiring jack plug into the car radio.
3. Insert the car wiring jack plug into the Pin to Pin wiring.
4. Connect the hands-free unit using the 18 pole MicroFit jack plug.
5. Connect the steering wheel control unit using the 12 pole MicroFIT jack plug and the black 2 pole
AMP jack plug.
6. Program the steering wheel control unit CAN BUS protocol (see dedicated chapter).
Installation instructions
B
D
A
RED
GREEN
FIAT BRAVO
