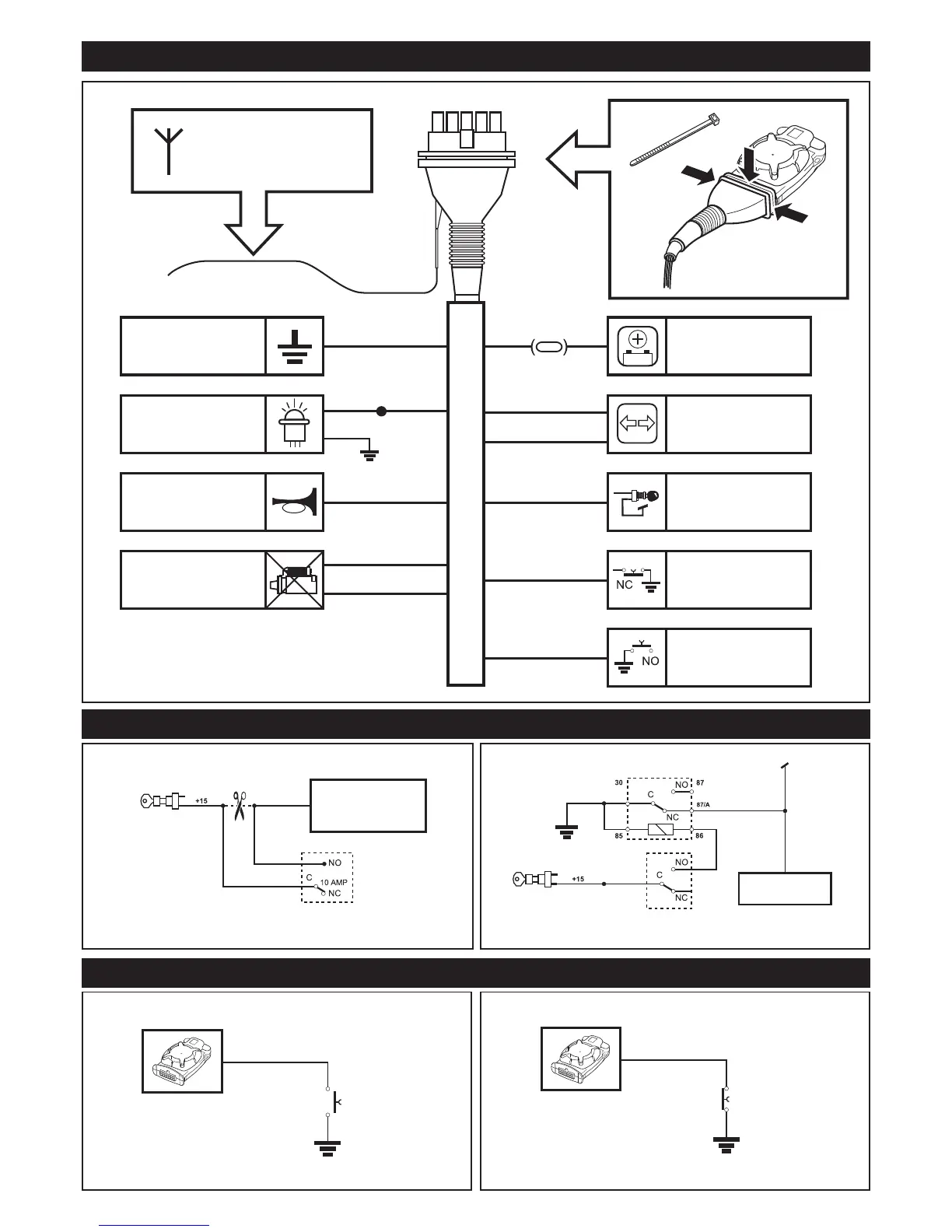

ALARM CONTROL UNIT: GENERAL DIAGRAM
ANTENNA
(do not cut and do not tape
with the rest of the wiring)
BATTERY
NEGATIVE
(-)
LED
HORN RELAY
NEGATIVE COMMAND
IGNITION
BLOCK
BATTERY
POSITIVE
(+12V)
TURN
SIGNALS
Install
15A fuse
RED
LIGHT BLUE
ORANGE
YELLOW/GREEN
PURPLE
BLUE (C)
GREY (NO)
BROWN
WHITE
BLACK
LIGHT BLUE
IGNITION KEY
POSITIVE POLE
(+15)
PROTECTION AGAINST CUT-
OFF OF EXPOSED CONDUCTIVE
PARTS
(CONNECT TO CONDUCTI-
VE PARTS IF NOT USED)
PROTECTION FOR
CONTACT WITH
EXPOSED CONDUCTIVE
PARTS
ALARM CONTROL UNIT: IGNITION BLOCK (FAIL SAFE SYSTEM)
ALARM CONTROL UNIT: PERIPHERAL PROTECTION
IGNITION CONTROL UNIT,
COIL, FUEL PUMP...
DEFCOM 30
CONTROL UNIT
RELAY
COIL
FROM THE
MAGNET
ADDITIONAL
RELAY
DEFCOM 30
CONTROL UNIT RELAY
IGNITION
KEY
BLOCK
IGNITION
KEY
BLOCK
BLUE
GREY
BLUE
GREY
BUTTON TO
BE INSTALLED
BUTTON TO
BE INSTALLED
YELLOW/GREEN
PURPLE
4
RED
BLACK
