OPERATION MANUAL
e electrical and hydraulic circuits of your machine are designed to
allow operation with maximum safety. e following precautions are
available on the machine for enhanced safety.
e Emergency stop button (engaging type) is found on the foot switch
control unit. Once the button has been pressed to reset the emergency
stop, the red button must be rotated to reset the stop.
2.2. FEATURES OF THE MACHINE:
Foot pedal control
e foot pedals are used to activate the clamping mechanism
Main Controls

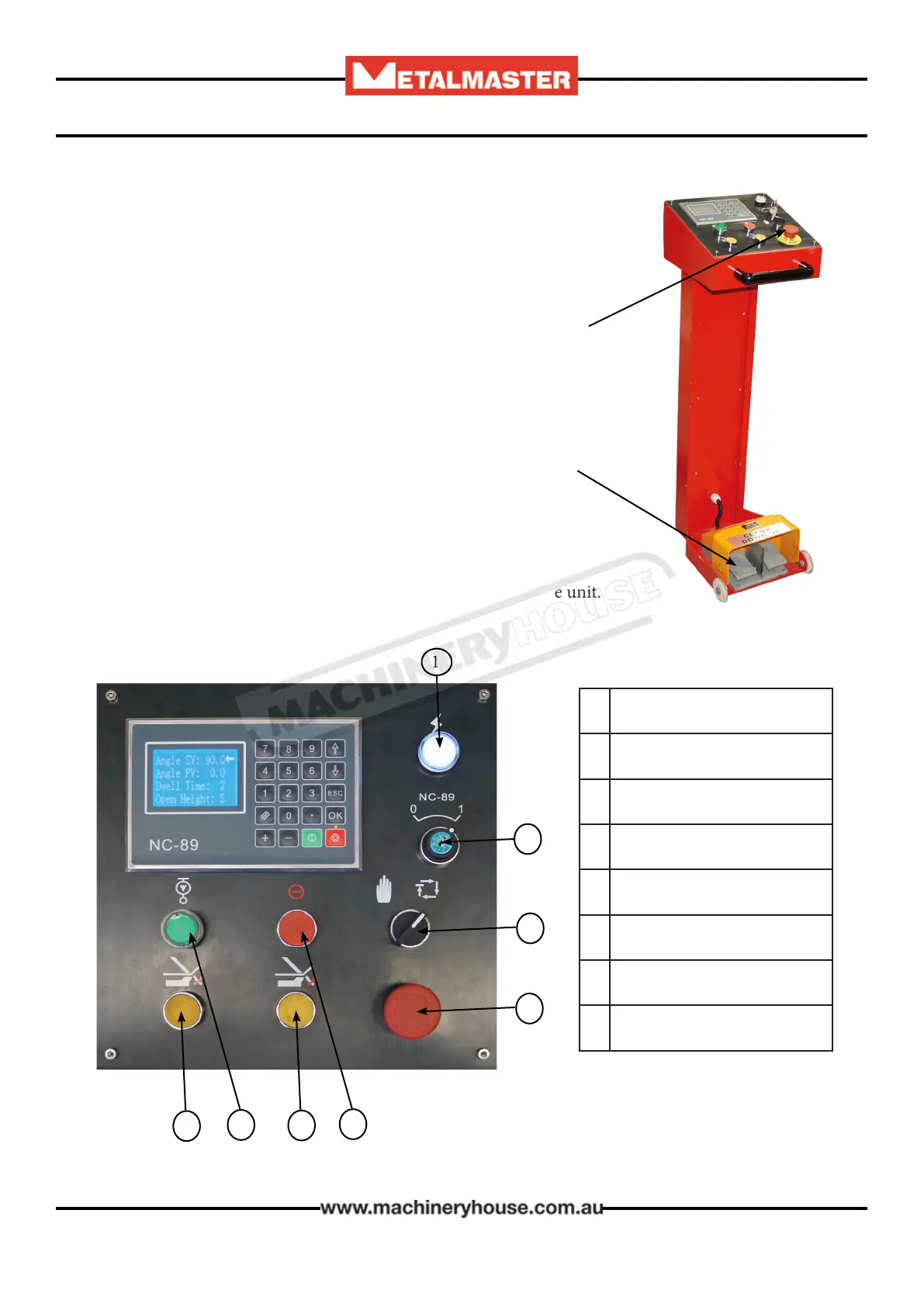

e main machine operating controls are located on the mobile unit.
1
2
3
4
5
6
8
7
1 Power ON Light
2 Switches on the Controller
3 Manual or Cycle mode
4 Emergency Stop
5 Apron UP
6 Pump ON
7 Apron Down
8 Pump OFF
Instructions Manual for PB-460 (S581B)
