DX LCD Display
iii








76 mm /
3.0 in.
20 mm /
0.79 in.
∅
6 x 30 mm /
∅
0.24 x 1.18 in.

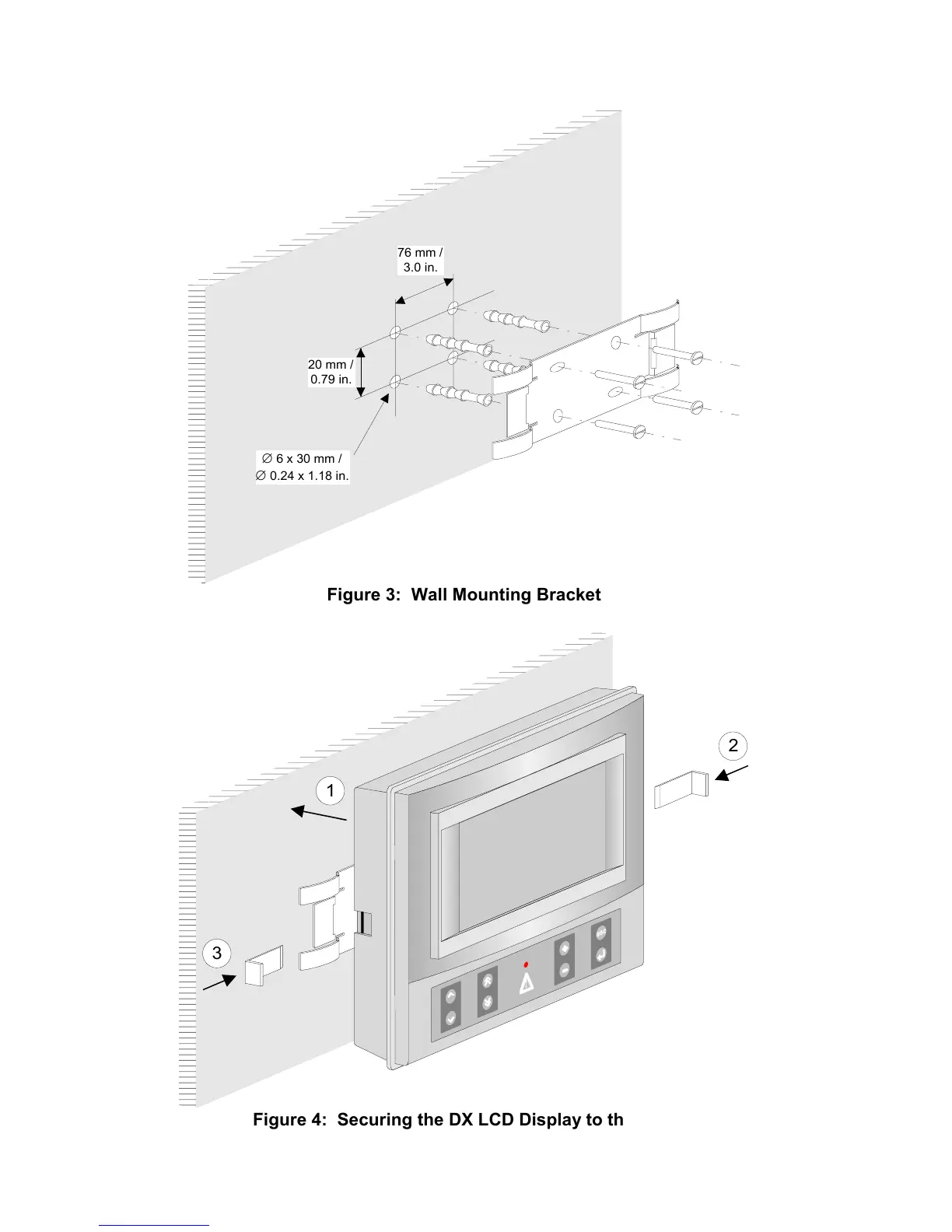

Figure 3: Wall Mounting Bracket




















2
1
3
Figure 4: Securing the DX LCD Display to the Wall
